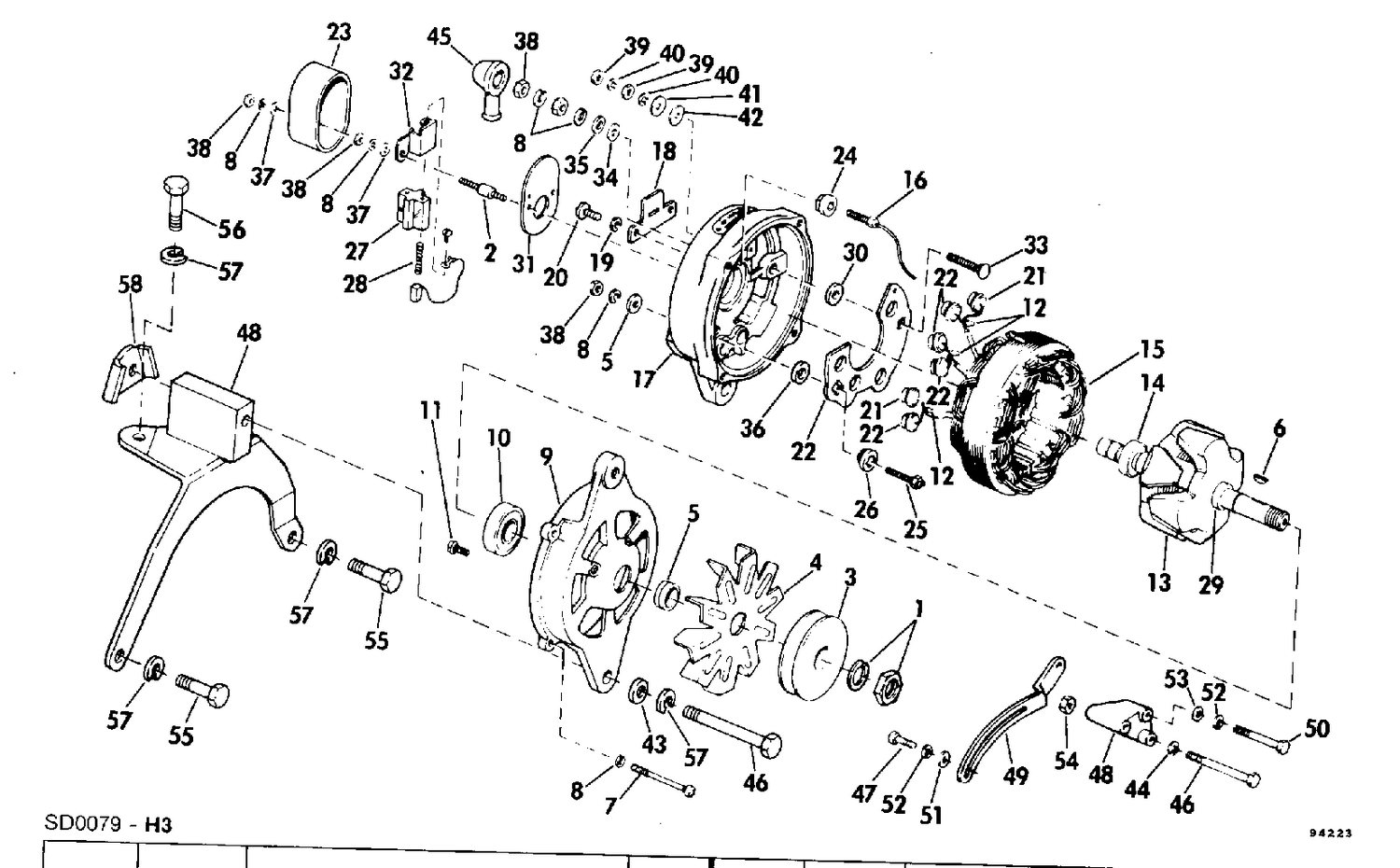

| Ref | Part Number | Description |
|---|
| 1 |
0982275 |
NUT & L'WASHER ASSY |
| 2 |
0909174 |
STUD, Cover slip ring |
| 3 |
0311312 |
PULLEY, Drive |
| 4 |
0312485 |
FAN, Ventilating |
| 5 |
0312487 |
RETAINER, Felt washer |
| 6 |
0311315 |
KEY, Rotor shaft |
| 7 |
0980184 |
THRU BOLT PACKAGE |
| 9 |
0381468 |
HD ASSY, Drive end |
| 12 |
0382009 |
EVELET PACKAGE |
| 13 |
0981182 |
ROTOR & BEARING ASSY |
| 15 |
0382003 |
RECTIFIER,Positive |
| 17 |
0981183 |
HD ASSY, Slip ring end |
| 20 |
SCREW,Insul,#10-32 |
Ref: 21 0980294 . RECT SET, Neg 0980294 |
| 22 |
0383897 |
PL & RECT ASSY, Pos |
| 23 |
0909127 |
COVER, Slip ring |
| 27 |
0382005 |
BR HLDRS ASSY |
| 29 |
0312486 |
RETAINER, Felt washer |
| 31 |
0313047 |
PL, Back-up, br bldr |
| 43 |
0910319 |
SPACER, Brace to steering pump This part replaces 0910004. |
| 44 |
0120177 |
L'WASHER, Alternator to brkt |
| 46 |
0311391 |
SCR,Altnr to brkt |
| 47 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 48 |
0909637 |
BRACKET, Alternator |
| 48 |
0982135 |
BRACKET,Alternator |
| 48 |
0982546 |
BRACKET, Alternator |
| 49 |
0312776 |
BRACE, Alternator |
| 49 |
0909972 |
BRACE,Alternator |
| 49 |
0910294 |
BRACE, Alternator |
| 50 |
0306836 |
SCR,Altnr brkt |
| 55 |
0306836 |
SCR,Altnr brkt |
| 56 |
0306834 |
BOLT, Throttle lever retainer |
| 57 |
0120177 |
L'WASHER, Alternator to brkt |
| 0981187 |
0981187 |
ALTERNATOR ASSEMBLY |
