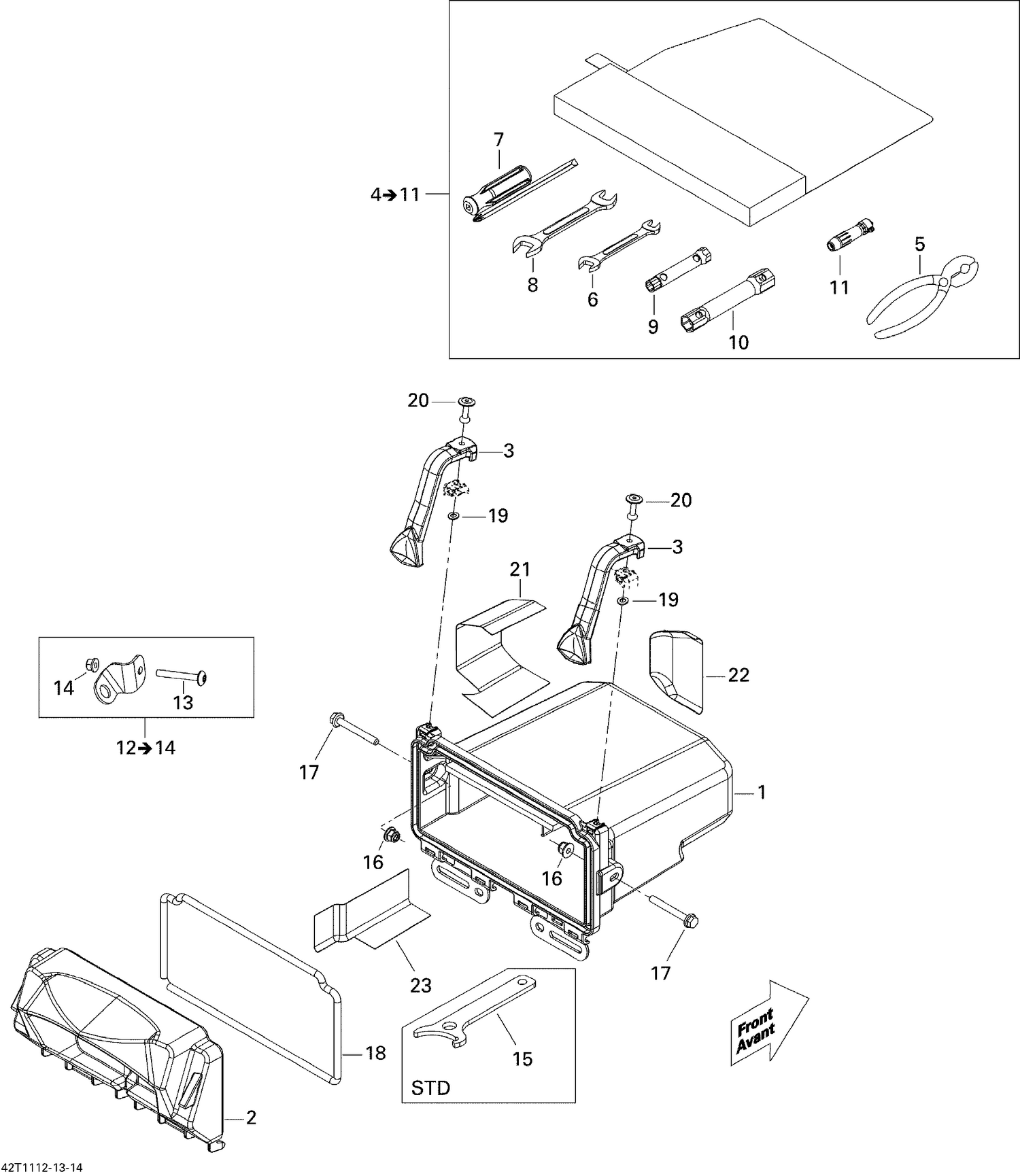

| Ref | Part Number | Description |
|---|
| 1 |
708200141 |
STORAGE BOX - Call your local BRP dealership |
| 2 |
708200140 |
Storage Box Cover |
| 3 |
517302448 |
Panel Latch |
| 5 |
Not |
Available As Spare Part - Pliers |
| 6 |
Not |
Available As Spare Part - Fork Wrench 10/13 mm |
| 7 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Fork Wrench 15/17 mm |
| 9 |
529014900 |
Socket Wrench 10/13 mm |
| 10 |
Not |
Available As Spare Part - Socket Wrench 16/18 mm |
| 11 |
529000052 |
PRESSURE GAUGE - Call your local BRP dealership |
| 13 |
250000215 |
Torx Screw M6 X 45 |
| 14 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 16 |
233261434 |
Flange Elastic Nut M6 |
| 17 |
207665034 |
HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership |
| 18 |
708200077 |
NEOPRENE SEAL - Call your local BRP dealership |
| 19 |
250200081 |
FLAT WASHER - Call your local BRP dealership |
| 20 |
293150100 |
Pop Rivet 3/16" |
| 21 |
708200087 |
FRONT REFLECTIVE SHEET - Call your local BRP dealership |
| 22 |
708200088 |
REFLECTIVE SHEET - Call your local BRP dealership |
