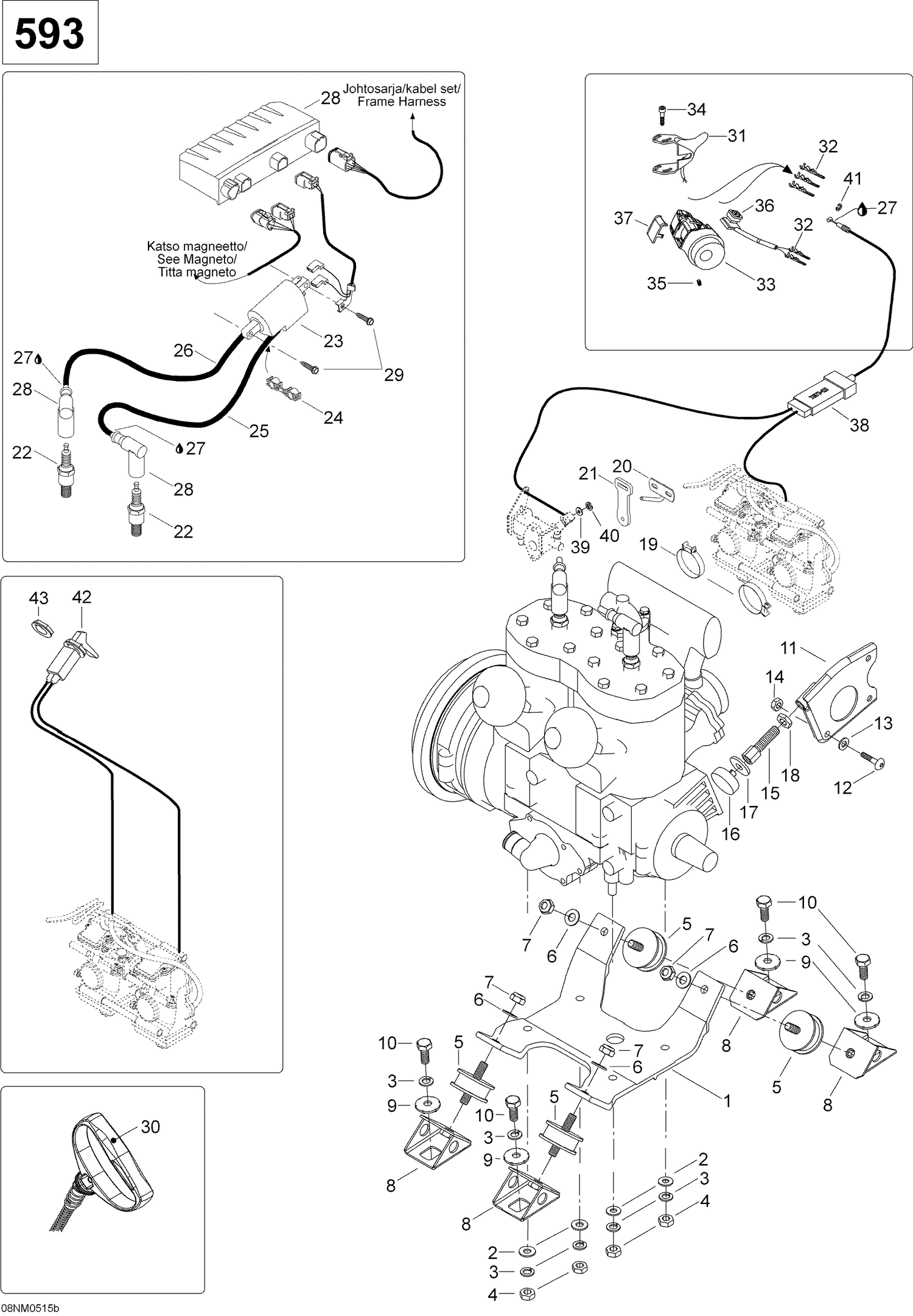

| Ref | Part Number | Description |
|---|
| 1 |
512059488 |
ENGINE SUPPORT - Call your local BRP dealership |
| 2 |
20105 |
Washer hardened A10,5 |
| 3 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 4 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 5 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 6 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 7 |
33012 |
Elastic stop nut M10 |
| 8 |
512050900 |
Engine support |
| 9 |
512056700 |
Lock washer |
| 10 |
40040 |
Hex. screw M10 x 25 |
| 11 |
512058500 |
Support plate |
| 12 |
40344 |
Socket head screw M8 x 25 |
| 13 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 14 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 15 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 16 |
512059056 |
Stopper |
| 17 |
20023 |
Washer |
| 18 |
33218 |
Jam nut M12 |
| 19 |
512059835 |
Clamp |
| 20 |
512059504 |
Support |
| 21 |
512059372 |
CARBURETOR LATCH - Call your local BRP dealership |
| 22 |
512059533 |
Spark Plug NGK BR9ECS-5 |
| 23 |
512059512 |
Ignition coil |
| 24 |
410914600 |
Lock washer |
| 25 |
512059696 |
Spark plug wire 375 mm This part replaces 512059485. |
| 26 |
512059486 |
CABLE ASSY, 455 MM - Call your local BRP dealership |
| 27 |
293550004 |
Dielectric-grease, 150g |
| 28 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 29 |
40375 |
Screw 6,3 x 25 |
| 30 |
572084400 |
Grip |
| 31 |
512059481 |
Throttle Handle This part replaces 512059107. |
| 32 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 33 |
512059763 |
THROTTLE HOUSING - Call your local BRP dealership |
| 34 |
732601143 |
Screw |
| 35 |
414440800 |
Socket Set Screw M8 X 10 |
| 36 |
515175410 |
Switch kill |
| 37 |
572100901 |
Cover |
| 38 |
512059679 |
THROTTLE CABLE - Call your local BRP dealership |
| 39 |
234081100 |
Flat Washer 8 mm This part replaces 414753300. |
| 40 |
414753500 |
Circlip This part replaces 31035. |
| 41 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 42 |
512059110 |
CHOKE CABLE - Call your local BRP dealership |
