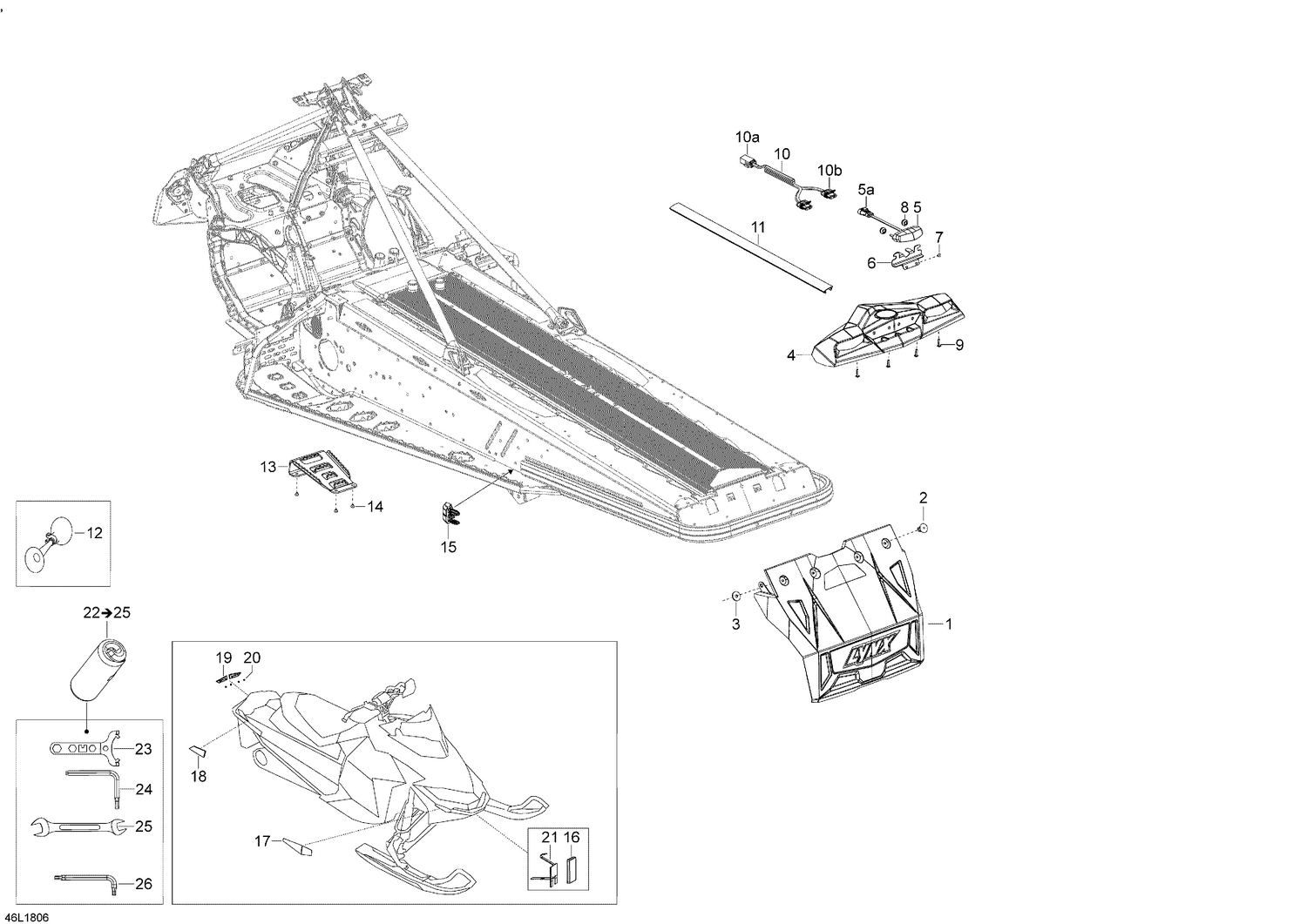

09- Utilities Adventure - 600 ACE
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001189 | Snow Guard |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 517124300 | Washer |
| 4 | 511000863 | Light Cover |
| 5 | 520001302 | Rear Light |
| 6 | 520001375 | Rear Light Support |
| 7 | 390909200 | Avex Rivet |
| 8 | 293720101 | Grommet |
| 9 | 250000759 | Torx Truss Pt K40 X 16 |
| 10 | 515178115 | Harness |
| 11 | 520000829 | Radiator Trim |
| 12 | 549011291 | Horn |
| 13 | 520001208 | Black Rear Footrest |
| 14 | 293150102 | Rivet 3/16" |
| 15 | 520000964 | Black LH Cap |
| 15 | 520000965 | Black RH Cap |
| 16 | 21118 | Reflector (Bright) |
| 17 | 520001351 | RH Reflector-Front |
| 17 | 520001352 | LH Reflector-Front |
| 18 | 705007154 | Yellow, RH Reflector |
| 18 | 705007155 | Yellow, LH Reflector |
| 19 | 705007156 | Red, RH Reflect-Rear |
| 19 | 705007157 | Red, Reflect-Rear LH |
| 20 | 732610072 | Push Nut |
| 21 | 520001452 | Reflector Mount |
