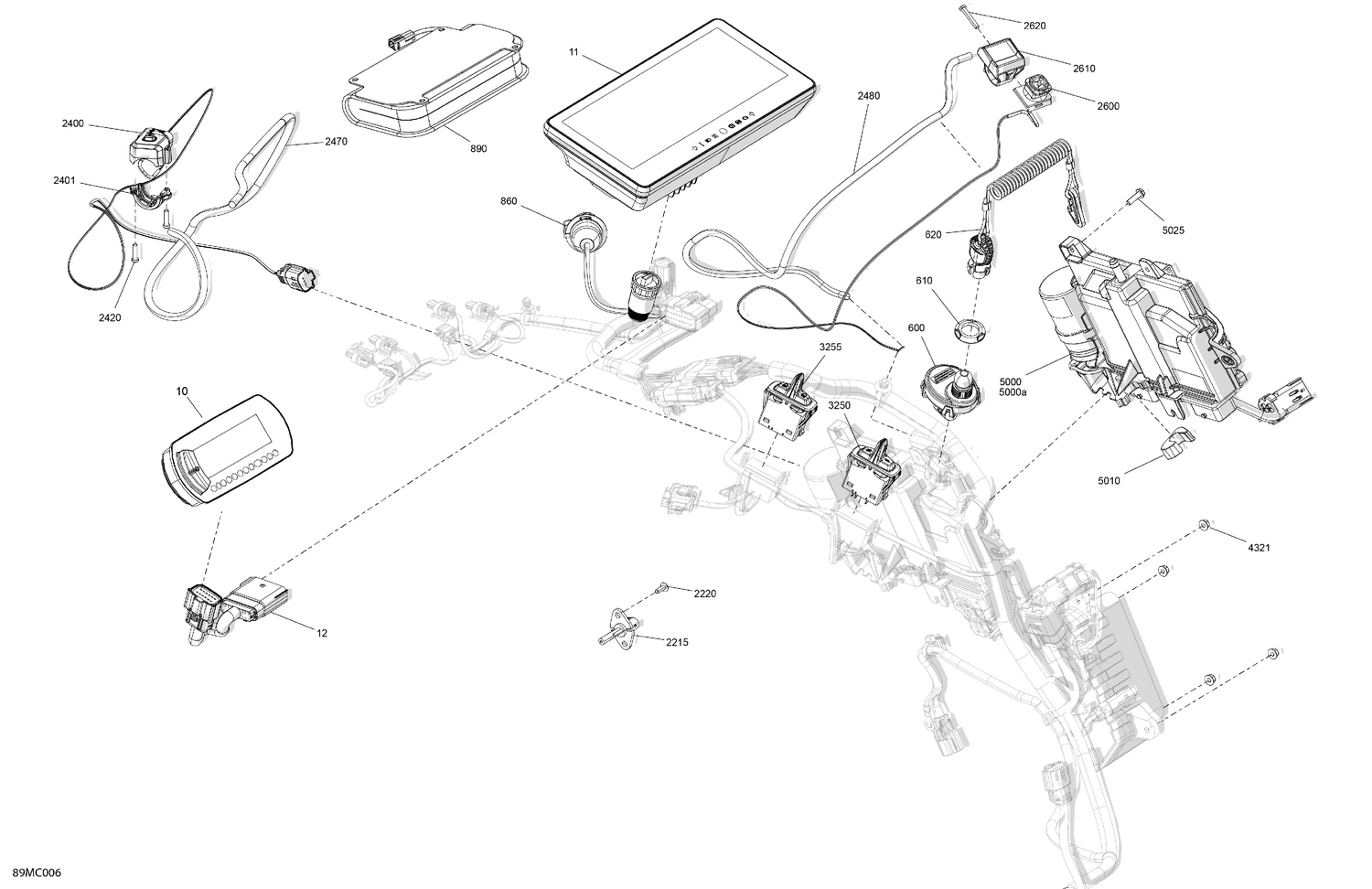

08- Electric - Upper Section
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 600 | 710006855 | Ignition Switch |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 2215 | 515176366 | Air Temperature Sensor |
| 2220 | 250001131 | Torx Truss PT K40 x 12 |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515178859 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 4321 | 233151414 | Hex. Flange Nut M5 |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
