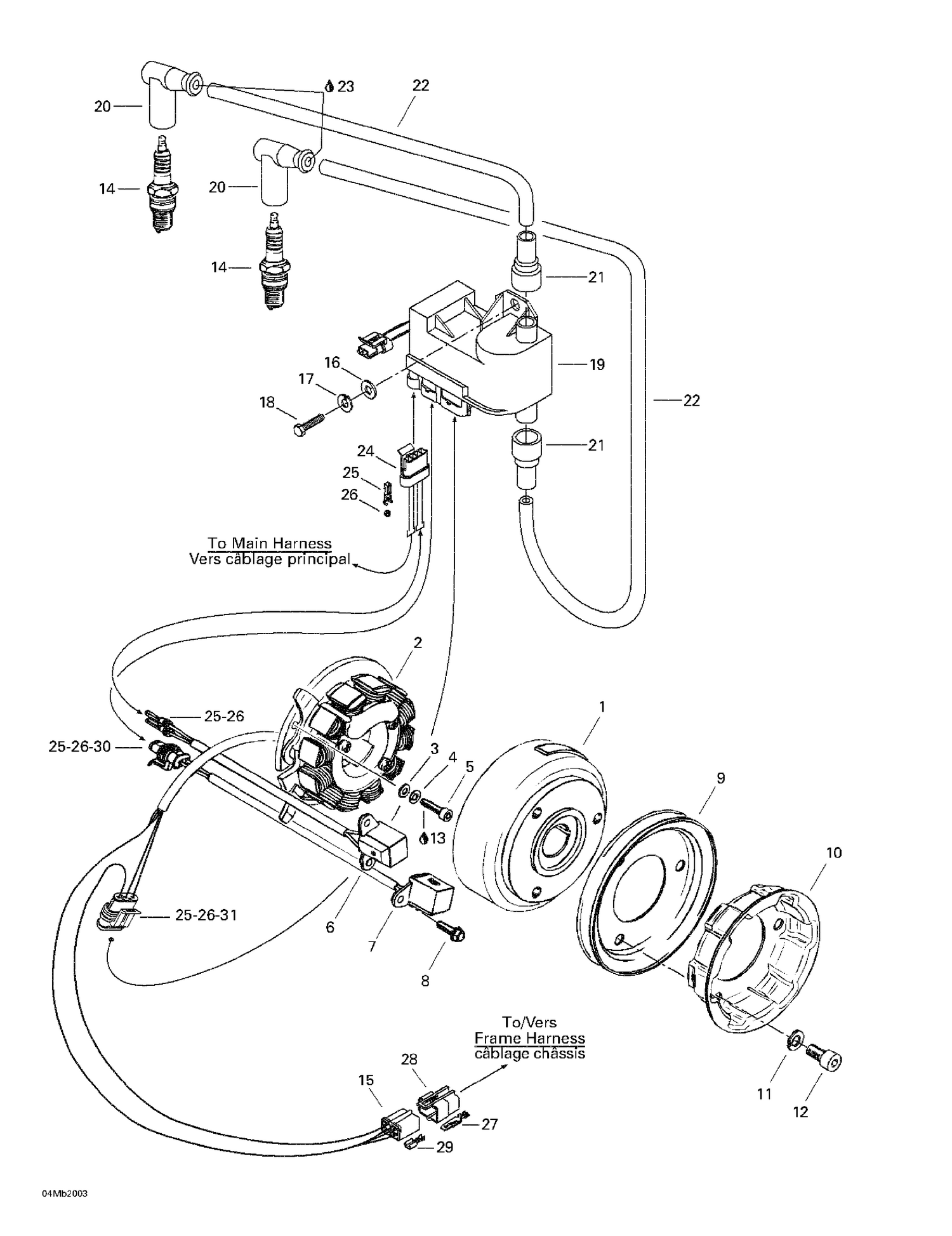

| Ref | Part Number | Description |
|---|
| 1 |
420996824 |
Flywheel |
| 2 |
420886603 |
STATOR PLATE A - Call your local BRP dealership |
| 3 |
420927574 |
Washer 5.3 This part replaces 420927571. |
| 4 |
420945750 |
Lock Washer |
| 5 |
420840515 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 6 |
420665163 |
Pick-Up This part replaces 420966547. |
| 7 |
420665160 |
PICK-UP - Call your local BRP dealership This part replaces 420966545. |
| 8 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 9 |
420980486 |
V-Belt Pulley |
| 10 |
420852414 |
Rope Sheave |
| 11 |
420845311 |
Lock Washer |
| 12 |
420841522 |
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership This part replaces 420841521. |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 15 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 16 |
234061410 |
Flat Washer 6 mm |
| 17 |
234161471 |
Lock Washer M6, Black |
| 18 |
207161644 |
Hex. Screw M6 X 16 |
| 20 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 21 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 22 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 23 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 24 |
409209700 |
Female Housing, 4 Circuits |
| 25 |
278001014 |
Female Terminal |
| 26 |
278001013 |
Wire Seal |
| 27 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 28 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 29 |
515175253 |
FEMALE TERMINAL - Call your local BRP dealership |
| 30 |
409209500 |
Female Housing, 2 Circuits |
