| Ref | Part Number | Description |
|---|
| 3 |
0317290 |
BRACKET, Port, rear |
| 4 |
0330253 |
HOOK Front |
| 5 |
0317291 |
BRACKET, Starboard, rear |
| 8 |
0434173 |

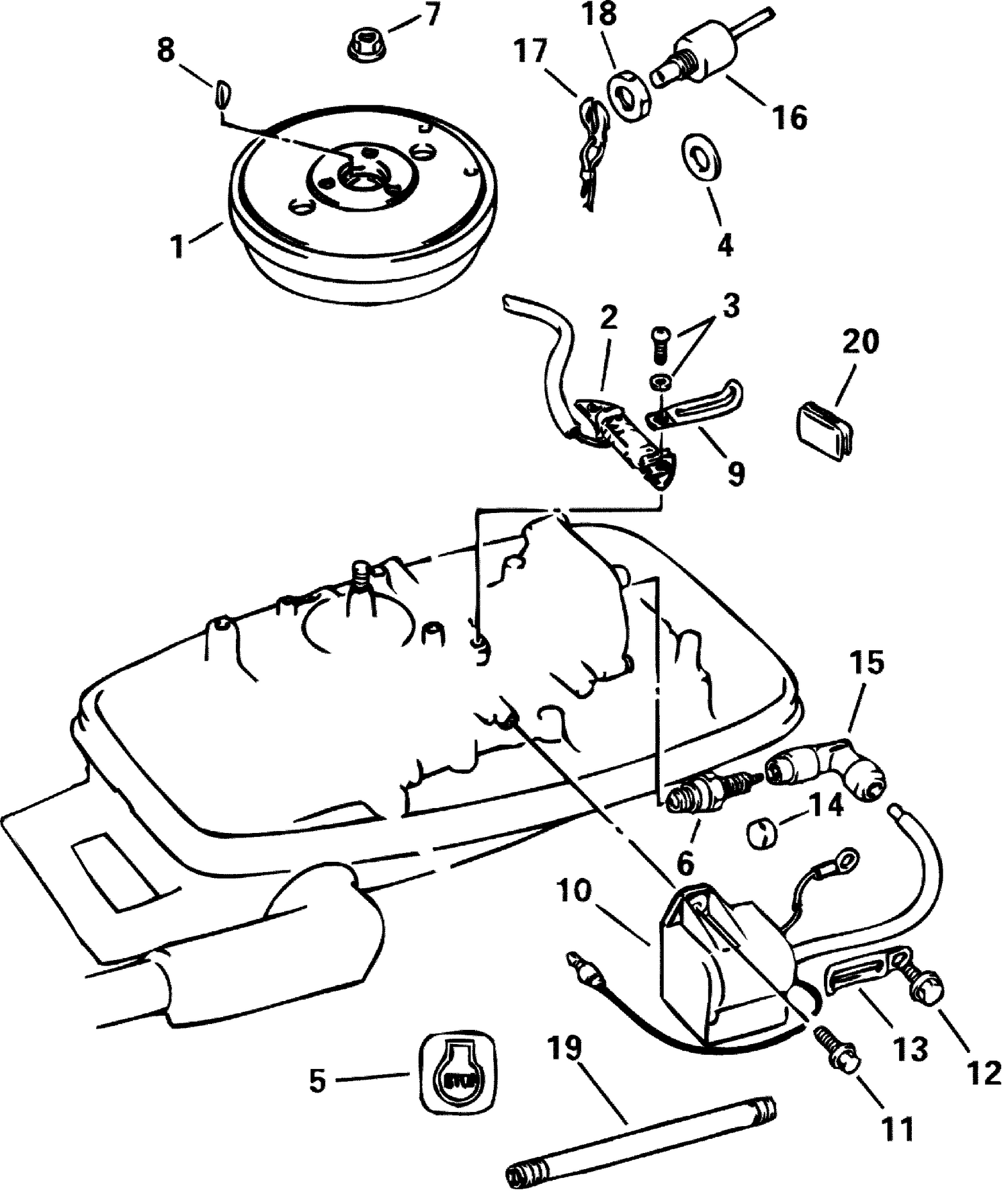

ENGINE COVER, Lower |
| 18 |
0331634 |
BAGUE, câble d'accélérateur |
| 19 |
0302406 |
SLEEVE |
| 21 |
0333739 |
RETAINER, Fuel hose to cover |
| 22 |
0310539 |
SCREW, Clamp choke solenoid |
| 23 |
0393334 |
CONNECTEUR, carburant - mâle |
| 26 |
0313839 |
BRACKET, Cover, port |
| 27 |
0584472 |
ENSEMBLE FILS, masse |
| 28 |
0313840 |
BRACKET, Cover, starboard |
| 29 |
0329236 |
CLAMP, Primer pump |
| 30 |
0320521 |
GROMMET |
| 32 |
0329240 |
SCREW |
| 33 |
0909533 |
SCREW, Pressure relief valve cover |
| 37 |
0329241 |
RONDELLE |
| 39 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
