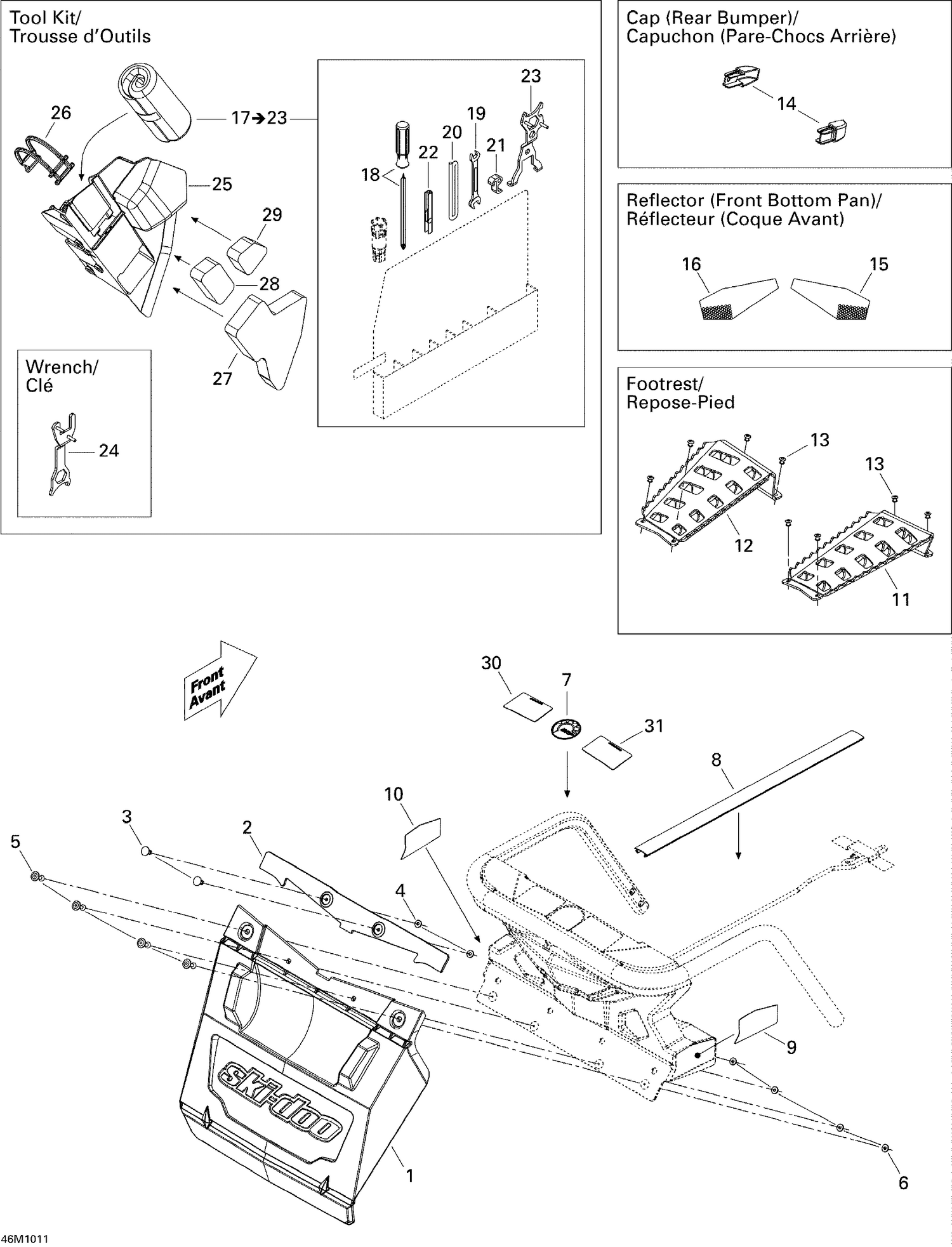

09- Utilities
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000659 | Snow Guard |
| 2 | 520000953 | ESTHETIC PLATE - Call your local BRP dealership |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 6 | 517124300 | Washer |
| 7 | 219903305 | BRP Logo 48 mm This part replaces 219902544. |
| 8 | 520000829 | Radiator Trim |
| 9 | 520000881 | Red, RH Rear Reflector |
| 10 | 520000880 | Red, LH Rear Reflector |
| 11 | 520000887 | RH Footrest |
| 12 | 520000888 | LH Footrest |
| 13 | 390402200 | Pop Rivet 3/16" |
| 14 | 520000567 | Full Moon Cap |
| 15 | 520000718 | Yellow, RH Front Reflector |
| 16 | 520000719 | Yellow, LH Front Reflector |
| 18 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 19 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 20 | 219704403 | Was 412500100 Rope-Starter |
| 21 | 529000060 | Starter Grip This part replaces 529019400. |
| 22 | 529035501 | Spacing Tool |
| 23 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership This part replaces 520000956. |
| 24 | 520000721 | WRENCH - Call your local BRP dealership |
| 25 | 520000842 | Tool Kit Rack |
| 26 | 520000528 | Latch |
| 27 | 520001059 | Foam This part replaces 520000743. |
| 28 | 520001061 | Foam This part replaces 520000753. |
| 29 | 520001062 | Foam This part replaces 520000754. |
| 30 | 516003934 | WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership |
