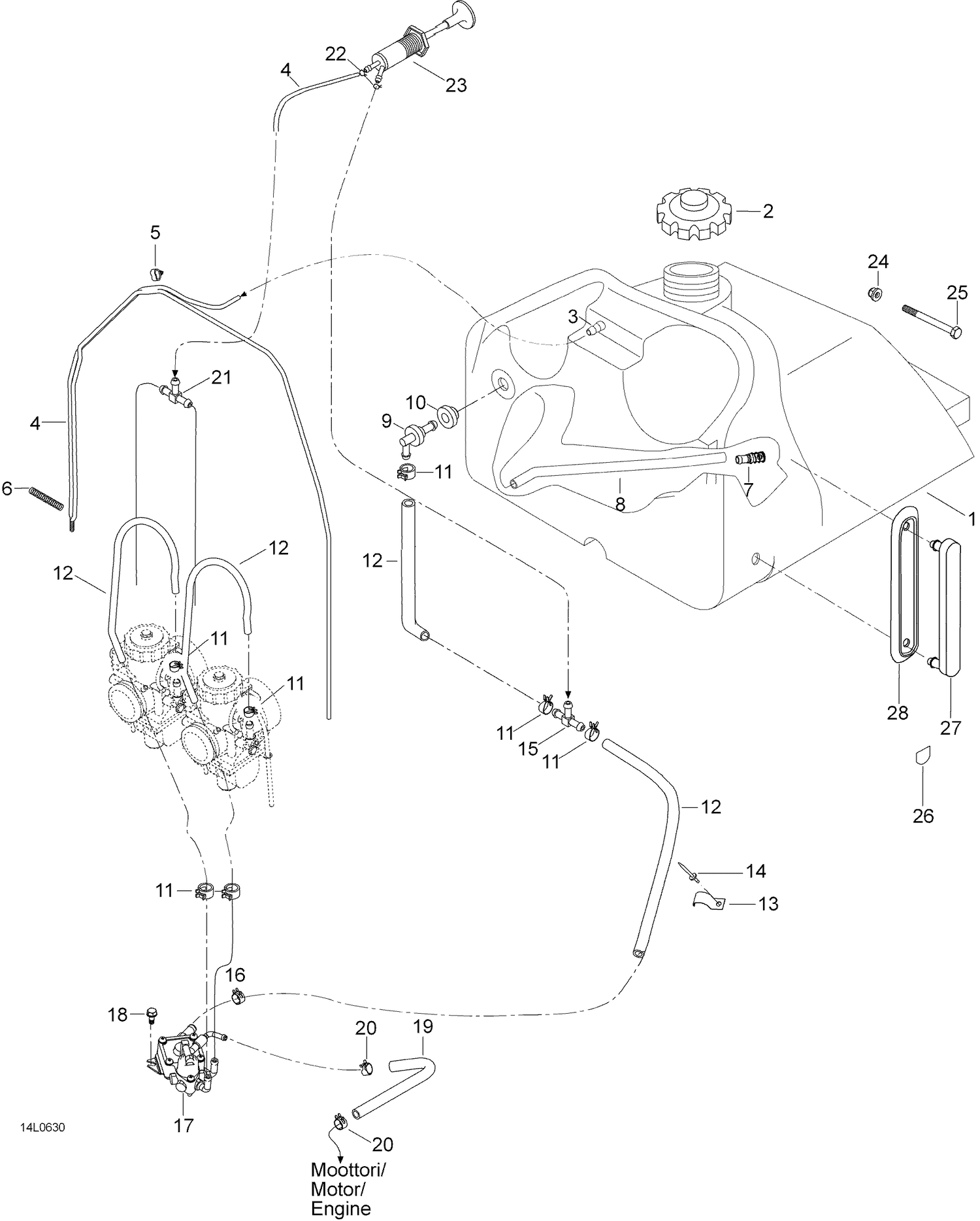

| Ref | Part Number | Description |
|---|
| 1 |
5146246 |
Fuel tank, holes |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 3 |
19051 |
Fitting |
| 4 |
39035 |
Fuel line |
| 5 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 6 |
25003 |
Spring |
| 7 |
414872100 |
Fuel filter |
| 8 |
39048 |
Fuel line |
| 9 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 10 |
280000674 |
Grommet This part replaces 28037. |
| 11 |
414655700 |
Clamp |
| 12 |
513033022 |
HOSE 8 MM, METER - Call your local BRP dealership |
| 13 |
415018200 |
CLIP - Call your local BRP dealership |
| 14 |
36036 |
Rivet |
| 15 |
415119300 |
T-fitting |
| 16 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 17 |
403901813 |
Fuel pump |
| 18 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 19 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 20 |
414420700 |
Universal Spring Clamp |
| 21 |
21062 |
T-fitting |
| 22 |
543230 |
Clamp |
| 23 |
415060500 |
Primer |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 25 |
40002 |
Hex. screw M6 x 40 |
| 26 |
549200 |
Fuel label |
| 27 |
572015900 |
Fuel gauge |
