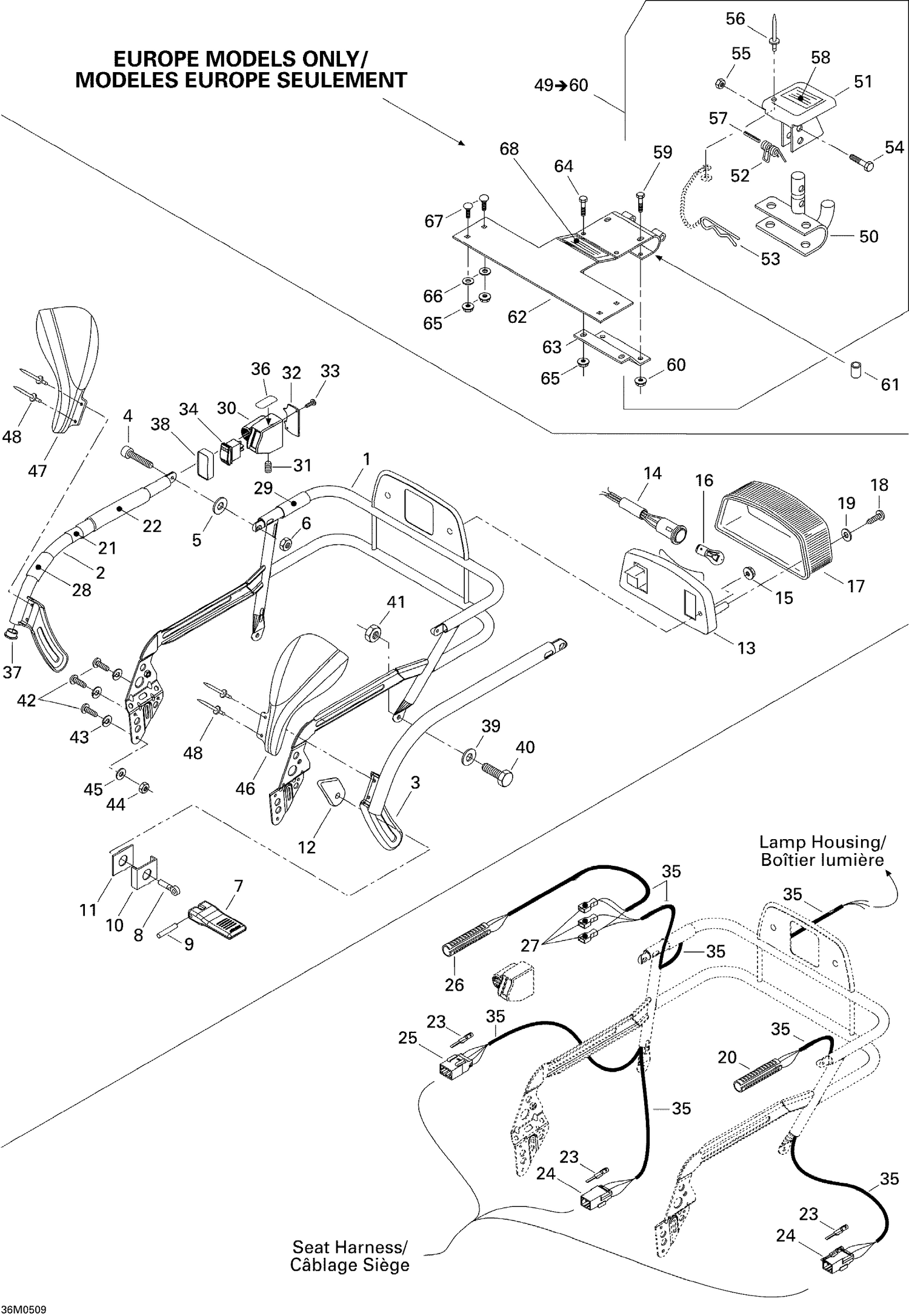

| Ref | Part Number | Description |
|---|
| 1 |
511000124 |
Rack Ass’Y |
| 2 |
511000012 |
RH Arm, Rack |
| 3 |
517300900 |
LH Am, Rack |
| 4 |
205061644 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 5 |
234062100 |
Flat Washer 6 mm |
| 6 |
232561414 |
Elastic Stop Nut M6 |
| 7 |
572038200 |
Lock Lever |
| 8 |
517250100 |
EYE BOLT - Call your local BRP dealership |
| 9 |
414821400 |
Pin |
| 10 |
511000226 |
Guide |
| 11 |
570063800 |
Outer Spacer |
| 12 |
572088900 |
Spacer Block |
| 13 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 14 |
511000224 |
Socket |
| 15 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 16 |
520000758 |
Bulb This part replaces 410504100. |
| 17 |
414513700 |
Lens |
| 18 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 19 |
414516400 |
Washer - Call your local BRP dealership |
| 20 |
515176085 |
Heater |
| 21 |
414988700 |
Reflective Sheet |
| 22 |
415050200 |
LH Grip, 370 mm |
| 23 |
515175232 |
Male Terminal |
| 24 |
515175494 |
Male Housing, 3 Circuits |
| 25 |
515175846 |
Male Terminal Housing, 4 Circuits |
| 26 |
515176085 |
Heater |
| 27 |
409010800 |
Female Terminal |
| 28 |
415050300 |
RH Grip, 250 mm |
| 29 |
415050400 |
Grip, Short, 60 mm |
| 30 |
572089200 |
Switch Housing |
| 31 |
206580890 |
Pressure Screw M8 X 8 |
| 32 |
572089300 |
Plate |
| 33 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 34 |
511000001 |
Rocker Switch |
| 35 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 36 |
418001800 |
HEAT GRIP DECAL - Call your local BRP dealership |
| 37 |
572110800 |
CAP, BLACK - Call your local BRP dealership |
| 38 |
511000002 |
Switch Protector |
| 39 |
234081410 |
Flat Washer 8 mm |
| 40 |
207182044 |
Hex. Screw M8 X 20 |
| 41 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 42 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 43 |
234161601 |
Lock Washer Helical M6 |
| 44 |
232561414 |
Elastic Stop Nut M6 |
| 45 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 46 |
572089400 |
RH Protector |
| 47 |
572089500 |
LH Protector |
| 48 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
