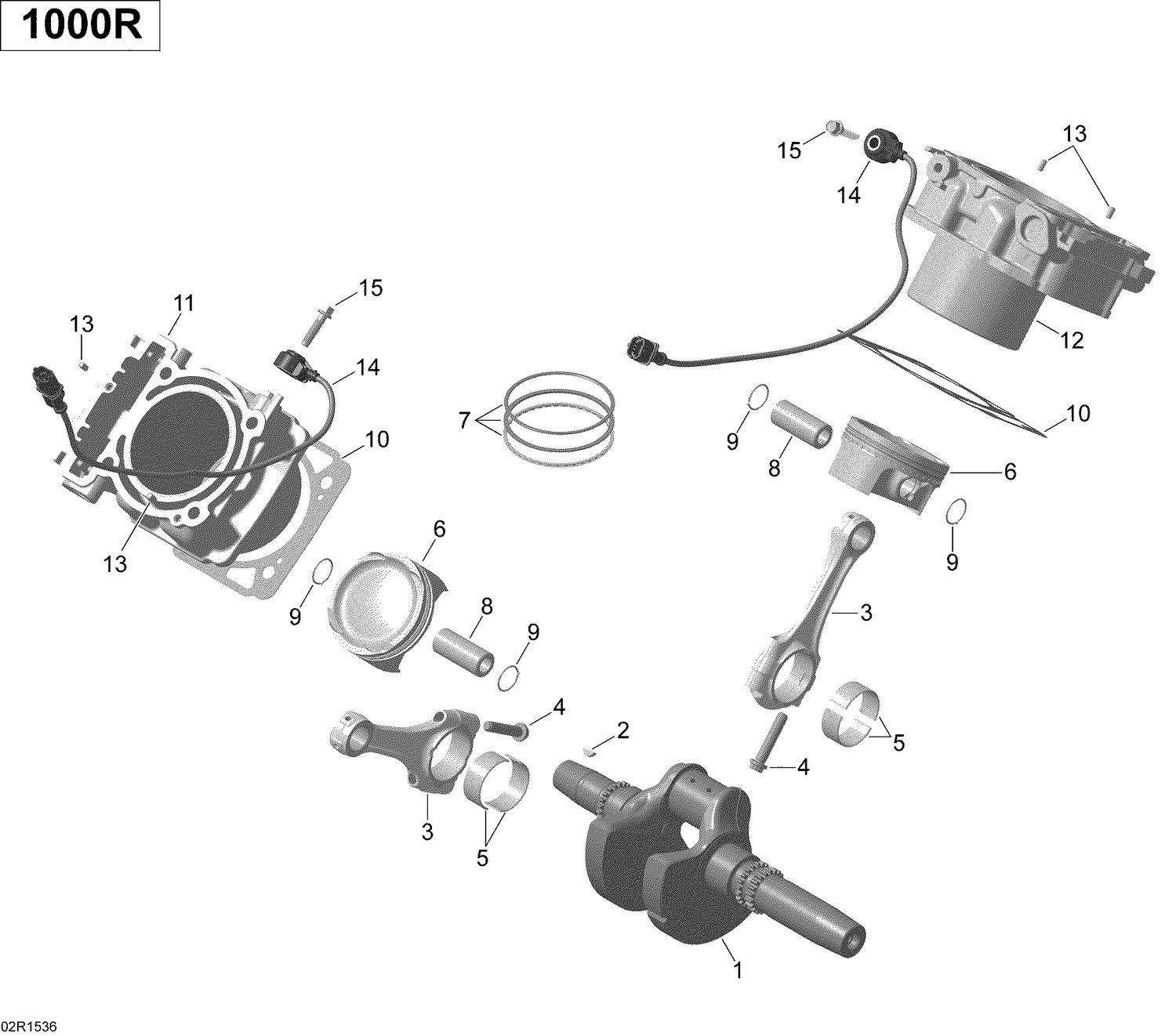

01- Crankshaft, Piston And Cylinder Turbo _02R1536
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420219738 | Crankshaft |
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 4 | 420641475 | Connecting Rod Screw M9 X 1 |
| 5 | 420233726 | Plain Bearing |
| 7 | 420296774 | Piston Ring Set |
| 8 | 420216351 | Piston Pin |
| 9 | 420245436 | Piston Circlip |
| 10 | 420630211 | Gasket Aramid This part replaces 420630210. |
| 11 | 420413111 | Cylinder Front This part replaces 420413110. |
| 12 | 420413116 | Cylinder Rear This part replaces 420413115. |
| 13 | 420929650 | Drive Pin 5 X 10 |
| 14 | 420664031 | Noise Sensor |
