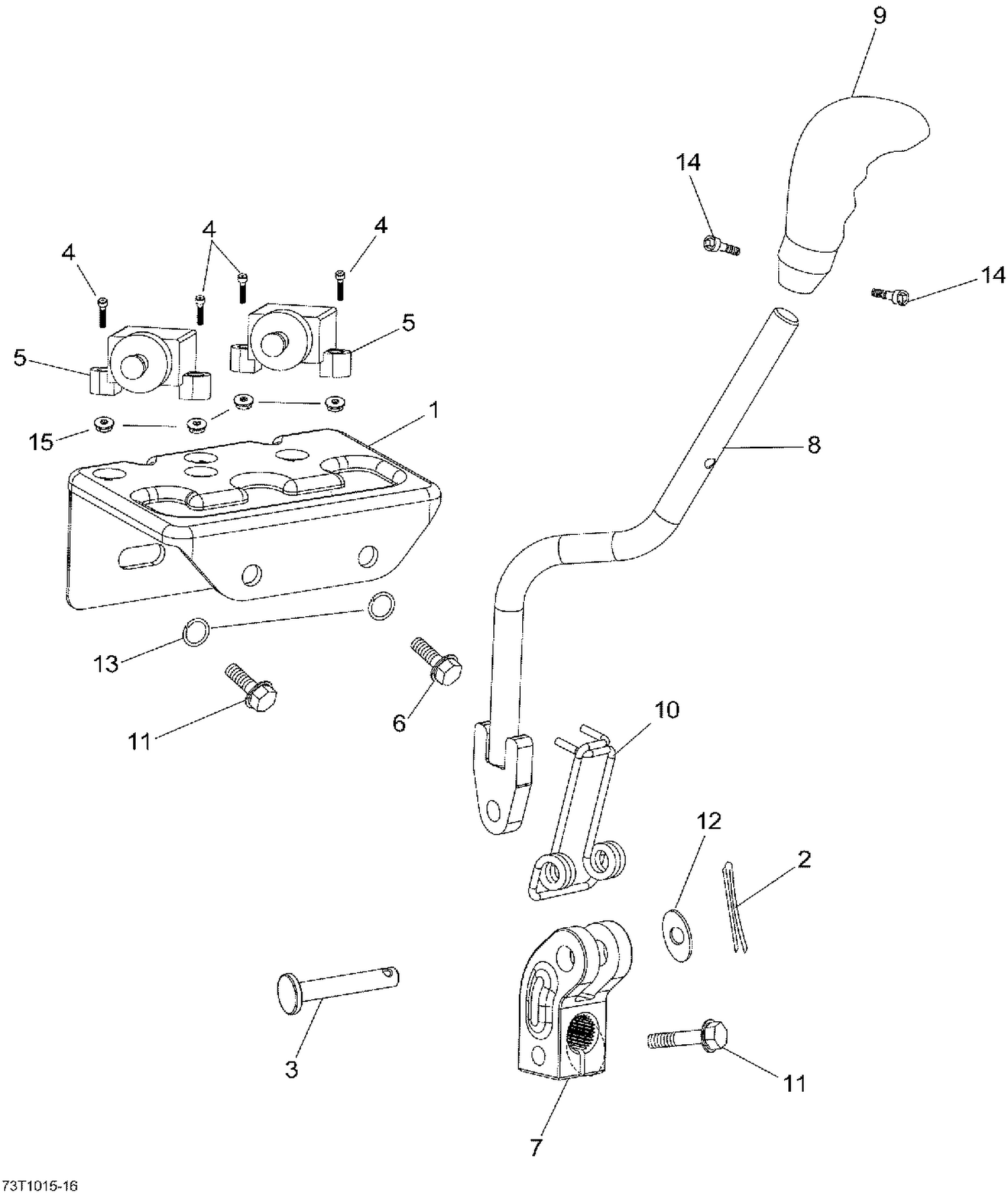

05- Shift Lever
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V72101DGF070 | Shift Plate This part replaces V72101DGF060. |
| 2 | V9420130032LL | Cotter Pin This part replaces V9420130032. |
| 3 | V50226MAF040LL | Pin |
| 4 | V935000501501L | Pan Head Phillips Bolt M5 X 15 |
| 5 | V35152DGF060 | Switch |
| 6 | 207661644 | Hex. Flange Screw M6 X 16 |
| 7 | V72315MAD040 | Support Shifter |
| 8 | V72314DGF050LL | Shifter This part replaces V72314DGF050. |
| 9 | V72201CEK040LL | Handle This part replaces V72201CEK040. |
| 10 | V54294MAF030LL | Spring This part replaces V54294MAF030. |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 12 | V941010816015LL | Washer |
| 13 | 234161601 | Lock Washer Helical M6 |
| 14 | V9105005006 | Socket Head Screw |
