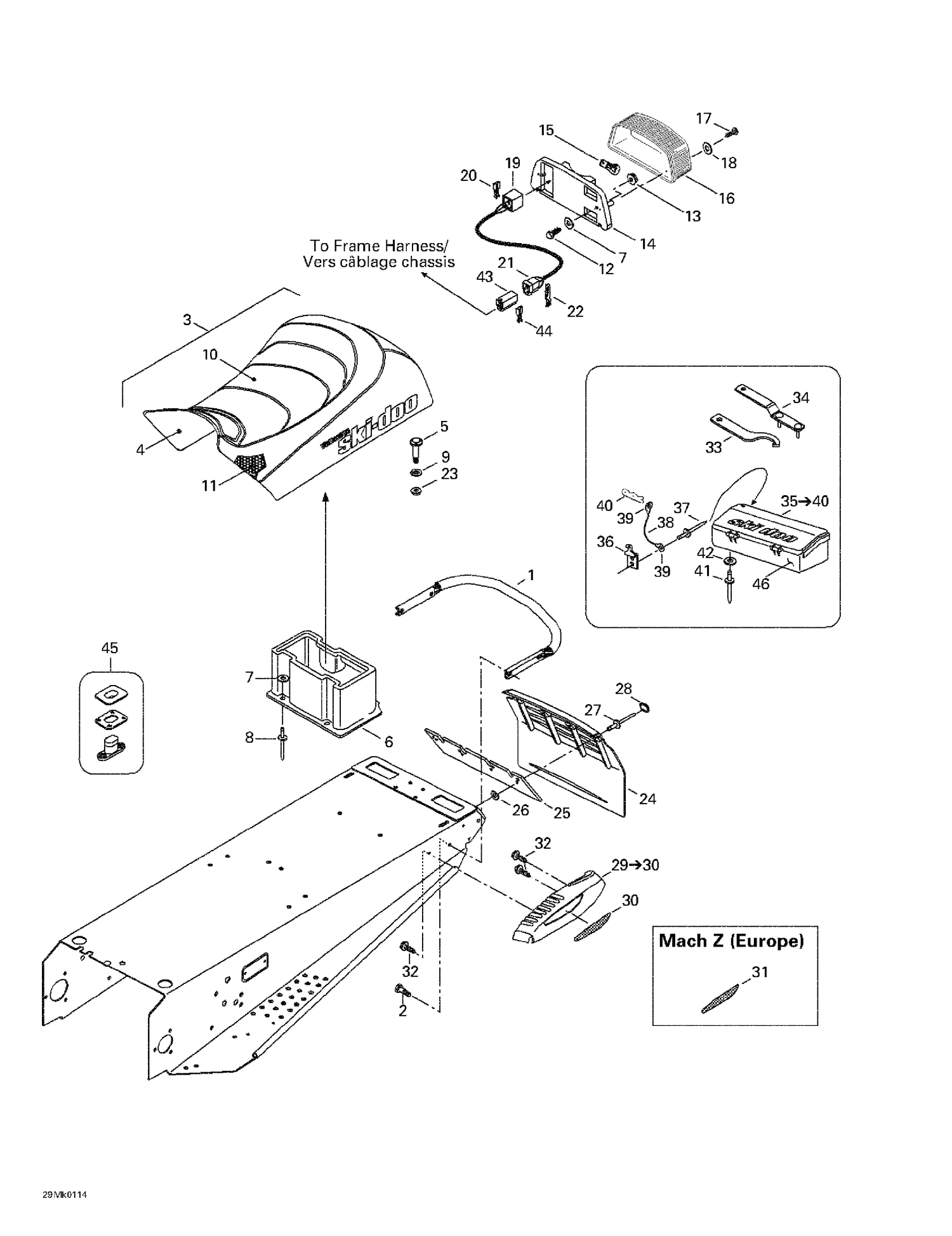

| Ref | Part Number | Description |
|---|
| 1 |
518322438 |
REAR BUMPER - Call your local BRP dealership |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
Not |
Available As Spare Part - Seat Ass'y |
| 4 |
572088200 |
Sub-Seat |
| 6 |
572106300 |
Rear Trunk, Se-Air |
| 7 |
517297900 |
WASHER - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Pop Rivet |
| 9 |
732610072 |
Push Nut |
| 10 |
510003913 |
Seat Cover |
| 11 |
415046302 |
Foam Seat |
| 12 |
207053044 |
Hex. Screw M5 X 30 |
| 13 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 14 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 15 |
520000758 |
Bulb This part replaces 410504000. |
| 16 |
414513700 |
Lens |
| 17 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 18 |
414516400 |
Washer - Call your local BRP dealership |
| 19 |
515175250 |
Female Terminal Housing, 3 Circuits |
| 20 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 21 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 22 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
572092100 |
SNOW GUARD - Call your local BRP dealership |
| 25 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 26 |
517225900 |
Flat Washer |
| 27 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 28 |
415073300 |
Cap |
| 30 |
516000237 |
RH Reflector, Red |
| 31 |
516000241 |
RH Reflector, Yellow, Europe |
| 32 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 33 |
529034100 |
ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership |
| 34 |
520000126 |
Adjustment Wrench |
| 36 |
517168500 |
Latch |
| 37 |
Not |
Available As Spare Part - Pop Rivet 5/32" |
| 38 |
Not |
Available As Spare Part - Steel Wire |
| 39 |
561502800 |
Terminal Ring |
| 40 |
414112400 |
HAIR PIN - Call your local BRP dealership |
| 41 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 42 |
517124300 |
Washer |
| 43 |
409204300 |
Female Housing |
| 44 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 45 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 47 |
529019200 |
DRIVER SCREW - Call your local BRP dealership |
| 48 |
529014900 |
Socket Wrench 10/13 mm |
| 49 |
529032800 |
Wrench Socket (21/26 mm) (Not Shown) |
| 50 |
529017300 |
FORK WRENCH - Call your local BRP dealership |
| 51 |
Not |
Available As Spare Part - Wrench Fork (16/18 mm) (Not Shown) |
| 52 |
529014700 |
MULTI-WRENCH - Call your local BRP dealership |
| 53 |
219704403 |
Was 412500100 Rope-Starter |
| 54 |
529000060 |
Starter Grip This part replaces 529019400. |
| 55 |
529035501 |
Spacing Tool |
| 56 |
529000003 |
FORK WRENCH 15/17 MM - Call your local BRP dealership This part replaces 529019300. |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 516000242 |
LH |
Reflector, Yellow, Europe 516000242 |
| 516000242 |
Réflecteur |
GA, Jaune, Europe 516000242 |
| 572103804 |
Snow |
Guard 572103804 |
| 861777000 |
2000 |
Yellow, LH Molding kit (121") 861777000 |
