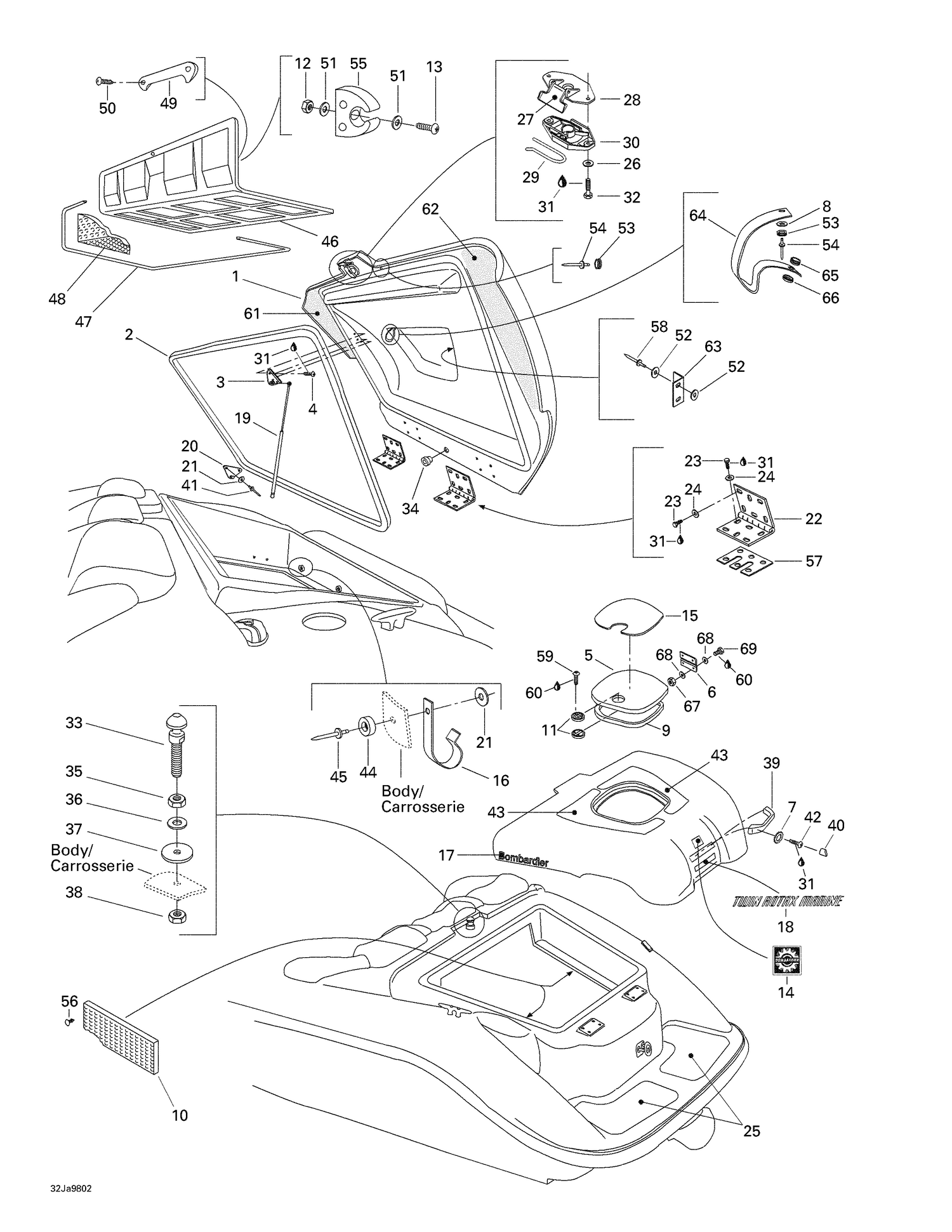

| Ref | Part Number | Description |
|---|
| 1 |
295500284 |
Engine Cover |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
291000654 |
CYLINDER SUPPORT - Call your local BRP dealership |
| 4 |
215051660 |
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership |
| 5 |
269700030 |
Rope Box Cover |
| 6 |
269700031 |
Hinge |
| 7 |
234461608 |
External Serrated Lock Washer 6 mm This part replaces 217161600. |
| 8 |
234032600 |
Flat Washer M3, Stainless This part replaces 213200018. |
| 9 |
219704365 |
Was 293200017 Neoprene Seal |
| 10 |
237500011 |
Engine Foam R.H |
| 11 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 12 |
232541600 |
Elastic Stop Nut M4 This part replaces 218041600. |
| 13 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership This part replaces 215842560. |
| 15 |
204070128 |
Cover Carpet (Emerald Green) |
| 16 |
414839700 |
Clip Cable |
| 18 |
204900154 |
Decal "Twin Rotax Marine" |
| 19 |
204070199 |
Cylinder |
| 20 |
291000615 |
Shock Support |
| 21 |
234051600 |
Flat Washer M5, Stainless This part replaces 213200004. |
| 22 |
204070127 |
HINGE ASS'Y - Call your local BRP dealership |
| 23 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 24 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 25 |
204070131 |
RH Platform Carpet |
| 26 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 27 |
269700109 |
Latch Ass'y This part replaces 269000016. |
| 28 |
269700109 |
Latch Ass'y This part replaces 269700020. |
| 29 |
269700017 |
Latch Spring |
| 30 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 31 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 32 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 33 |
204700001 |
Latch Stud |
| 34 |
293720017 |
GROMMET - Call your local BRP dealership |
| 35 |
232100600 |
Hex. Jam Nut M10 This part replaces 218300600. |
| 36 |
234002600 |
Flat Washer 10 mm, Stainless This part replaces 217002600. |
| 37 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 38 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership This part replaces 212000003. |
| 40 |
204070141 |
SNAP CAP (EMERALD GREEN) - Call your local BRP dealership |
| 41 |
293150043 |
Pop Rivet 3/16" |
| 42 |
211000009 |
SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership |
| 43 |
204070129 |
RH Carpet (Emerald Green) |
| 44 |
293830043 |
Rubber Stopper |
| 45 |
293150013 |
Pop Rivet 3/16" |
| 46 |
295500299 |
Access Cover |
| 47 |
219704368 |
Seal Tray 1000Mm Long |
| 48 |
237500013 |
Luggage Foam |
| 49 |
291000608 |
HANDLE, WHITE - Call your local BRP dealership |
| 50 |
241141660 |
Hex. Flange Screw K40 X 16 This part replaces 211000033. |
| 51 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 52 |
234051600 |
Flat Washer M5, Stainless This part replaces 211200038. |
| 53 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 54 |
293150015 |
Pop Rivet 1/8” |
| 55 |
291000642 |
Pole Support |
| 56 |
293730006 |
Black, Dart |
| 57 |
204070047 |
SPACER 3.2 MM - Call your local BRP dealership |
| 58 |
293150039 |
Pop Rivet 3/16" |
| 59 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership This part replaces 215851668. |
| 60 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 61 |
204320011 |
LH Foam Cover |
| 62 |
204320012 |
RH Foam Cover |
| 63 |
204070060 |
KEEPER - Call your local BRP dealership |
| 64 |
204000075 |
Nylon Strap (Black) (Meter) |
| 65 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 66 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 67 |
211100053 |
Hex. Nut M3 |
| 68 |
234031600 |
Flat Washer 3 mm, Stainless Steel This part replaces 211200046. |
| 204070130 |
LH |
Carpet (Emerald Green) 204070130 |
| 204070132 |
LH |
Platform Carpet 204070132 |
