Home / BRP / 2012 / MX Z / MXZ TNT 550F XP-FAN, 2012 000BNCA00 000BNCB00 000BNCC00 / 07- Front Suspension And Ski

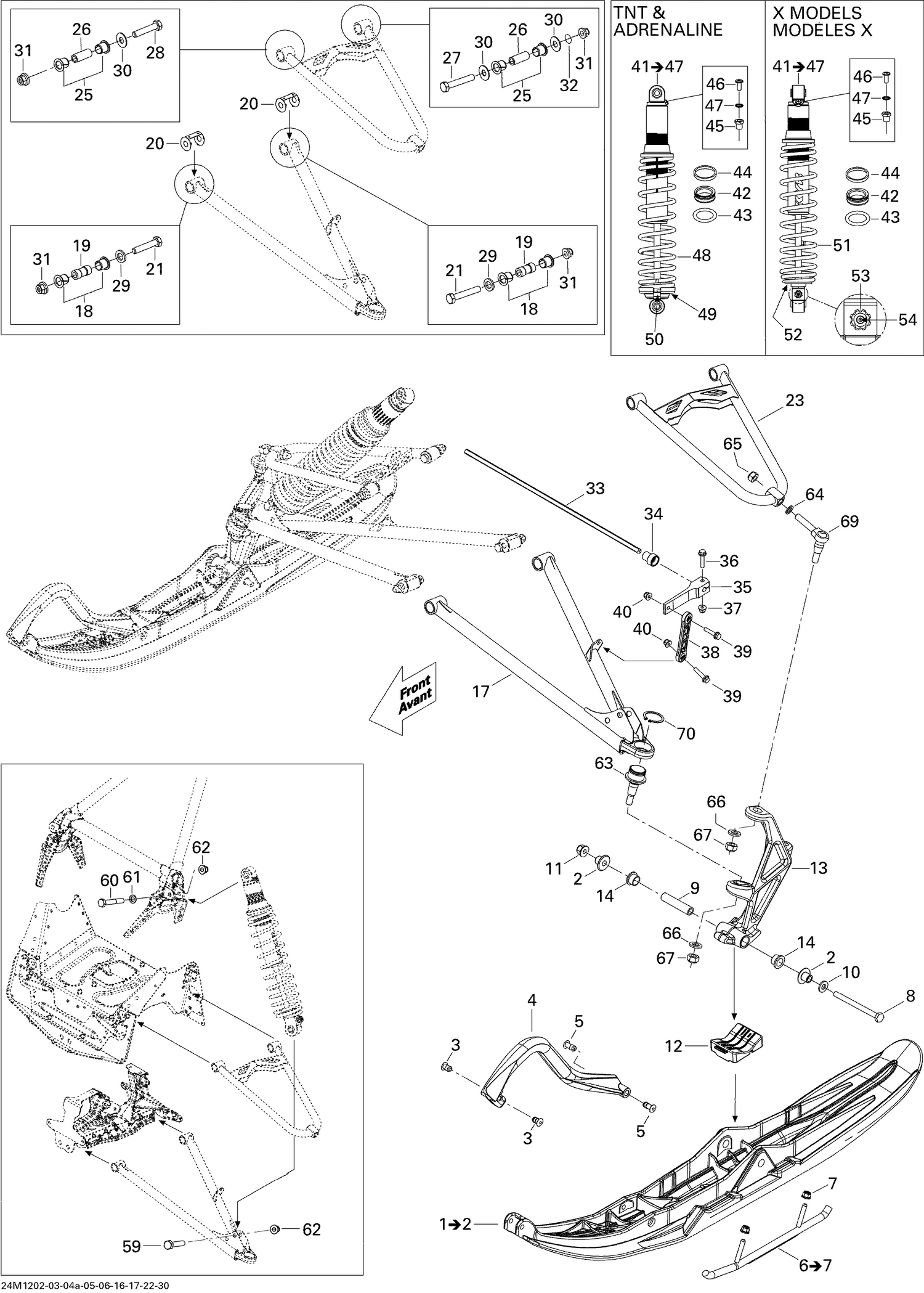

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (52)

RefPart NumberDescription
2 505071781 Ski Bushing
3 505071812 Retainer 17mm long
4 505070917 Yellow Handle
5 505072133 Retainer 23mm Long
7 233281414 Hex. Flange Elastic Nut M8
8 250000703 Hex. Screw M10 X 130 This part replaces 230003044.
9 506133300 Spacer
10 732900049 Washer
11 233201414 Hex. Flange Elastic Nut M10
12 505072594 Ski Stopper
14 505072690 Leg Bushing
18 505072208 Bushing
19 505072209 Sleeve This part replaces 505072393.
20 505072634 Wear Plate
21 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
23 505072374 Upper Arm
25 505072250 Bushing
26 505072143 Sleeve
27 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
28 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
29 503189564 Washer
30 505072392 Washer
31 250100165 Hex. Flange Elastic Nut M10 This part replaces 250100088.
32 505072448 O-Ring
33 505072602 Stabilisator
34 505072064 Bushing
35 505072394 Stabilisator Lever
36 207663046 Hex. Flange Screw M6 X 30
37 233261416 Elastic Flange Nut M6 X 1.0
38 505072204 Sway Bar Double Joint Link
39 207663046 Hex. Flange Screw M6 X 30
40 233261416 Elastic Flange Nut M6 X 1.0
42 505189309 Free Piston
43 414888312 O-Ring
44 503189308 Piston Ring
45 505070398 Air Valve
46 505070399 Screw
47 505070400 O-Ring
51 XXX Not Available As Spare Parts
52 XXX Not Available As Spare Parts
53 XXX Not Available As Spare Parts
54 XXX Not Available As Spare Parts
59 207005544 Hex. Screw M10 X 55
60 207006544 Hex. Screw M10 X 1.5 X 65
61 503189564 Washer
62 233201414 Hex. Flange Elastic Nut M10
63 505073636 Ball Joint This part replaces 505072682.
64 503189276 Washer
65 250100089 Hex. Elastic Hex. Nut M12
66 234021410 Flat Washer 12 mm
67 250100089 Hex. Elastic Hex. Nut M12
69 505072257 Upper Ball Joint
