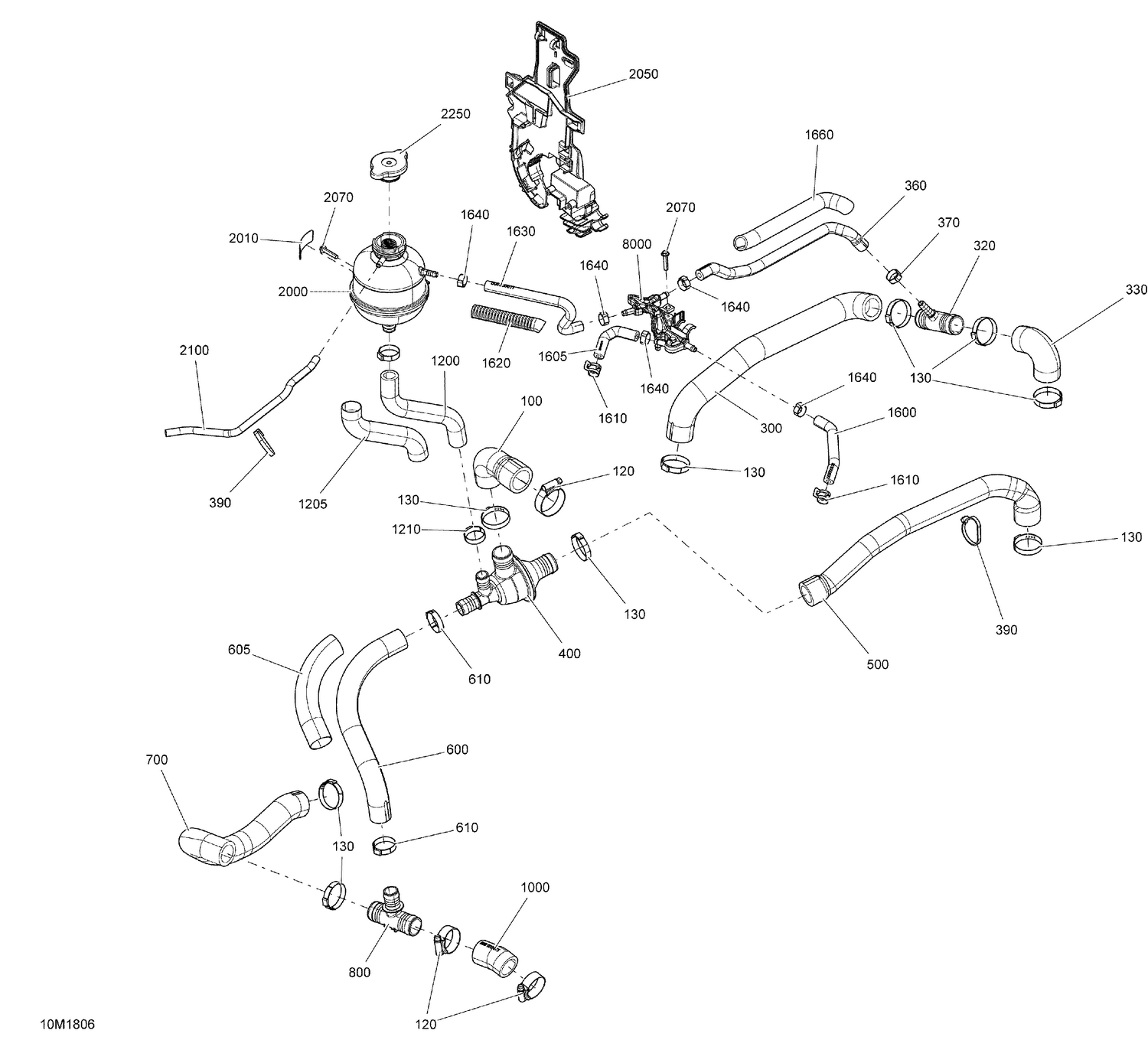

01- Cooling Tundra - 600 ACE
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000932 | Engine Outlet Hose |
| 130 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 290 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 300 | 509000634 | Hose |
| 310 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 320 | 509000510 | T-Fitting |
| 700 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 800 | 509000372 | T-Fitting |
| 1000 | 509000921 | Radiator Hose |
| 1200 | 509001063 | Filling Hose This part replaces 509000811. |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 293650099 | Crimp Clamp |
| 2000 | 509000875 | Cooling Tank |
| 2010 | 516005904 | Warning Decal |
| 2020 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2050 | 509000694 | Front Bracket |
| 2060 | 390909200 | Avex Rivet |
| 2100 | 509000775 | Hose |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500 | 509000800 | Water Pipe |
| 2510 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3000 | 509000617 | Radiator Hose |
| 3005 | 509000618 | Radiator Hose |
| 3006 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 3100 | 509000560 | Radiator Hose |
| 3110 | 293650165 | Oetiker Gear Clamp |
| 3120 | 509000735 | Clamp |
| 3130 | 509000931 | Gear Clamp |
| 3300 | 509000692 | Fan Ass'y |
| 3310a | 219704371 | Neoprene Seal 3000 mm Long |
| 3325 | 219704353 | Was 271000110 Protection Trim |
| 3340 | 509000988 | Radiator Support |
| 3350 | 509000972 | Radiator |
| 3360 | 509000715 | Support |
| 3370 | 509000772 | Support |
| 3375 | 390909100 | Avex Rivet |
| 3380 | 709000582 | Grommet This part replaces 293720053. |
| 3390 | 293900100 | Bushing |
| 3395 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 3400 | 509000860 | Breather Hose |
| 3405 | 293650047 | Crimp Clamp, 15.3-706R |
| 3450 | 293650025 | Oetiker Gear Clamp |
| 4800 | 509000892 | DEFLECTOR - Call your local BRP dealership |
| 5005 | 207661654 | Hex. Flange Screw M6 X 16 |
| 5010 | 293450275 | Insert |
| 5015 | 224061121 | Flat Washer |
| 5020 | 709200285 | Grommet |
| 5060 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
