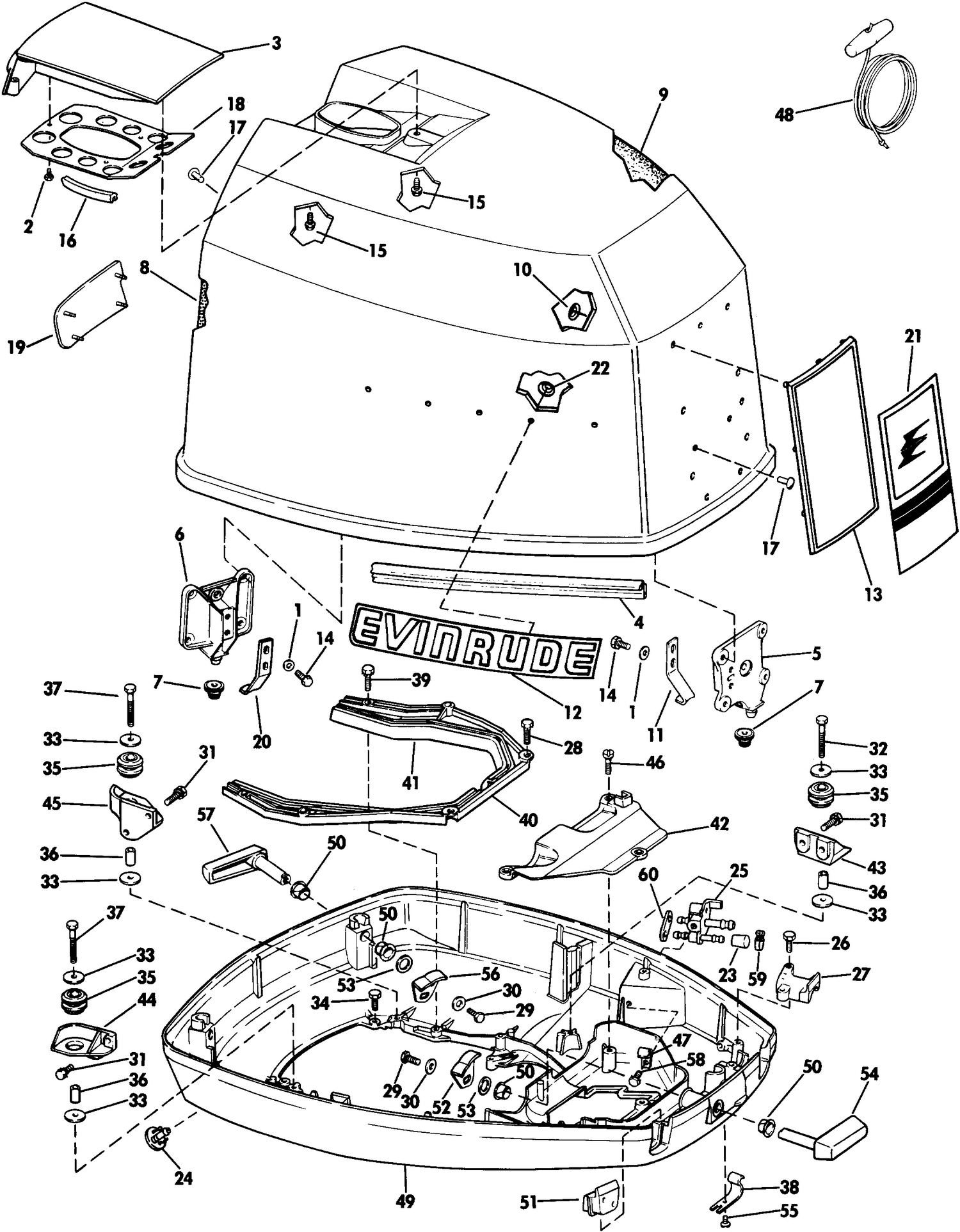

| Ref | Part Number | Description |
|---|
| 1 |
0306407 |
LOCCKWASHER,Cover latch |
| 4 |
0328686 |
SEAL, Engine cover This part replaces 0209488. |
| 5 |
0389971 |
LOCATING BARCKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear |
| 8 |
0334853 |
SOUND BLANKET, Side This part replaces 0208954. |
| 9 |
0209445 |
SOUND BLANKET, Top |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 12 |
0210104 |
APPLIQUE, Evinrude, stbd. & port |
| 13 |
0209492 |
APPLIQUE, Front |
| 16 |
0315984 |
SEAL , Baffle to motor cover This part replaces 0209507. |
| 18 |
0206520 |
AIR INLET BAFFLE |
| 19 |
0209006 |
APPLIQUE, Engine cover, rear, 175 |
| 19 |
0210111 |
APPLIQUE, Engine cover, rear, 150 |
| 19 |
0210112 |
APPLIQUE, Engine cover, rear, 185 |
| 19 |
0210113 |
APPLIQUE, Engine cover, rear, 235 |
| 21 |
0210107 |
PLATE, Applique front |
| 24 |
0321885 |
NIPPLE |
| 25 |
0394309 |
FUEL CONNECTOR |
| 26 |
0307151 |
SCREW |
| 27 |
0318849 |
CLAMP, Instrument cable |
| 28 |
0328695 |
CLAMP, Engine cable |
| 29 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 31 |
0328695 |
CLAMP, Engine cable |
| 32 |
0303398 |
VIS, support |
| 34 |
0328695 |
CLAMP, Engine cable |
| 35 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 36 |
0302406 |
SLEEVE |
| 37 |
0303398 |
VIS, support |
| 38 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0329610. |
| 40 |
0392494 |
FRAME AND SEAL ASSY |
| 41 |
0318258 |
SEAL Cover |
| 42 |
0328358 |
COVER ASSY. Air entrance |
| 43 |
0315111 |
SUPPORT, Front |
| 44 |
0315113 |
SUPORT, Stbd, rear |
| 45 |
0315112 |
SUPPORT, Port rear |
| 46 |
0328695 |
CLAMP, Engine cable |
| 48 |
0378347 |
CORDE DE LANCEUR |
| 49 |
0434288 |
ENGINE COVER, Lower This part replaces 0394373. |
| 51 |
0320834 |
GROMMET |
| 52 |
0323170 |
HOOK Front and stbd., rear |
| 54 |
0383641 |
LATCH HANDEL ASSY., Front |
| 55 |
0310539 |
SCREW, Clamp choke solenoid |
| 56 |
0323169 |
HOOK, Lower rear port |
| 57 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 58 |
0908159 |
SCREW, Bearing clamp This part replaces 0328728. |
| 60 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
| 0282361 |
0282361 |
ENGINE COVER ASSY., 150 |
| 0282362 |
0282362 |
ENGINE COVER ASSY., 185 |
| 0282363 |
0282363 |
ENGINE COVER ASSY., 235 |
| 0282446 |
0282446 |
DECAL SET |
| 0282932 |
0282932 |
ENGINE COVER ASSY., 175 |
