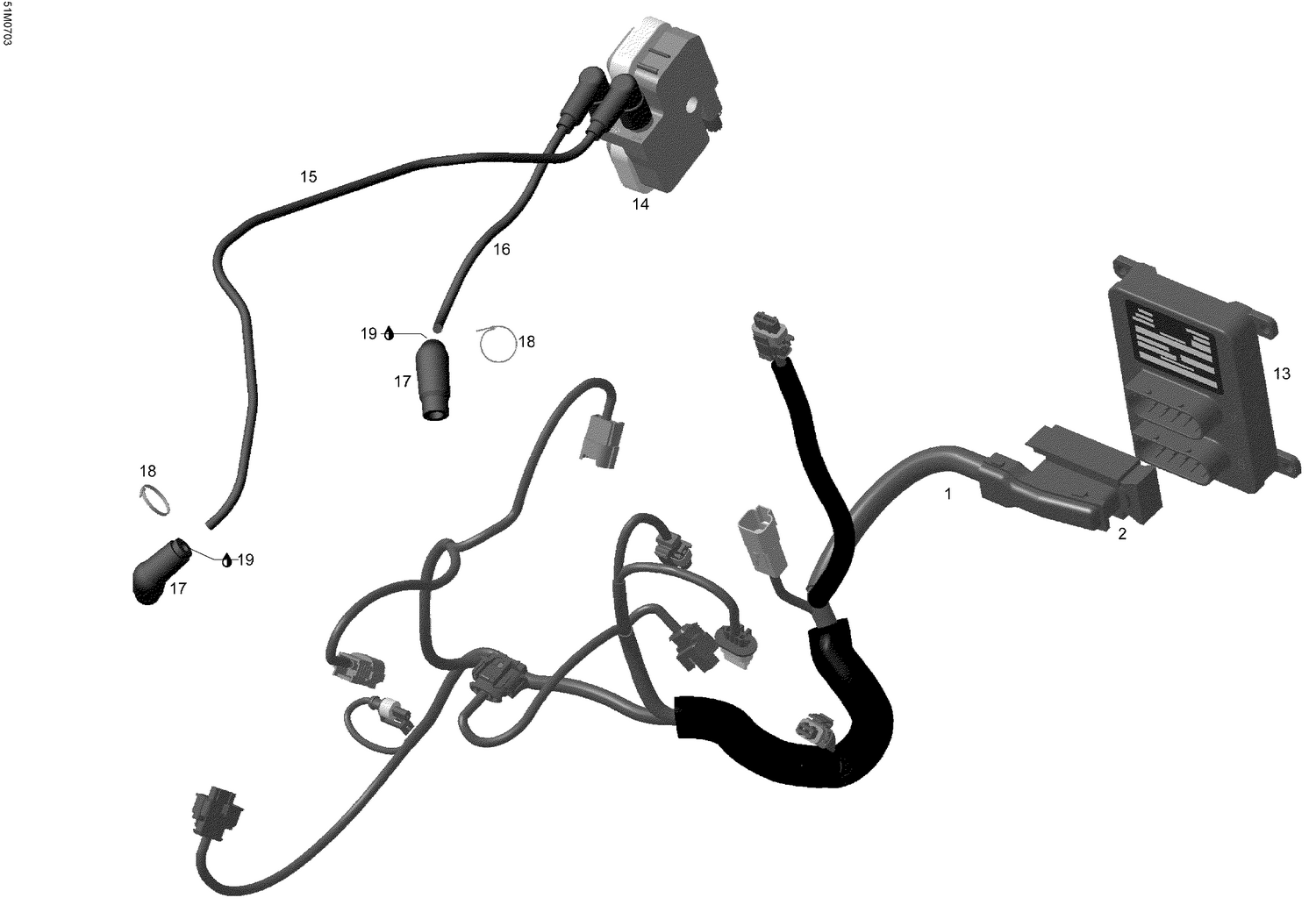

10- Engine Harness And Electronic Module
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420664450 | ECM Connector |
| 13 | 420665279 | Electronic Box |
| 14 | 278001546 | Ignition Coil This part replaces 420266070. |
| 15 | 420665333 | Spark Plug Cable, 790 mm, Rear This part replaces 420665330. |
| 16 | 420664305 | CABLE ASS?Y 245 MM PTO - Call your local BRP dealership |
| 17 | 420265248 | Spark Plug Connector This part replaces 420265240. |
| 18 | 420866710 | Tie Rap |
