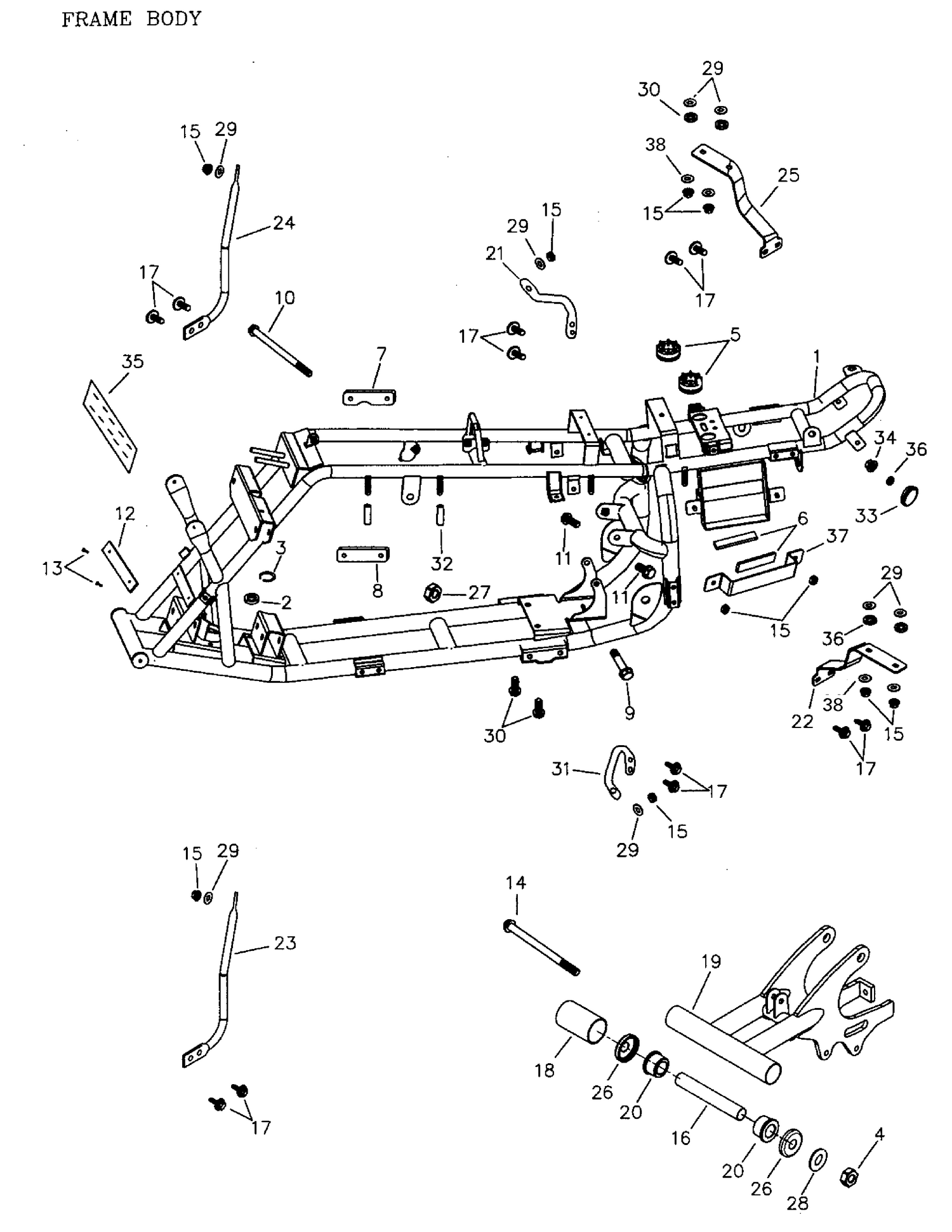

09- Frame And Body 172a-16
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A50100172000 | Frame Comp. |
| 2 | A961006002ZZ | Radial Ball Bearing, 6002ZZ |
| 3 | A945123200R | INTERNAL CIRCLIP - Call your local BRP dealership |
| 4 | A9035014000 | NYLON NUT M14 - Call your local BRP dealership |
| 5 | A77211145000 | Rubber |
| 6 | A17505145000 | SPONGE PAD - Call your local BRP dealership |
| 7 | A50353152000 | RH Engine Fixed Plate |
| 8 | A50354152000 | LH Engine Fixed Plate |
| 9 | A960000811014 | Hex. Washer Face Bolt M8 X 110 |
| 10 | A960000812014 | Hex. Washer Face Bolt M8 X 120 |
| 11 | A960000803612G | Hex. Washer Face Bolt M8 X 36 |
| 12 | A50110145000 | Frame No. Plate |
| 13 | A90662105000 | Rivet |
| 14 | A960001428019 | Hex. Washer Face Bolt M14 X 280 |
| 15 | A9035006000 | NYLON NUT M6 - Call your local BRP dealership |
| 16 | A52104152000 | Swing Arm Spacer |
| 17 | A920000601410 | HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership |
| 18 | A52101145001 | Rubber Sleeve |
| 19 | A52100152002 | SWING ARM ASSY. - Call your local BRP dealership This part replaces A52100152001. |
| 20 | A52103145000 | BUSH - Call your local BRP dealership |
| 21 | A83401155000 | REAR COVER LOWER RIGHT FIXED POLE - Call your local BRP dealership |
| 22 | A83402155000 | Rear Cover Up Fixed Plate |
| 23 | A64307155000 | FRONT COVER LEFT FIXED POLE - Call your local BRP dealership |
| 24 | A64308155000 | FRONT COVER RIGHT FIXED POLE - Call your local BRP dealership |
| 25 | A83403166000 | REAR COVER UP RIGHT FIXED PLATE - Call your local BRP dealership |
| 26 | A52144145000 | SWING ARM SEAL COVER - Call your local BRP dealership |
| 27 | A9035008000 | NYLON INSERT LOCK NUT M8 - Call your local BRP dealership |
| 28 | A941011426030 | Plain Washer, 14 X 26 X 3 |
| 29 | A941010618020 | PLAIN WASHER, 6 X 18 X 2 - Call your local BRP dealership |
| 30 | A960000801512G | HEXAGONAL WASHER FACE BOLT M8X15 - Call your local BRP dealership |
| 31 | A83404155000 | Rear Cover Lower Left Fixed Pole |
| 32 | A11357145000 | Cable Clamp Rubber |
| 33 | A33741145000 | Reflector |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | AB0907559 | Frame Decal |
| 36 | A94102145000 | Rubber Washer |
| 37 | A31504145000 | BATTERY BRACKET - Call your local BRP dealership |
