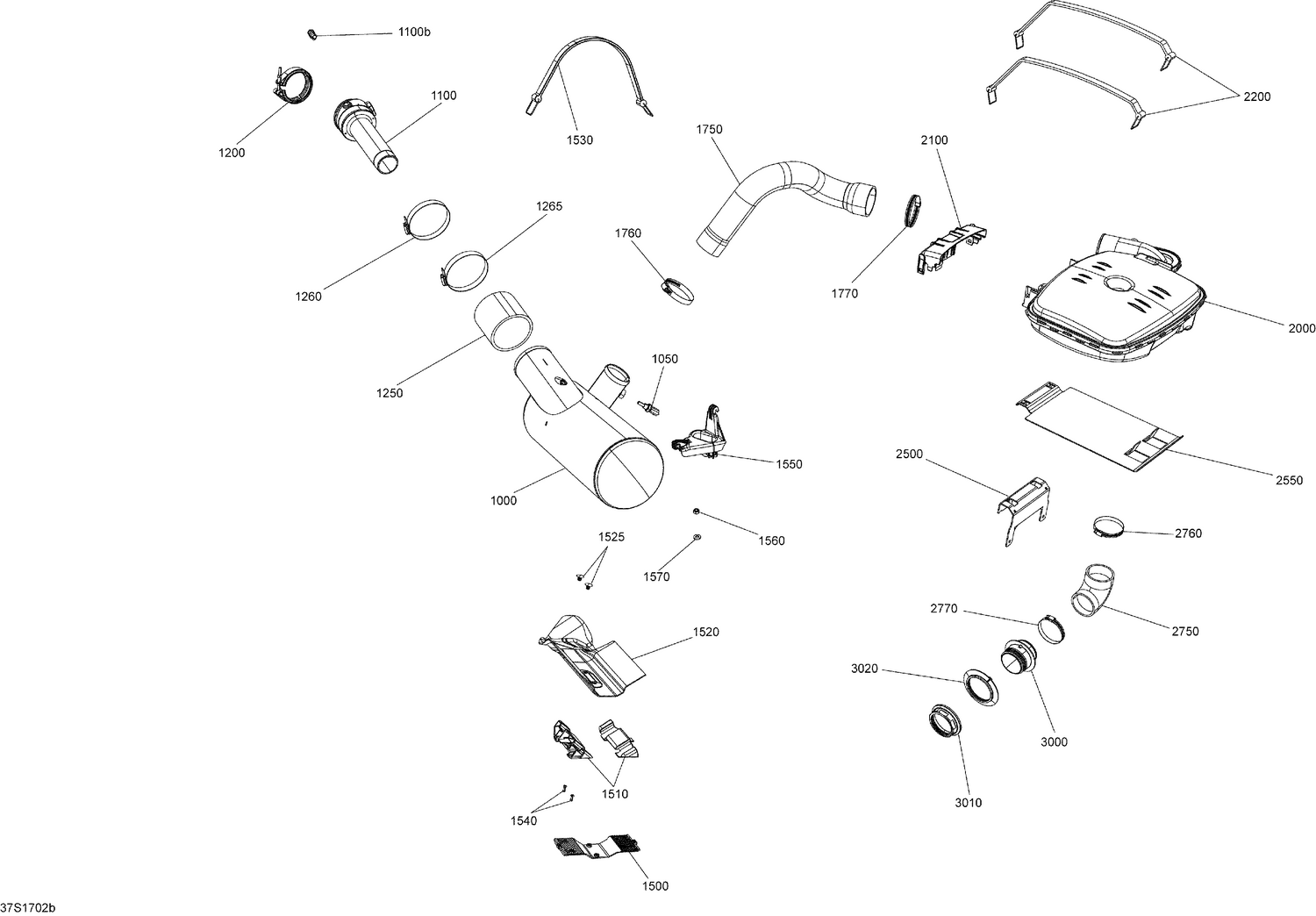

01- Exhaust System - Model without Suspension
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 278002895 | Temperature Sensor |
| 1100b | 293700023 | Elbow Fitting 90° |
| 1200 | 274001417 | Exhaust Clamp |
| 1250 | 274001610 | Hose |
| 1260 | 293650202 | Gear Clamp |
| 1265 | 293650202 | Gear Clamp |
| 1500 | 274001479 | Exhaust Muffler Support |
| 1510 | 274001721 | Stopper This part replaces 274001358. |
| 1525 | 414939500 | Dart |
| 1540 | 293150043 | Pop Rivet 3/16" |
| 1550 | 274001609 | Support |
| 1560 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1570 | 293050001 | Flat Washer M8.5 x 18 |
| 2000 | 274001722 | Resonator This part replaces 274001514. |
| 2200 | 293850120 | Strap |
| 2500 | 292001831 | Bracket |
| 2550 | 293830173 | Rubber Pad |
| 2750 | 274001542 | Exhaust Hose |
| 2760 | 293650244 | Tridon Gear Clamp |
| 2770 | 293650244 | Tridon Gear Clamp |
| 3000 | 274001659 | Exhaust Fitting This part replaces 274001540. |
| 3010 | 274001541 | Nut-77mm |
