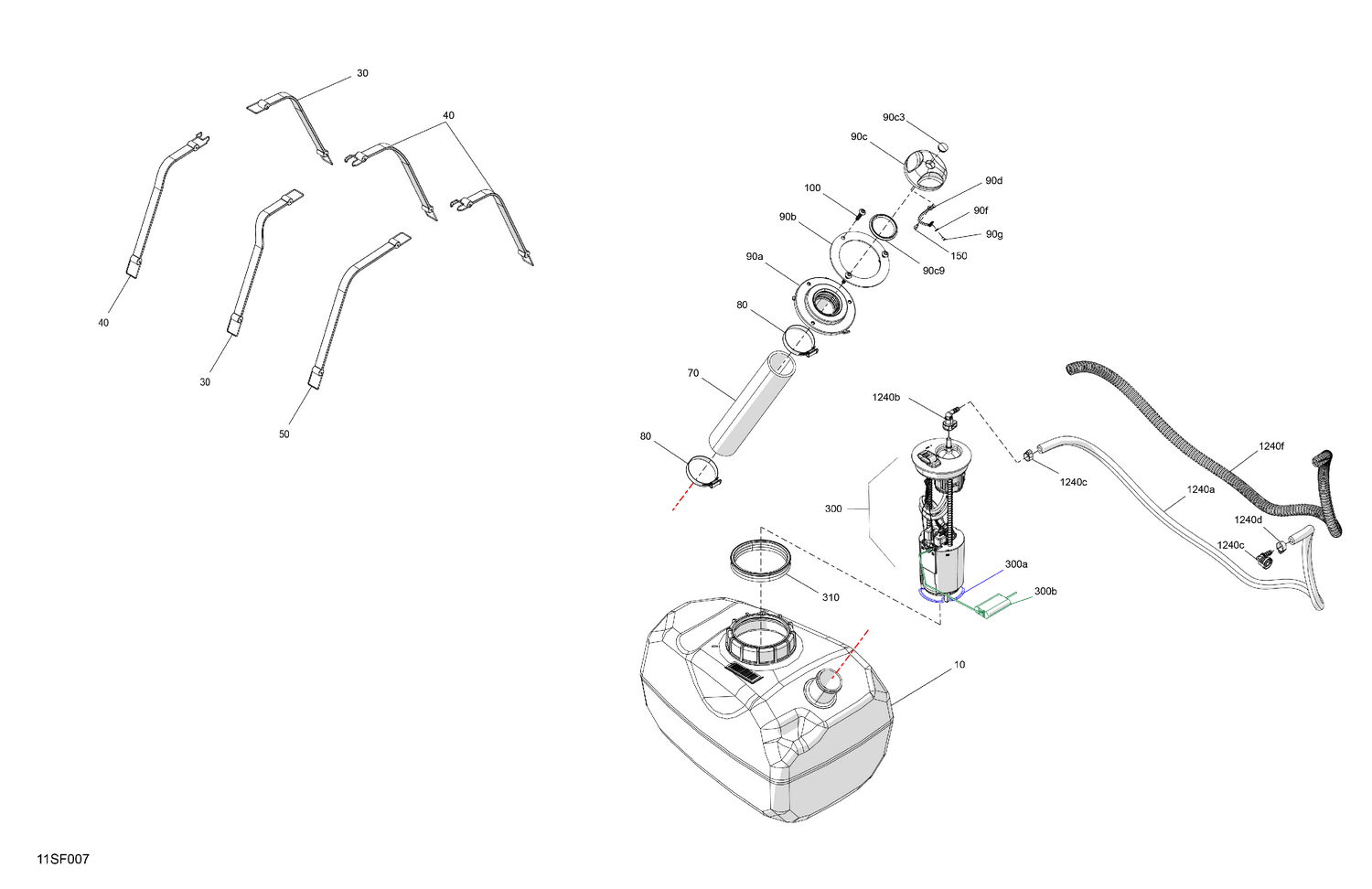

02- Engine - Fuel
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 275500982 | Fuel Tank |
| 30 | 293850095 | Fuel Tank Strap |
| 40 | 293850094 | Fuel Tank Strap |
| 50 | 293850093 | Fuel Tank Strap |
| 70 | 275500935 | Filler Neck Hose |
| 80 | 293650081 | Norma Clamp |
| 90a | 275500857 | Filler Neck |
| 90b | 293250298 | Gasket |
| 90c3 | 293000034 | Black, Snap Cap |
| 90c9 | 293250417 | Gasket |
| 90d | 275500974 | Fuel Cap Chain |
| 90f | 234032600 | Flat Washer M3, Stainless |
| 90g | 390407900 | Pop Rivet 1/8" |
| 100 | 250000879 | Plastite Torx Screw M6.81X30 |
| 150 | 241140060 | Screw K40 X 10 |
| 300a | 270600113 | Fuel Filter |
| 300b | 275500780 | Sensor Lever |
| 310 | 293250514 | Pump Gasket |
| 1240a | 219704359 | Hose I.D. 7.9Mm 3000Mm Long |
| 1240b | 275500921 | Quick Disconnect |
| 1240c | 293650053 | Crimp Clamp |
| 1240d | 293710105 | Elbow Fitting 90° |
