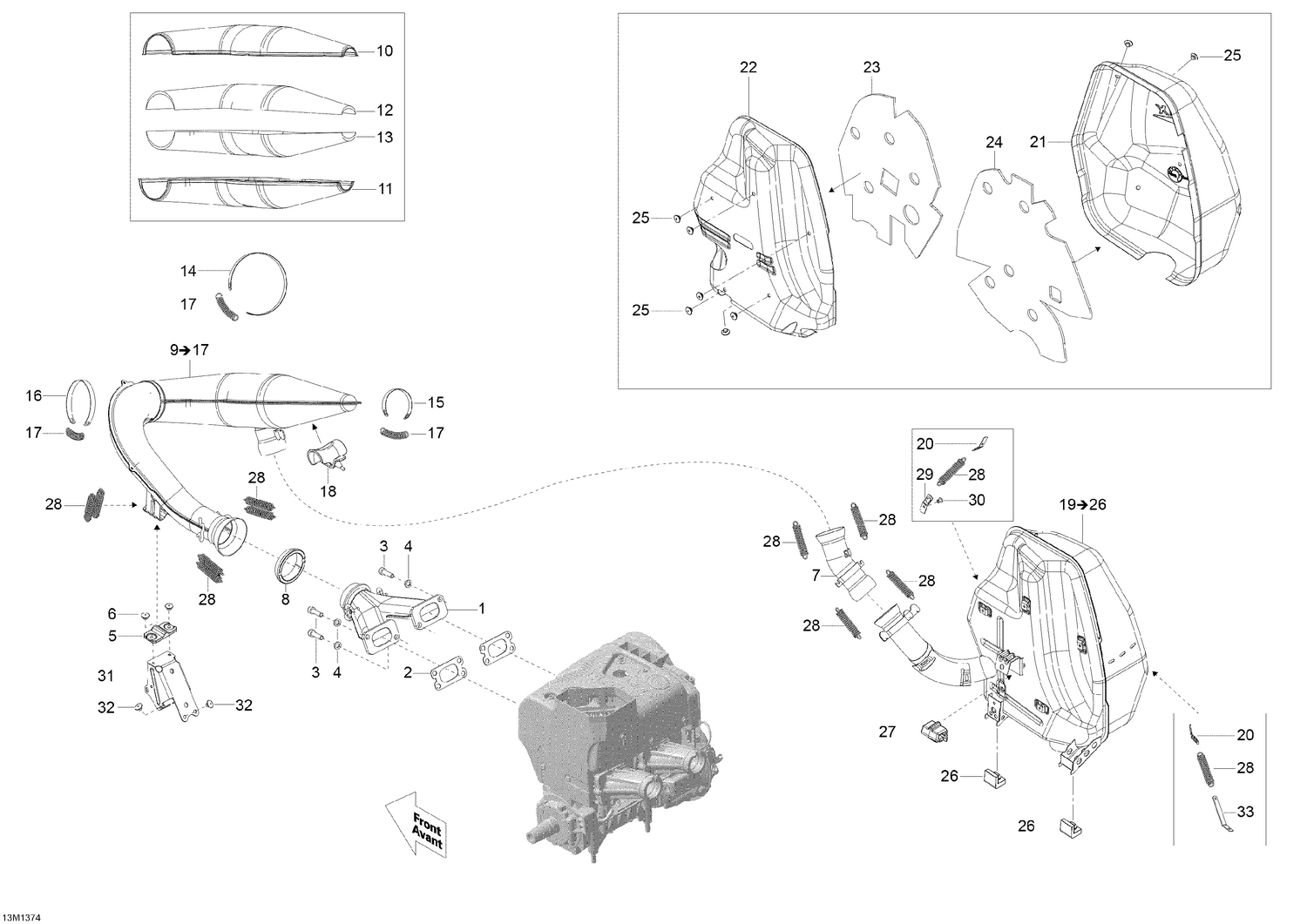

01- Exhaust System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420673065 | Exhaust Manifold |
| 2 | 420831849 | Gasket 1.0 mm |
| 3 | 205083044 | Socket Head Screw M8 X 30 |
| 4 | 514053837 | Washer |
| 5 | 514054617 | Bumper |
| 6 | 293150103 | Pop Rivet 3/16" |
| 7 | 514054411 | Exhaust Elbow |
| 8 | 514053644 | Exhaust Gasket |
| 10 | 514054208 | Rear Upper Half-enveloppe |
| 11 | 514054210 | Rear Lower Half Envellope |
| 12 | 514054244 | Upper Insulating Wool |
| 13 | 514054243 | Lower Insulating Wool |
| 14 | 514053502 | Retaining Strap |
| 15 | 514053491 | RETAINING STRAP - Call your local BRP dealership |
| 16 | 514053498 | Retaining Strap |
| 17 | 514053643 | Spring |
| 18 | 514054513 | Bumper |
| 20 | 514054522 | Spring Bracket This part replaces 514054391. |
| 21 | 514054984 | RH Deflector This part replaces 514054433. |
| 22 | 514054420 | LH DEFLECTOR - Call your local BRP dealership |
| 23 | 514054421 | LH Insulated Wool |
| 24 | 514054711 | RH Insulating Wool |
| 25 | 390910000 | Pop Rivet 3/16” |
| 26 | 514054529 | Lower Stopper |
| 27 | 514054606 | Upper Stopper |
| 28 | 415107100 | Spring |
| 29 | 514054155 | Spring Bracket |
| 30 | 390402200 | Pop Rivet 3/16" |
| 31 | 514054767 | Exhaust Muffler Support |
| 32 | 293150096 | Hemlock Rivet, 6.5 mm |
