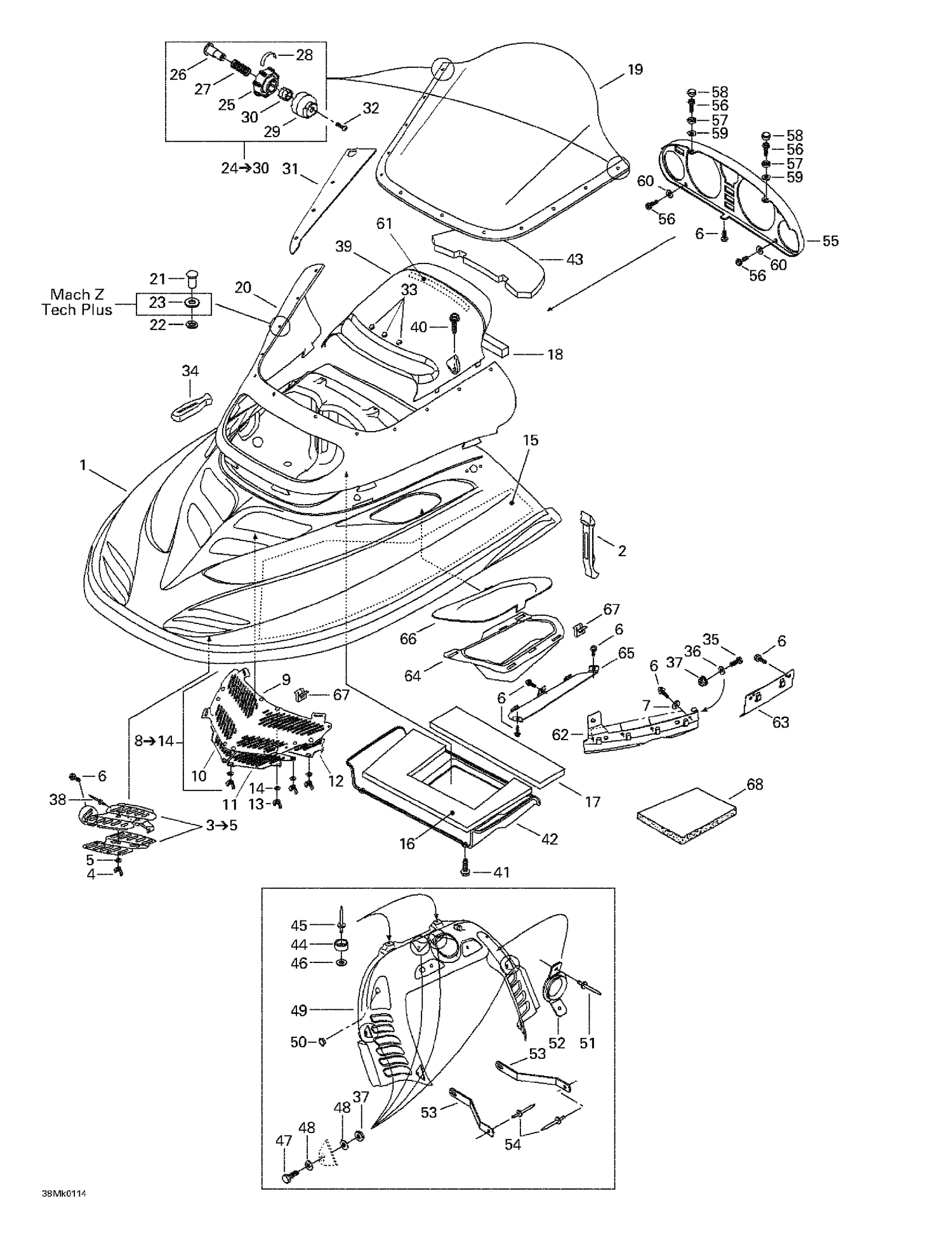

09- Cab, Console
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302484 | Deep Black, Hood |
| 2 | 517302152 | Hood Latch |
| 4 | 414070300 | Wing Nut M5 |
| 5 | 234451418 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 6 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 7 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 9 | 517289100 | Central Grille |
| 10 | 517289103 | RH Front Sliding Grille |
| 11 | 517289104 | LH Front Sliding Grille |
| 12 | 517289105 | RH Rear Sliding Grille |
| 13 | 414070300 | Wing Nut M5 |
| 14 | 234451418 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 15 | 517302184 | LH Side Foam |
| 16 | 415045300 | Center Foam |
| 17 | 415045400 | Rear Foam |
| 18 | 415045500 | Deflector Foam |
| 20 | 517302076 | Windshield Support |
| 22 | 732610072 | Push Nut |
| 34 | 570023800 | Windshield Latch |
| 35 | 207151644 | Hex. Screw M5 X 16 |
| 36 | 420845330 | WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270. |
| 37 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 38 | 390402400 | Pop Rivet 3/16" |
| 39 | 572107300 | Air Intake Deflector |
| 40 | 414745900 | Tuflock Phillips Plastic Screw |
| 41 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 42 | 572087800 | Plate |
| 43 | 415123100 | Filter Foam |
| 44 | 415018100 | Rubber Stopper |
| 45 | 390401600 | Pop Rivet 1/8" |
| 46 | 293150007 | WASHER - Call your local BRP dealership |
| 47 | 207152044 | Hex. Screw M5 X 20 |
| 48 | 391301600 | Washer |
| 49 | 517302249 | Console |
| 50 | 572072100 | CAP - Call your local BRP dealership |
| 51 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 52 | 517296800 | Rope Guide |
| 53 | 517296900 | Bracket |
| 54 | 390910000 | Pop Rivet 3/16” |
| 55 | 572098600 | Gauge Support |
| 56 | 241140060 | Screw K40 X 10 |
| 57 | 414436800 | RETAINER CAP - Call your local BRP dealership |
| 58 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 59 | 234042600 | Flat Washer 4 mm, Stainless |
| 60 | 517124300 | Washer |
| 61 | 415110900 | VELCRO 1/2? - Call your local BRP dealership |
| 62 | 517301200 | RH Hood Guide |
| 63 | 517302108 | Hood Guide |
| 64 | 517302155 | Inlet Duct |
| 65 | 517302414 | Plate |
| 66 | 517302156 | RH Grille |
| 67 | 517302785 | Edge Clip This part replaces 517302183. |
| 68 | 414632400 | Acoustic Foam |
| 415045100 | Mousse | Latérale DR 415045100 |
| 415045100 | RH | Side Foam 415045100 |
| 517289106 | LH | Rear Sliding Grille 517289106 |
| 517301300 | LH | Hood Guide 517301300 |
| 517302167 | Grille | GA 517302167 |
| 517302167 | LH | Grille 517302167 |
| 517302208 | LH | Front Grille Ass'y 517302208 |
| 517302486 | 2000 | Yellow, Hood 517302486 |
