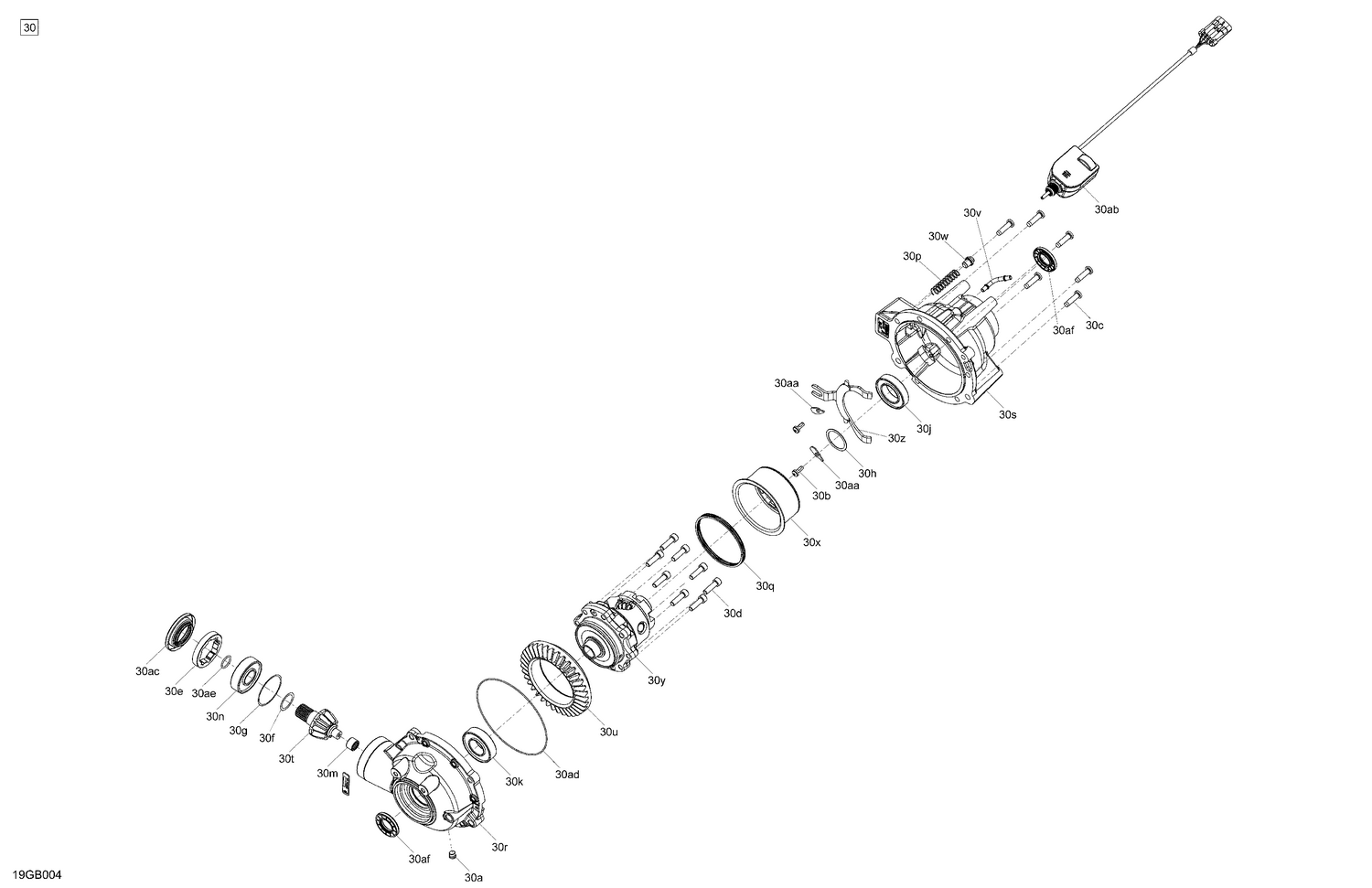

04- Drive - Front - Differential Parts
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705501885 | Drain Plug |
| 30aa | 705402783 | Retaining Ring |
| 30ab | 705402959 | Shifter Actuator |
| 30ac | 705401615 | Oil Seal |
| 30ad | 705401616 | Seal |
| 30ae | 705401617 | O'Ring |
| 30b | 705402845 | Torx Screw M6 X 16 |
| 30c | 705401601 | Screw |
| 30d | 705401602 | Screw |
| 30e | 705401603 | Nut |
| 30f | 705401769 | Shim |
| 30g | 705401770 | Shim |
| 30h | 705402846 | Shim |
| 30j | 705402847 | Ball Bearing |
| 30k | 705401606 | Ball Bearing |
| 30m | 705402848 | Ball Bearing |
| 30n | 705402849 | Ball Bearing |
| 30p | 705402850 | Compression Spring |
| 30q | 705402851 | Wave Spring |
| 30r | 705401792 | Front Pinion Cover |
| 30s | 705402719 | Front Cover |
| 30t | 705402841 | Pinion 10 Teeth |
| 30u | 705402842 | Gear 36 Teeth |
| 30v | 705401613 | Vent Valve |
| 30w | 705402854 | Plunger |
| 30x | 705402855 | Shift Collar |
| 30y | 705402789 | Differantial 0 CIP |
| 30z | 705402785 | Shift Fork |
