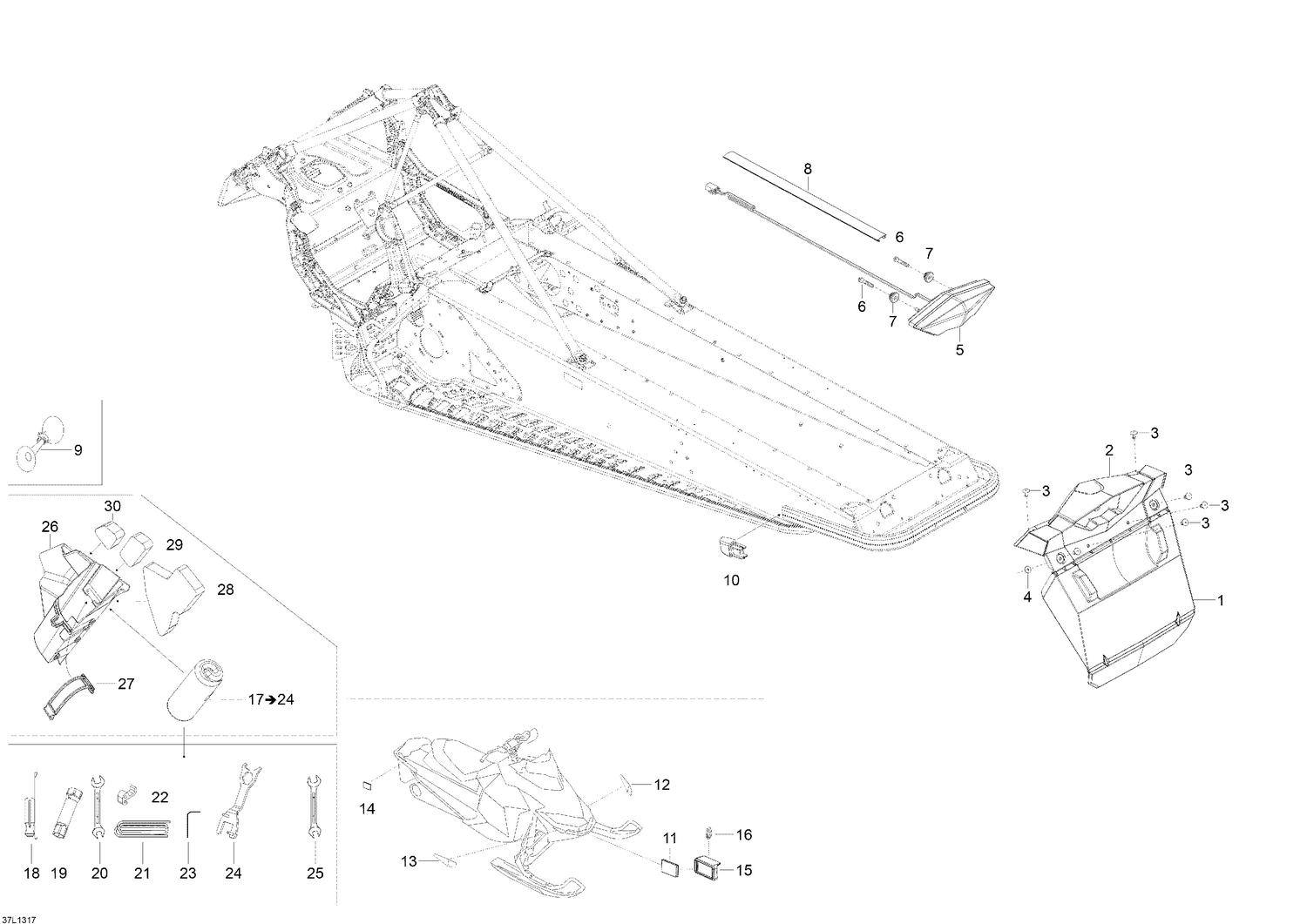

09- Utilities
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001070 | Snow Guard |
| 2 | 511000583 | Light Cover |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 520000967 | Rear Light |
| 6 | 250000451 | Torx Screw K40 x 20 |
| 7 | 705014429 | Stopper_Rubber This part replaces 705003666. |
| 8 | 520001157 | Trim |
| 9 | 549011291 | Horn |
| 10 | 520000840 | BLACK CAP - Call your local BRP dealership |
| 11 | 21118 | Reflector, Bright |
| 12 | 520000719 | Reflector Front LH |
| 13 | 520000718 | Reflector Front RH |
| 14 | 21121 | REFLECTOR (YELLOW) - Call your local BRP dealership |
| 15 | 520000871 | Reflector Support |
| 16 | 27120 | TIE RAP - Call your local BRP dealership |
| 18 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 19 | 529000046 | Socket Wrench |
| 20 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 21 | 412500200 | Starter Rope |
| 22 | 529000060 | Starter Grip |
| 23 | 520001142 | Key |
| 24 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 25 | 34017 | Wrench 17/19 |
| 26 | 520000842 | Tool Kit Rack |
| 27 | 520000528 | Latch |
| 28 | 520001059 | Foam |
| 29 | 520001061 | Foam |
