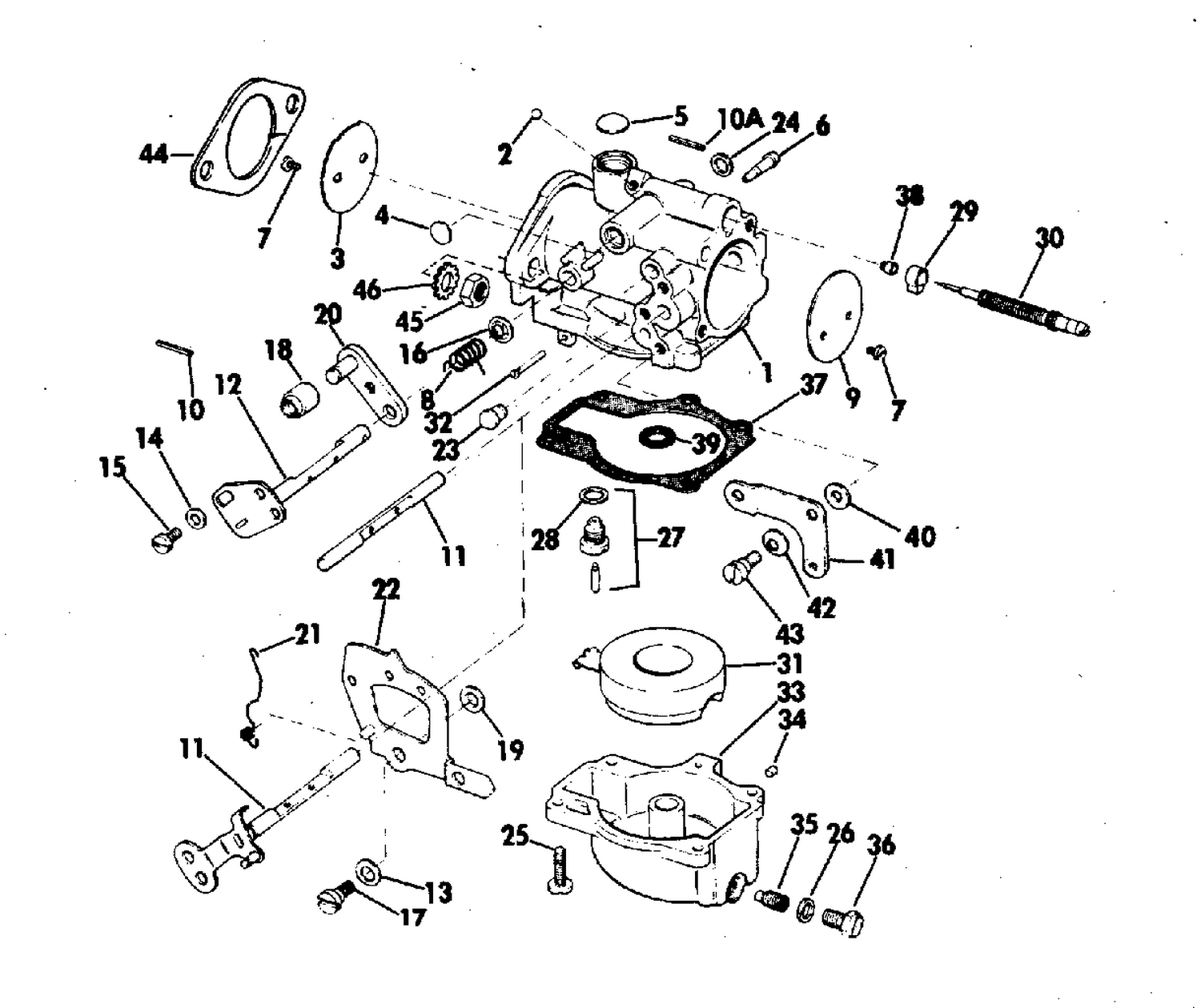

| Ref | Part Number | Description |
|---|
| 1 |
0385423 |
BODY ASSY., Upper and lower |
| 1 |
0385424 |
BODY ASSY., Middle |
| 9 |
0322182 |
CHOKE VALVE This part replaces 0313359. |
| 11 |
0321798 |
CHOKE SHAFT This part replaces 0313358. |
| 29 |
0315232 |
RETAINER , Needle valve stbd |
| 30 |
0385125 |
NEEDLE VALVE, Slow speed |
| 33 |
0383318 |
FLOAT CHAMBER ASSEMBLY |
| 33 |
0383319 |
FLOAT CHAMBER ASSEMBLY |
| 35 |
0317021 |
ORIFICE PLUG (57C) |
| 36 |
0307832 |
PLUG, Screw |
| 38 |
0314166 |
BEARING, Needle valve |
| 40 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 41 |
0315923 |
BELLCRANK, Choke |
| 44 |
0325092 |
GASKET This part replaces 0314477. |
| 0385128 |
0385128 |
CARBURETOR ASSY., Lower |
| 0385129 |
0385129 |
CARBURETOR ASSY., Middle |
| 0385130 |
0385130 |
CARBURETOR ASSY., Lower |
