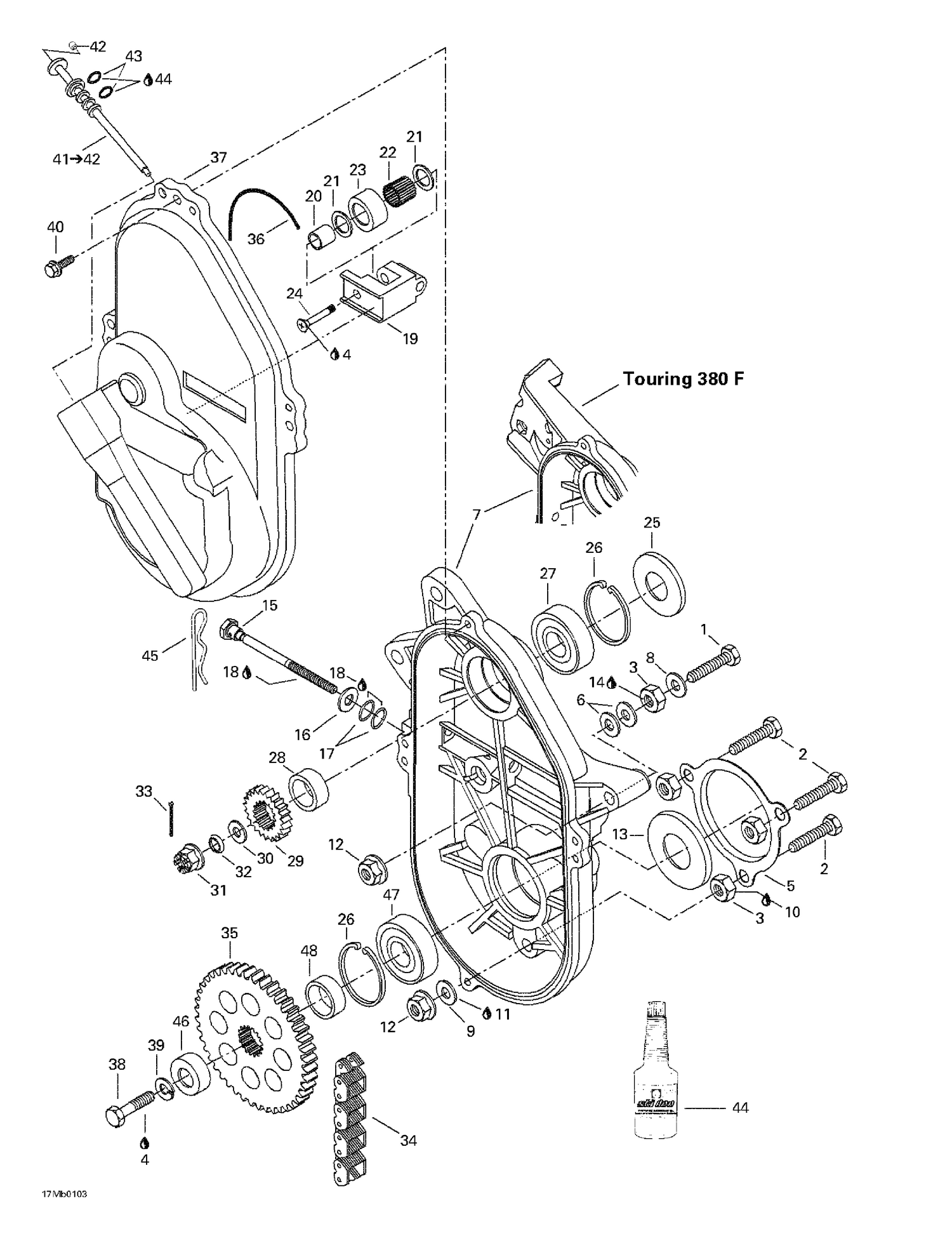

| Ref | Part Number | Description |
|---|
| 1 |
207107044 |
Hex. Screw M10 x 70 |
| 2 |
207104544 |
Hex. Screw M10 x 45 |
| 3 |
504083800 |
Spacer |
| 4 |
293800005 |
Loctite 271, 10 ml |
| 5 |
501022100 |
Protector |
| 6 |
504073700 |
WASHER - Call your local BRP dealership |
| 8 |
503183800 |
Washer |
| 9 |
234001460 |
Copper Flat Washer 10 mm |
| 10 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 11 |
219704462 |
ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| 12 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 13 |
504152076 |
Seal Oil Ass'y This part replaces 581101700. |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
732601311 |
ADJUSTING SCREW - Call your local BRP dealership |
| 16 |
234001410 |
Flat Washer 10 mm |
| 17 |
414484400 |
O-Ring |
| 18 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 19 |
504081000 |
MACHINED TENSIONER - Call your local BRP dealership |
| 20 |
504080200 |
SPACER - Call your local BRP dealership |
| 21 |
504080300 |
WASHER - Call your local BRP dealership |
| 22 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 23 |
414531300 |
ROLLER - Call your local BRP dealership |
| 24 |
732601144 |
SCREW - Call your local BRP dealership |
| 25 |
414882800 |
OIL SEAL - Call your local BRP dealership |
| 26 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 27 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 28 |
504093400 |
Shim |
| 29 |
504070100 |
Sprocket, 18 Teeth |
| 30 |
504087100 |
Washer |
| 31 |
232210414 |
HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 32 |
417000900 |
Spring Washer |
| 33 |
371801300 |
Cotter Pin |
| 34 |
504151882 |
DRIVING CHAIN 70 M - Call your local BRP dealership |
| 35 |
504070900 |
Sprocket 44Th |
| 36 |
414362300 |
O-Ring |
| 37 |
080037100 |
CASTING COVER - Call your local BRP dealership |
| 38 |
207102544 |
Hex. Screw M10 X 25 |
| 39 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 40 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 42 |
206540490 |
SCREW-SET SOCKET DIN.916 - Call your local BRP dealership |
| 43 |
414969400 |
O-RING - Call your local BRP dealership |
| 45 |
414575600 |
Hair Pin |
| 46 |
501026200 |
CAP - Call your local BRP dealership |
| 47 |
293350115 |
Ball Bearing This part replaces 504152006. |
