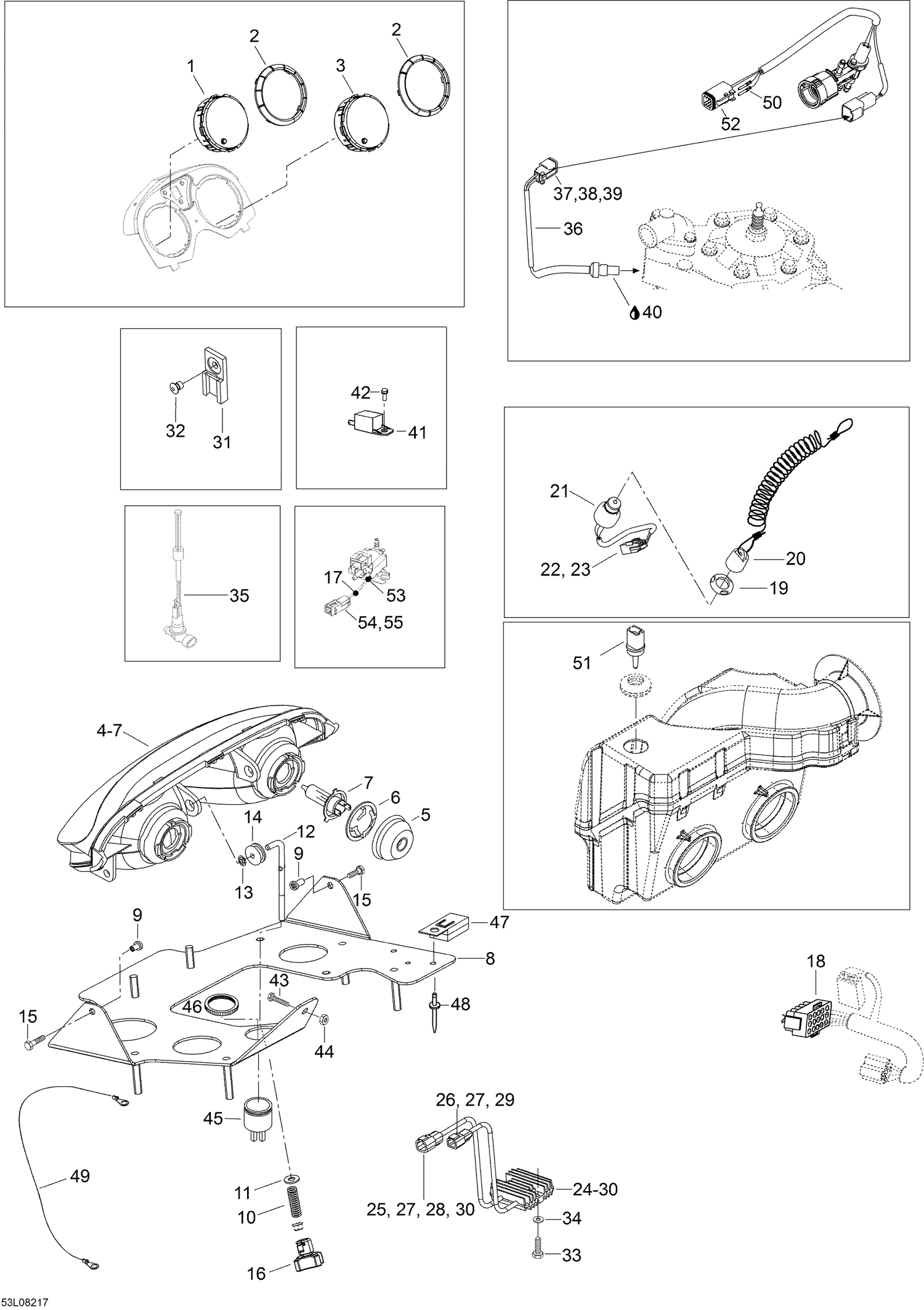

| Ref | Part Number | Description |
|---|
| 1 |
515176477 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176478 |
TACHOMETER - Call your local BRP dealership |
| 5 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 6 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 8 |
605354748 |
Stöd, halogenlampa |
| 9 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 10 |
415100600 |
SPRING - Call your local BRP dealership |
| 11 |
20003 |
Fjäder bricka A6,4 |
| 12 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 13 |
36084 |
Locking plate |
| 14 |
415100800 |
Grommet - Call your local BRP dealership |
| 15 |
40231 |
Hex. screw M5 x 30 |
| 16 |
515175975 |
HANDLE - Call your local BRP dealership |
| 17 |
42066 |
Skydd slang |
| 19 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 20 |
515178284 |
Dess. This part replaces 515176461. |
| 22 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 23 |
42271 |
Male connector housing (6 circuits) |
| 25 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 26 |
278001674 |
Male terminal housing (2 circuits) |
| 27 |
515175568 |
Female terminal |
| 28 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 29 |
278001672 |
Female lock (2 circuits) |
| 30 |
293000052 |
Sealing Cap |
| 31 |
270000141 |
Clip This part replaces 515175917. |
| 32 |
36005 |
RIVET 4.8X12 AL BLACK,(1 PAC <=> 50 PC) |
| 33 |
40031 |
Hex. screw M6 x 25 |
| 34 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 35 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 37 |
Not |
Available As Spare Part - Female terminal housing (4 circuits) |
| 38 |
278000632 |
Female connector |
| 39 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 40 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 41 |
710010053 |
RELAY This part replaces 410113200. |
| 42 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 43 |
40029 |
Hex. socket screw M6 x 16 |
| 44 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 45 |
515176035 |
HORN - Call your local BRP dealership |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
42272 |
Support, fuse housing |
| 48 |
36491 |
Niitti |
| 49 |
605153857 |
Ground wire |
| 50 |
278000632 |
Female connector |
| 51 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 52 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 53 |
515176473 |
Lämmitinelementti, Rave-venttiili |
| 54 |
515175654 |
Male terminal housing (2 circuits) |
