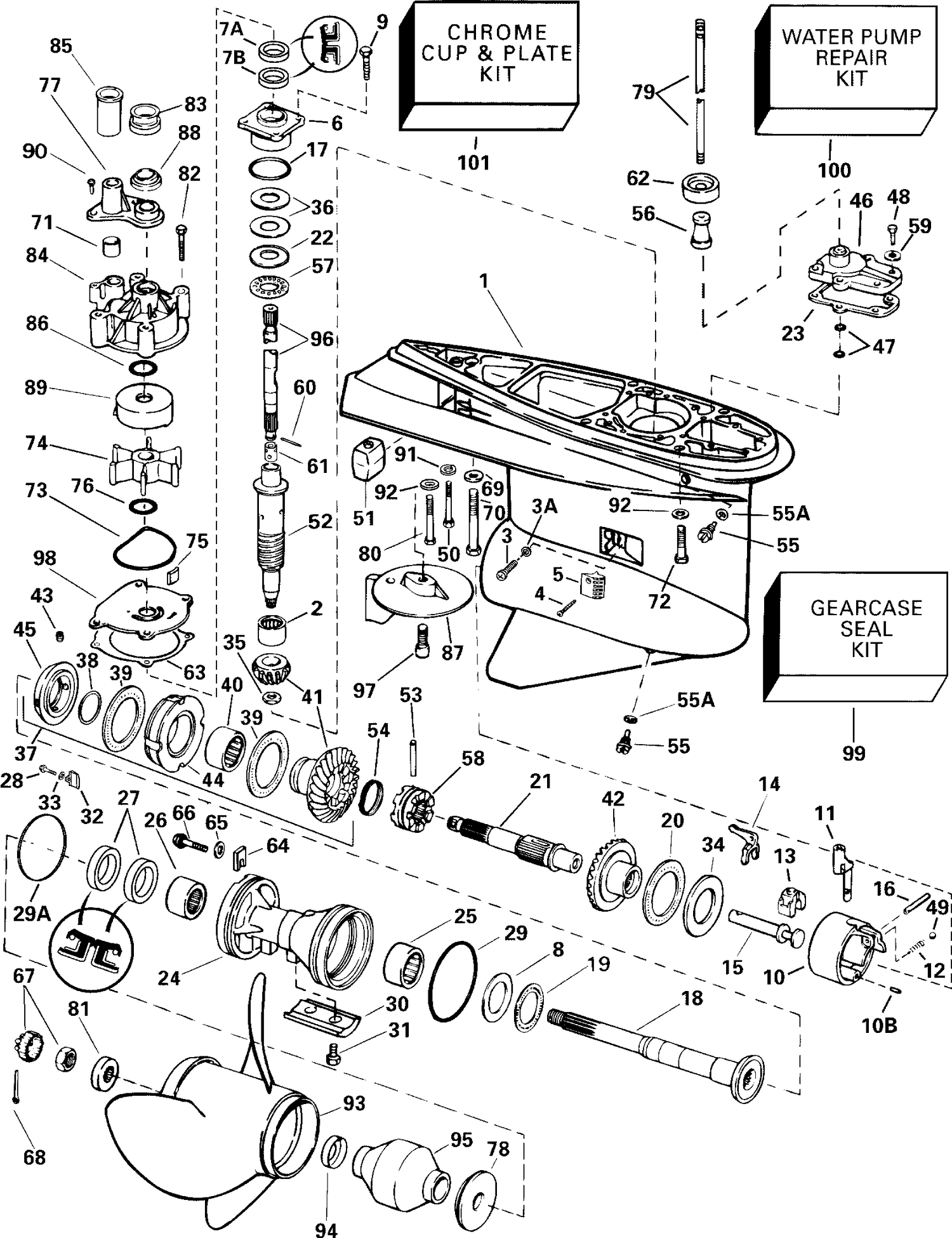

GEARCASE - COUNTER ROTATION - FCX, FC MODELS
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 72 | 0331999 | SCREW, Gearcase housing |
| 79 | 0342995 | SHIFT ROD |
| 80 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 87 | 0338743 | TRIM TAB |
| 93 | PROPELLER | Ref: 94 0313926 *Propeller Hub Sleeve 0313926 |
| 96 | 5000624 | DRIVESHAFT Assembly, Upper |
| 97 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 99 | 5006373 | GEARCASE SEAL KIT This part replaces 5000411. |
| 100 | 5001595 | Water Pump Repair Kit |
| 5009324 | Gcase/Coro/Wht/Os | This part replaces 5001615. 5009324 |
