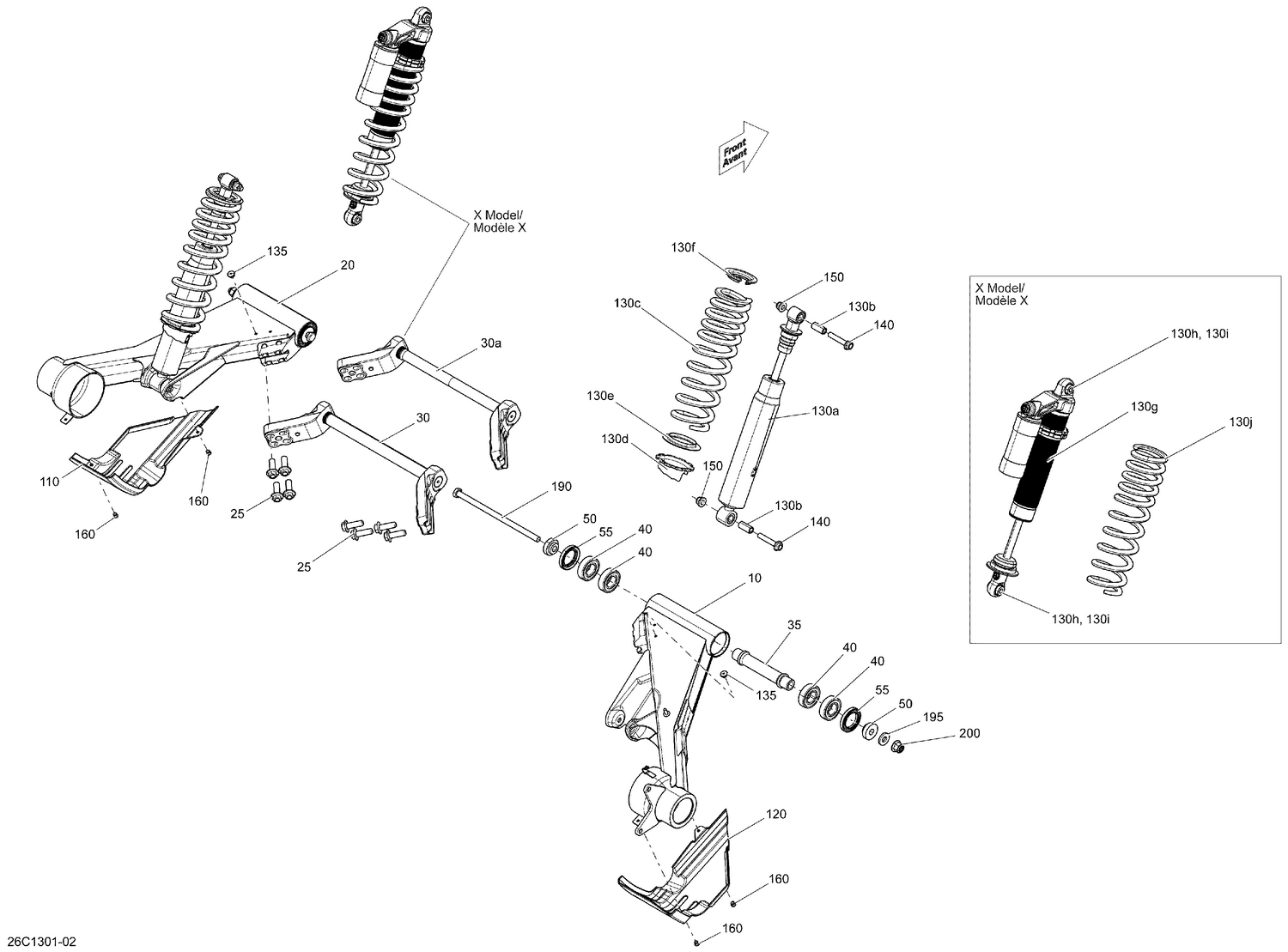

| Ref | Part Number | Description |
|---|
| 10 |
703500965 |
RH Swing Arm This part replaces 706001318. |
| 20 |
703500964 |
LH Swing Arm This part replaces 706001319. |
| 25 |
207523544 |
Hex. Flange Screw M12 X 35, Scotch Grip |
| 30 |
706001500 |
Sway Bar Ass'y This part replaces 706001322. |
| 30a |
XXX |
Not Available As Spare Parts |
| 35 |
706001529 |
Bushing This part replaces 706000616. |
| 40 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 50 |
706001350 |
Spacer This part replaces 706000629. |
| 55 |
293200094 |
Seal |
| 110 |
706000630 |
LH Joint Protector |
| 120 |
706000814 |
RH Joint Protector |
| 130b |
715900122 |
Bushing |
| 130d |
706000910 |
Adjustment Ring |
| 130e |
706000911 |
Protector Ring |
| 130f |
706000567 |
Spring Stopper |
| 130g |
XXX |
Not Available As Spare Parts |
| 130h |
XXX |
Not Available As Spare Parts |
| 130i |
XXX |
Not Available As Spare Parts |
| 130j |
XXX |
Not Available As Spare Parts |
| 135 |
390406500 |
Pop Rivet 3/16" |
| 140 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 150 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 160 |
293150104 |
Pop Rivet 3/16" |
| 190 |
250001031 |
Hex. Cap Screw M12 X 241 This part replaces 250000515. |
| 195 |
250200120 |
Flat Washer M12 |
