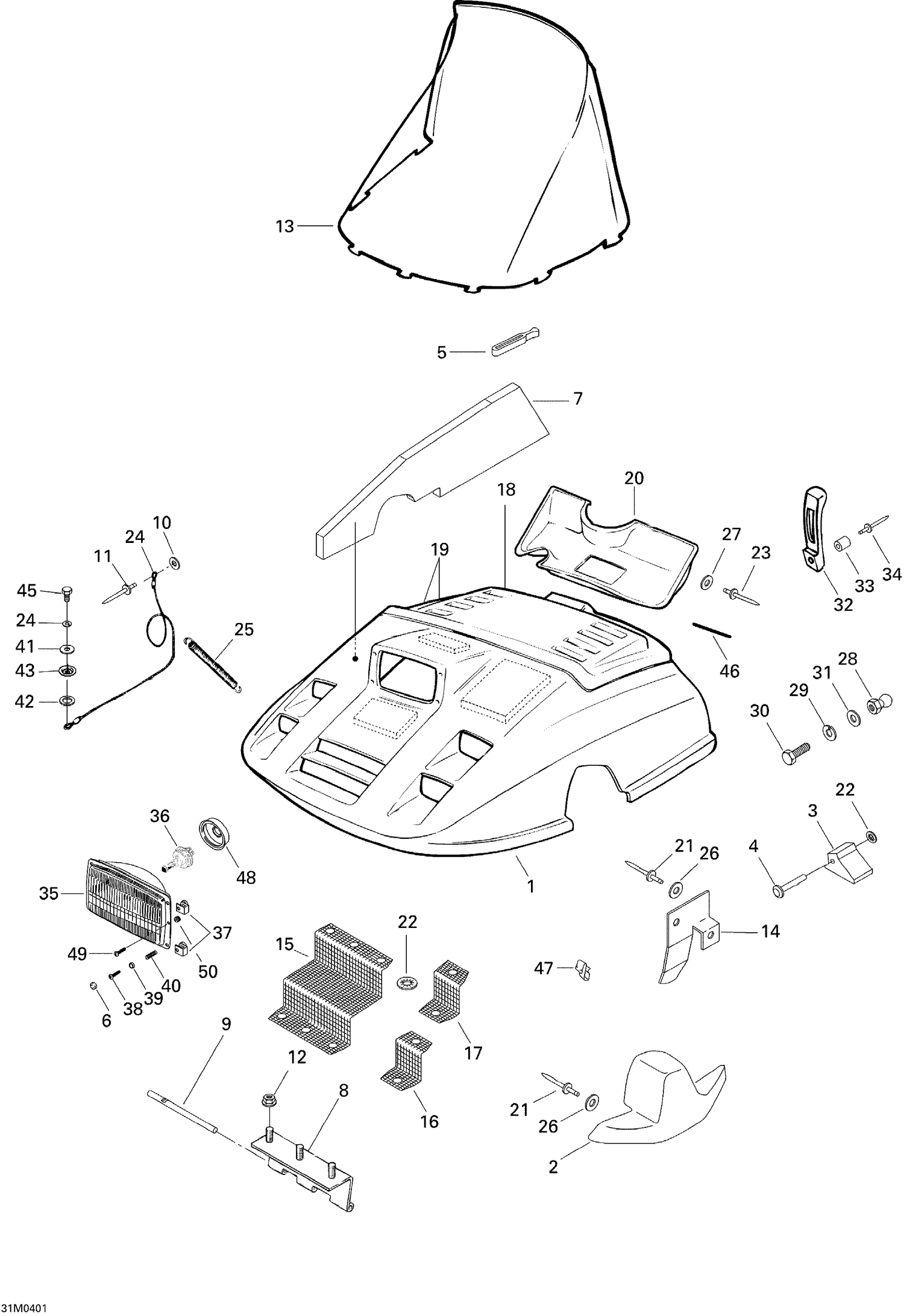

09- Cab, Console
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302725 | Black Hood |
| 1 | 572048102 | Yellow Hood |
| 2 | 572038800 | LH Hood Moulding |
| 2 | 572038900 | RH Hood Moulding |
| 3 | 570038700 | Hood Guide |
| 4 | 390907000 | Steel Rivet |
| 5 | 570023800 | Windshield Latch |
| 6 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 6 | 414768500 | Snap Cap (Yellow) |
| 7 | 414867100 | LH Foam |
| 7 | 517302204 | RH Foam |
| 8 | 517182200 | Welded Hinge |
| 9 | 517279800 | Pivot Pin |
| 10 | 517124300 | Washer |
| 11 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 414829400 | Windshield |
| 14 | 517251500 | LH Hood Guide |
| 14 | 517261300 | RH Hood Guide |
| 15 | 517251700 | Paint Central Front Grill |
| 16 | 517251800 | Front Grill |
| 17 | 517270600 | RH Up Side Grill |
| 17 | 517270700 | LH Up Side Grill |
| 18 | 414829600 | Side Foam |
| 19 | 414829800 | Front Foam |
| 20 | 414804000 | AIR DUCT - Call your local BRP dealership |
| 21 | 390407200 | Pop Rivet 3/16” |
| 22 | 389804300 | Push Nut |
| 23 | 293150121 | Pop Rivet 3/16" |
| 23 | 390400400 | Pop Rivet 3/16" (Yellow) |
| 24 | 414581400 | Retainer Cable |
| 25 | 414763300 | Spring |
| 26 | 517225900 | Flat Washer |
| 27 | 517225900 | Flat Washer |
| 28 | 517245800 | Knob |
| 29 | 234151401 | Lock Washer 5 mm |
| 30 | 207151444 | Hex. Screw M5 X 14 |
| 31 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 32 | 570025900 | BLACK LATCH - Call your local BRP dealership |
| 33 | 293900112 | Bushing This part replaces 517245900. |
| 34 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 36 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 37 | 572378700 | Protector Nut |
| 38 | 243244040 | PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 39 | 414436800 | RETAINER CAP - Call your local BRP dealership |
| 40 | 517166000 | SPRING - Call your local BRP dealership |
| 41 | 234081410 | Flat Washer 8 mm |
| 42 | 420960860 | RUBBER WASHER - Call your local BRP dealership |
| 43 | 420827140 | COWL COVER - Call your local BRP dealership |
| 44 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 45 | 207182544 | Hex. Screw M8 X 25 |
| 46 | 219704365 | Was 293200017 Neoprene Seal |
| 47 | 414095100 | Clip |
| 48 | 410607100 | PROTECTOR CAP - Call your local BRP dealership |
| 49 | 410603300 | Slotted Screw |
