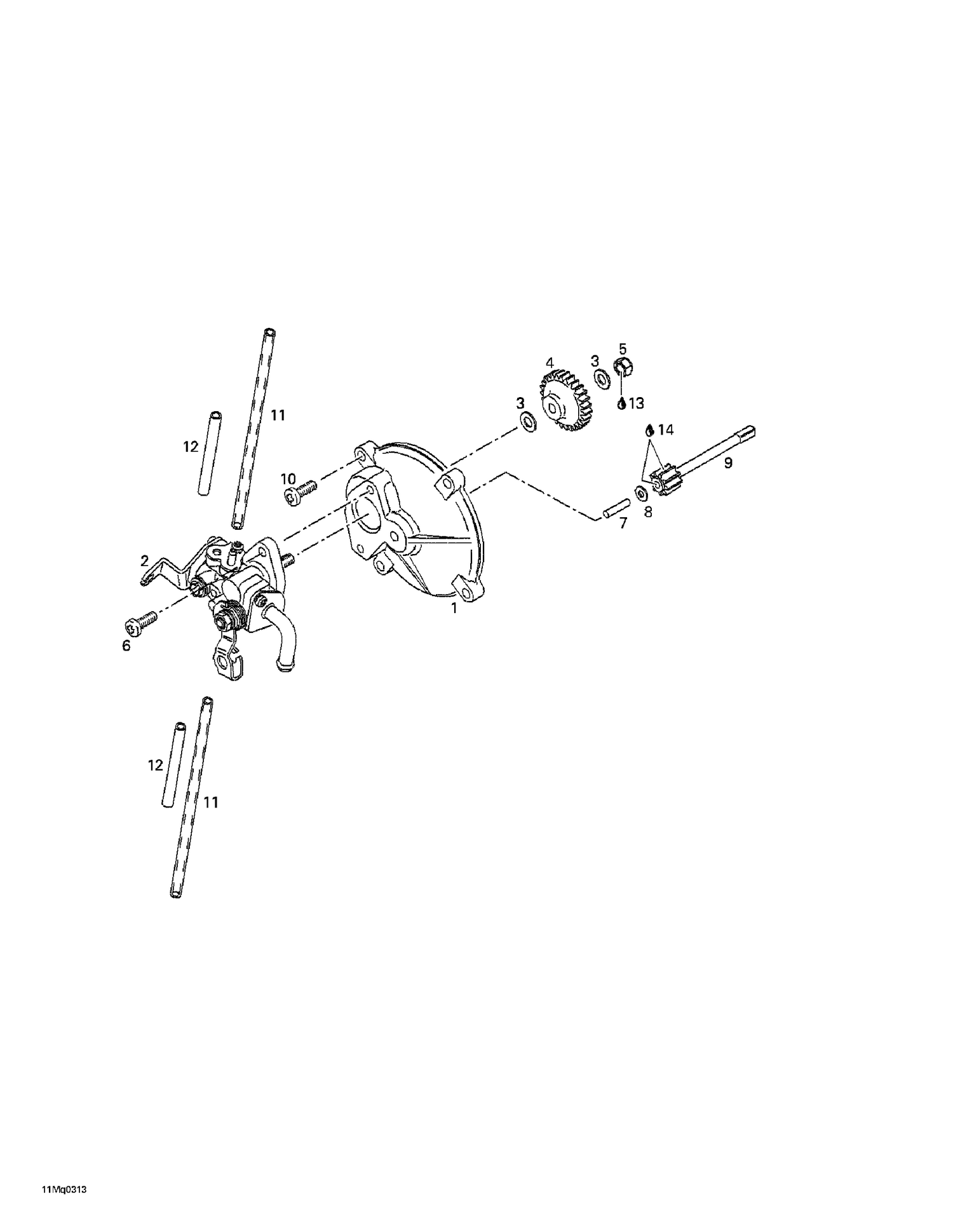

02- Oil Injection System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420910160 | PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 2 | 420889070 | OIL PUMP ASSY - Call your local BRP dealership |
| 3 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 4 | 420935930 | Oil Pump Gear, 27 Teeth |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 420841971 | Screw |
| 7 | 420832260 | NEEDLE PIN - Call your local BRP dealership |
| 8 | 420244072 | Flat Washer 4 This part replaces 420244073. |
| 9 | 420935970 | Gear, 9 Teeth |
| 10 | 420841976 | SCREW - Call your local BRP dealership |
| 11 | 219704404 | Oil Hose 1500Mm Long |
| 12 | 420960728 | Isolation Line |
| 13 | 293800060 | Loctite 243, 10 ml |
