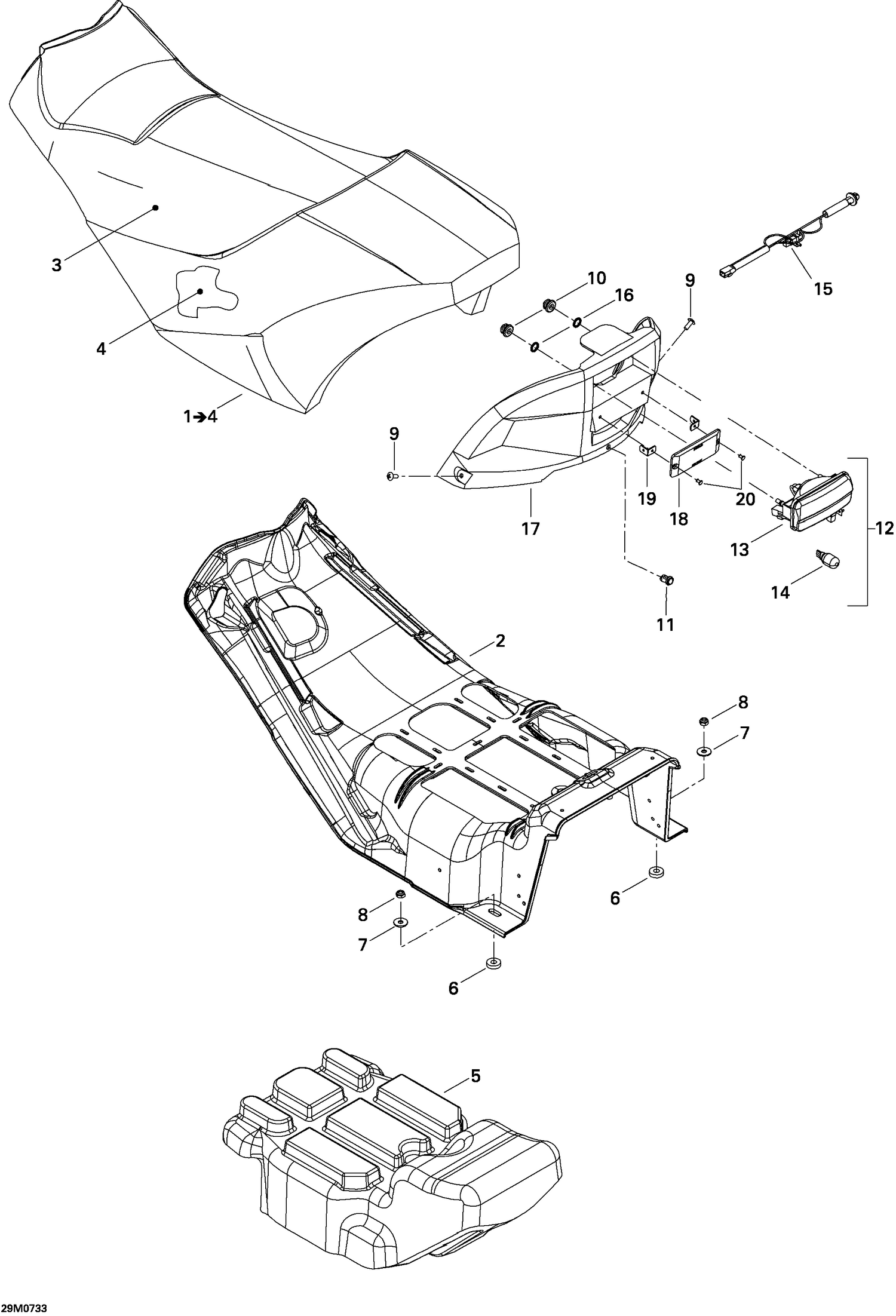

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
510004658 |
SEAT BASE - Call your local BRP dealership |
| 3 |
510004615 |
Seat Cover |
| 4 |
510004321 |
SEAT FOAM - Call your local BRP dealership |
| 5 |
510004161 |
FOAM - Call your local BRP dealership |
| 6 |
510004418 |
WASHER - Call your local BRP dealership |
| 7 |
234082410 |
Flat Washer 8 mm |
| 8 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 9 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 10 |
705014429 |
Rubber Stopper This part replaces 705001119. |
| 11 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
710000652 |
Rear Lens Box |
| 14 |
710000653 |
BULB - Call your local BRP dealership |
| 15 |
511000508 |
WIRING HARNESS - Call your local BRP dealership |
| 16 |
293300006 |
O-Ring |
| 17 |
510004627 |
Trunk |
| 18 |
510004350 |
LENS - Call your local BRP dealership |
| 19 |
510004443 |
ANGLE - Call your local BRP dealership |
