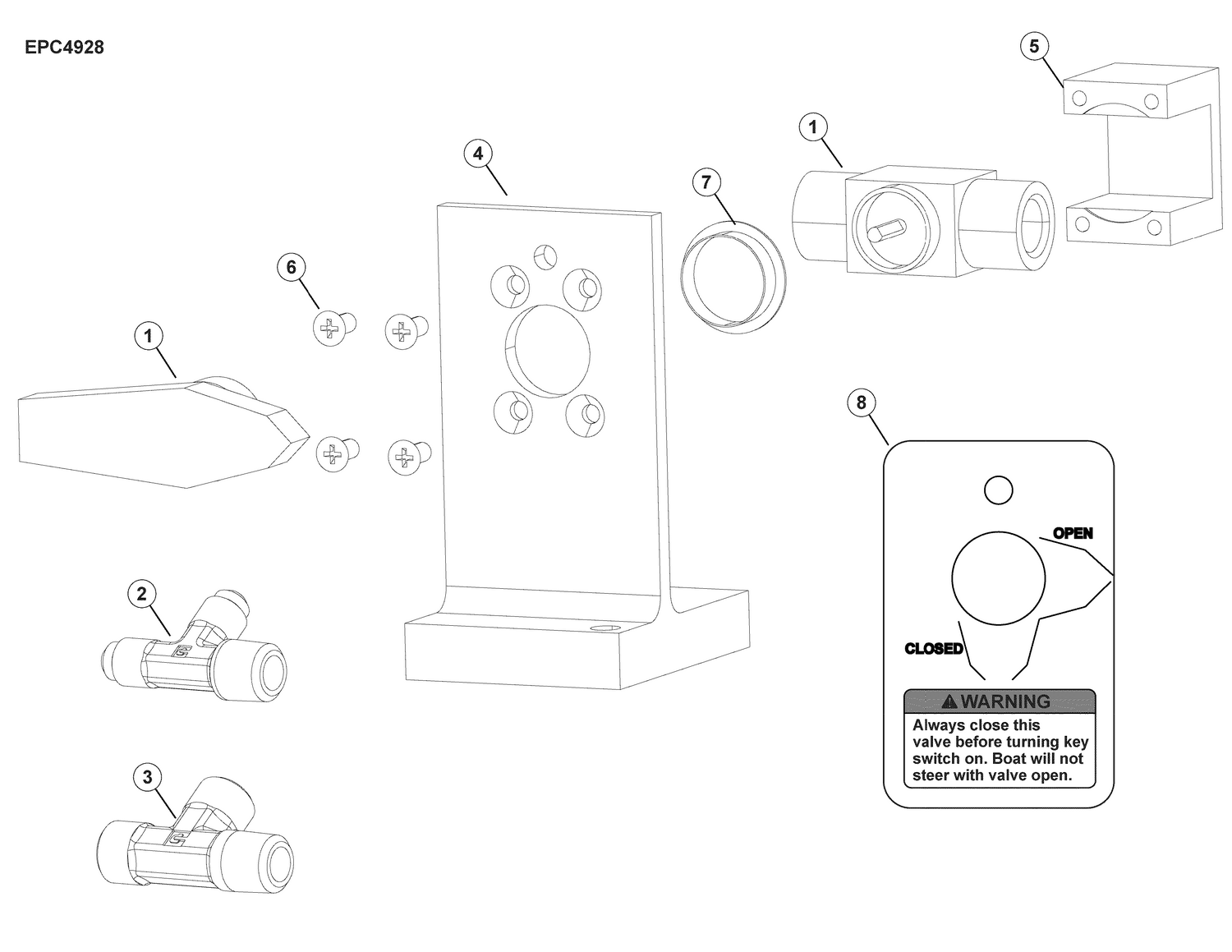

ALIGNMENT VALVE KIT
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0360909 | BRACKET |
| 5 | 0361220 | RETAINER |
| 6 | 0361221 | SCREW |
| 7 | 0361267 | BUSHING |
| 5000 | 503195569 | Center Shock |
| 5010 | 503193291 | Spring 220 MM-25 N/MM |
| 5020 | 5346754 | Shock protector |
| 5040 | 230078 | Adjusting Cam |
| 5050 | 503195685 | Spacer |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503195134 | Glide Bearing |
| 5090 | 5446652 | Bushing |
| 5150 | 40134 | Screw Socket HD.DIN 912 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500 | 503196699 | Shock Absorber Hpg Rear |
| 5510 | 503196071 | Spring 330 MM-50 N/MM |
| 5540 | 230078 | Adjusting Cam |
| 5550 | 503195685 | Spacer |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503195134 | Glide Bearing |
| 5590 | 40134 | Screw Socket HD.DIN 912 |
