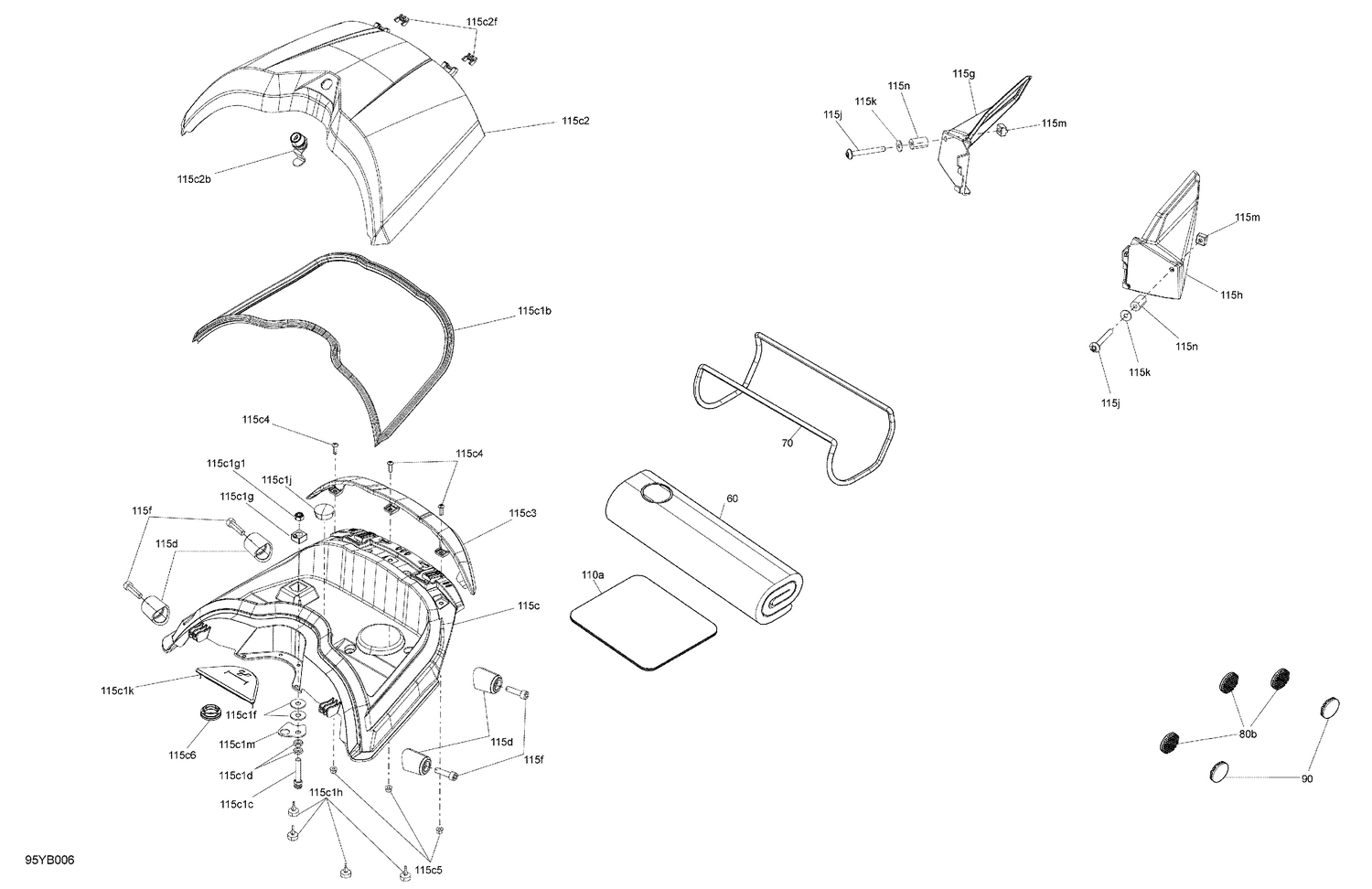

09- Miscellaneous - Utilities
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 520002507 | Tool Kit |
| 70 | 520001574 | Strap |
| 80b | 293740028 | Dual Lock Velcro Washer 3/4" |
| 90 | 293740028 | Dual Lock Velcro Washer 3/4" |
| 110a | 705009823 | Protector |
| 115c1b | 293250336 | EXTRUSION - Call your local BRP dealership |
| 115c1c | 708001990 | LUG - Call your local BRP dealership |
| 115c1d | 232180600 | Hex. Jam Nut M8 |
| 115c1f | 234082410 | Flat Washer 8 mm |
| 115c1g1 | 232581200 | Hex. Elastic Nut M8 Brass |
| 115c1h | 708000759 | Rubber Stopper |
| 115c1j | 414916600 | Black, Nylon Cap |
| 115c1k | 708301604 | Backrest Trim |
| 115c1m | 708001909 | Washer |
| 115c2b | 219800407 | Lock Kit |
| 115c2f | 708301727 | Opening Limiter |
| 115c3 | 708301416 | Trim |
| 115c4 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 115c5 | 233251434 | Flange Elastic Nut M5 |
| 115c6 | 710002926 | Grommet Boot |
| 115d | 708301525 | Frame Protector |
| 115f | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 115g | 708302067 | Black, RH Footrest Trim |
| 115h | 708302066 | Carbon Black, LH Footpeg |
| 115j | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 115k | 234062670 | Stainless Steel Flat Washer |
| 115m | 269500252 | M6 Nut Housing Ass'y |
