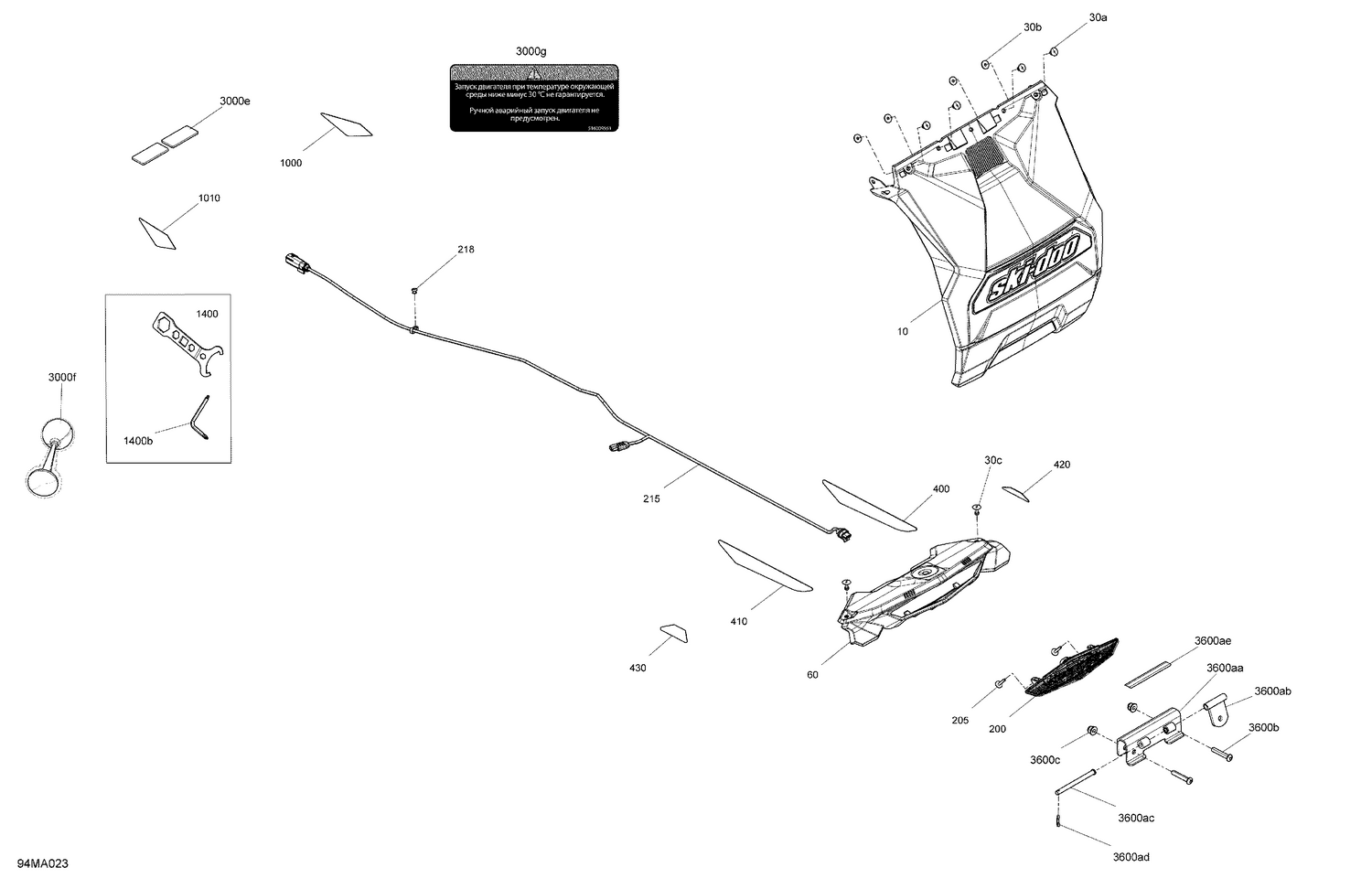

09- Miscellaneous - Utilities
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001863 | Snow Gard Ass'y |
| 30a | 293150104 | Pop Rivet 3/16" |
| 30b | 517124300 | Washer |
| 30c | 293150100 | Pop Rivet 3/16" |
| 60 | 520001487 | Light Fairing |
| 200 | 520001143 | Rear Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178822 | Rear Light Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 420 | 520001862 | Amber, LH Rear Reflector |
| 430 | 520001861 | Amber, LH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3000e | 520000271 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 3600aa | 511000768 | Support |
| 3600ab | 511000521 | Hitch Plate Welded |
| 3600ac | 511001451 | Lock Pin |
| 3600ad | 371800200 | Cotter Pin |
| 3600ae | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 3600b | 205484546 | Socket Head Screw M8 X 45 |
