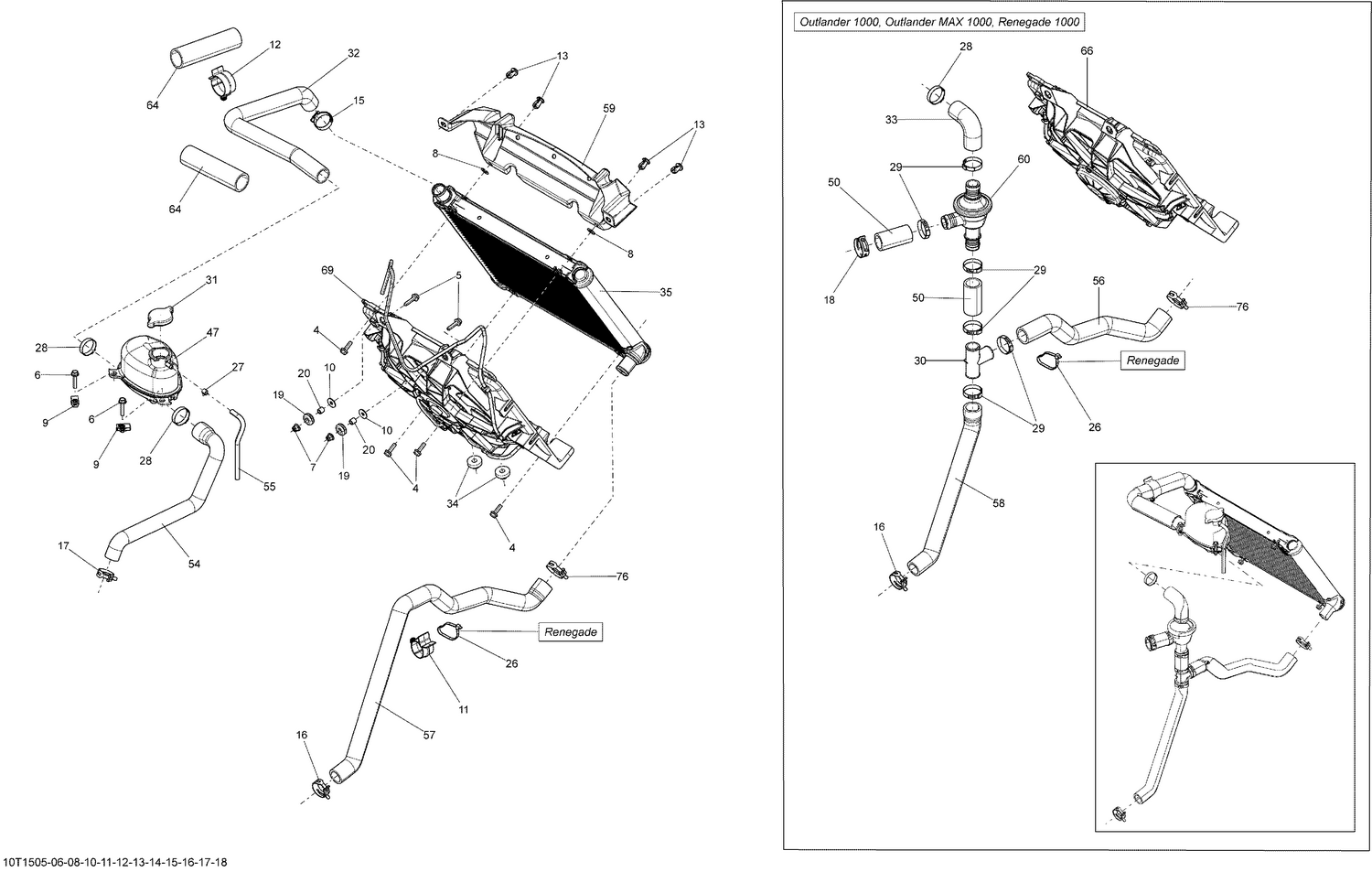

01- Cooling System _10T1505

Ref	Part Number	Description
4	207662034	Hex. Flange Screw M6 X 20
5	207662534	Hex. Flange Screw M6 X 25
6	207563034	Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034.
7	233261434	Flange Elastic Nut M6
8	234081410	Flat Washer 8 mm
9	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
10	250200082	Flat Washer
11	275500590	Retainer
12	275500590	Retainer
13	293150230	Tuflok Plastic Rivet This part replaces 293150089.
15	293650098	Norma Gear Clamp
16	293650108	Norma Spring Clamp
17	293650109	Norma Spring Clamp
18	XXX	Not Available As Spare Parts
19	709000582	Grommet This part replaces 293720053.
20	293900105	Bushing
26	XXX	Not Available As Spare Parts
27	414554800	Spring Clamp
28	509000162	Gear Clamp
29	XXX	Not Available As Spare Parts
30	XXX	Not Available As Spare Parts
31	709200207	Radiator Pressure Cap
32	709200278	Radiator Inlet Hose
33	XXX	Not Available As Spare Parts
34	709200285	Grommet
35	709200286	Radiator
47	709200297	Coolant Tank
50	XXX	Not Available As Spare Parts
54	709200310	Engine Outlet Hose
55	219704410	Polyurethane Hose 10000Mm Long
56	XXX	Not Available As Spare Parts
57	709200391	Radiator Outlet Hose
58	XXX	Not Available As Spare Parts
59	709200393	Air Deflector
60	XXX	Not Available As Spare Parts
64	219704428	Tubing 35 MM 1000MM Long
66	XXX	Not Available As Spare Parts
69	709200563	Fan Ass'y This part replaces 709200488.
