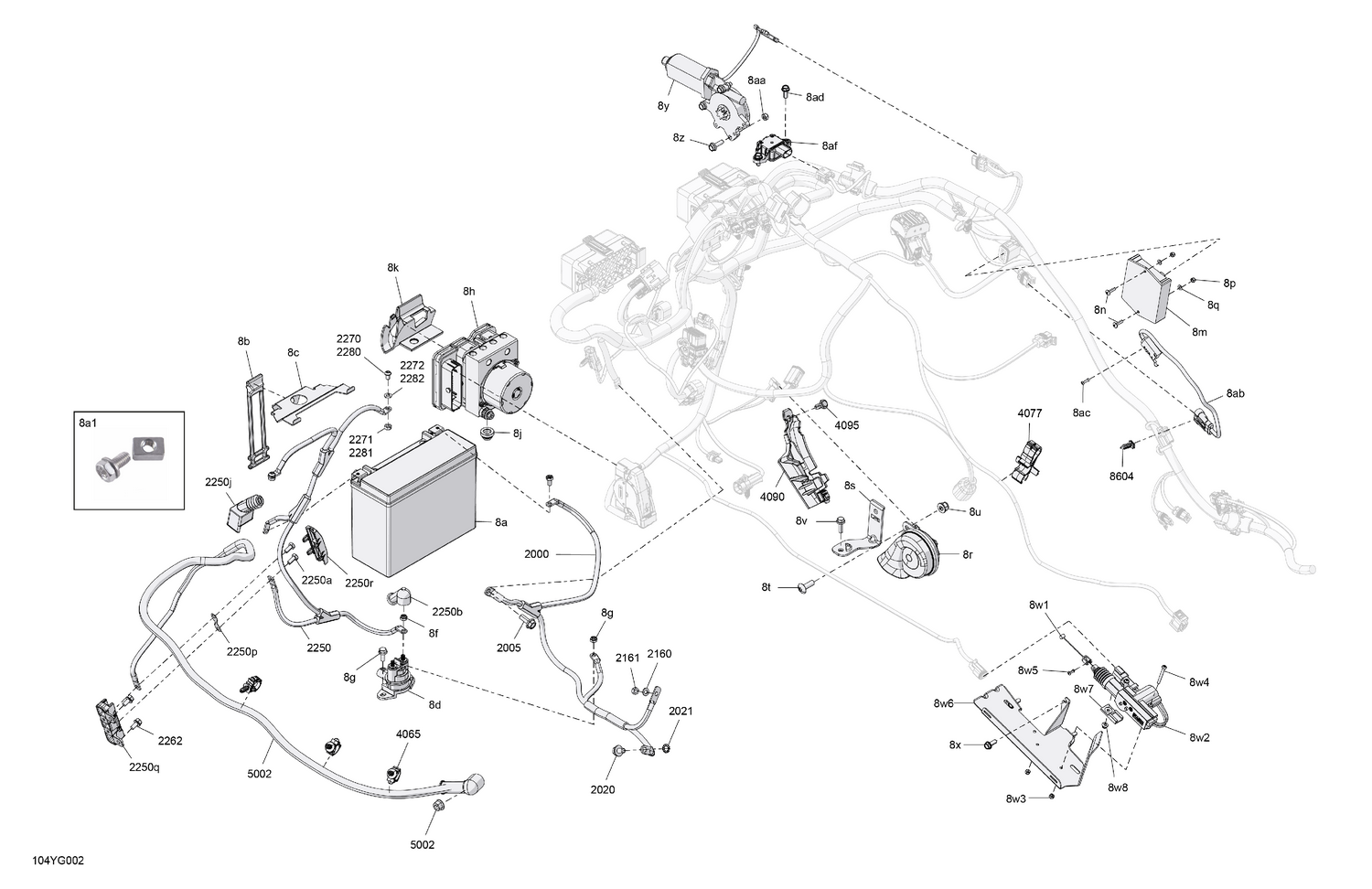

08- Electric - Sub Frame
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 8a1 | 250000282 | Battery Bolt Kit |
| 8aa | 232561434 | Elastic Stop Nut M6 |
| 8ab | 710001379 | Brake Pressure Switch Ass'y |
| 8ac | 293150150 | Pop Rivet |
| 8ad | 710012017 | Inertial Sensor |
| 8af | 210261650 | Hex. Flange Screw M6 X 16 |
| 8b | 520000528 | Latch |
| 8c | 710012319 | Battery Support |
| 8d | 278003012 | Starter Relay |
| 8f | 232561600 | Hex. Elastic Stop Nut M6 |
| 8g | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 8h | 219800617 | VCM Wet PROG & Grommet Kit |
| 8j | 710009090 | Vibration Damper |
| 8k | 710011806 | VCM Harness Protector |
| 8m | 710012399 | PBM Module |
| 8n | 250000750 | Torx Screw M4 X 16 |
| 8p | 232541484 | Elastic Stop Nut M4 |
| 8q | 234041480 | Flat Washer 4 mm |
| 8r | 710004940 | Horn |
| 8s | 710005769 | Horn Support |
| 8t | 250000874 | Torx Truss M8 X 25 |
| 8u | 233281414 | Hex. Flange Elastic Nut M8 |
| 8v | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 8w1 | 710002889 | Reverse Cable |
| 8w2 | 710011269 | Actuator |
| 8w3 | 232541414 | Elastic Stop Nut M4 |
| 8w4 | 205444056 | Socket Head Screw M4 X 40 |
| 8w5 | 390403000 | Pop Rivet 5/32 |
| 8w6 | 710010657 | Actuator Support |
| 8w7 | 270000141 | Clip |
| 8w8 | 293150293 | Pop Rivet 3/16 X ,425 |
| 8x | 210261650 | Hex. Flange Screw M6 X 16 |
| 8z | 207662054 | Hex. Flange Screw M6 X 20 |
| 2000 | 710008074 | Pos Cable |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561414 | Elastic Stop Nut M6 |
| 2250a | 207161444 | Hex. Screw M6 X 14 |
| 2250b | 710000393 | Protector Cap |
| 2250j | 710002945 | Battery Guard |
| 2250p | 710008102 | Fuse 80 A |
| 2250q | 710008098 | Fuse Holder Support |
| 2250r | 710008154 | Fuse Holder Cover |
| 2262 | 210261250 | Hex. Flange Screw M6 X 12 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 4065 | 293750083 | Cable Support |
| 4077 | 710004669 | Wire Support |
| 4090 | 710004794 | Harness Holder |
| 4095 | 293150230 | Tuflok Plastic Rivet |
| 5002 | 233081416 | Hex. Flange Nut M8 |
