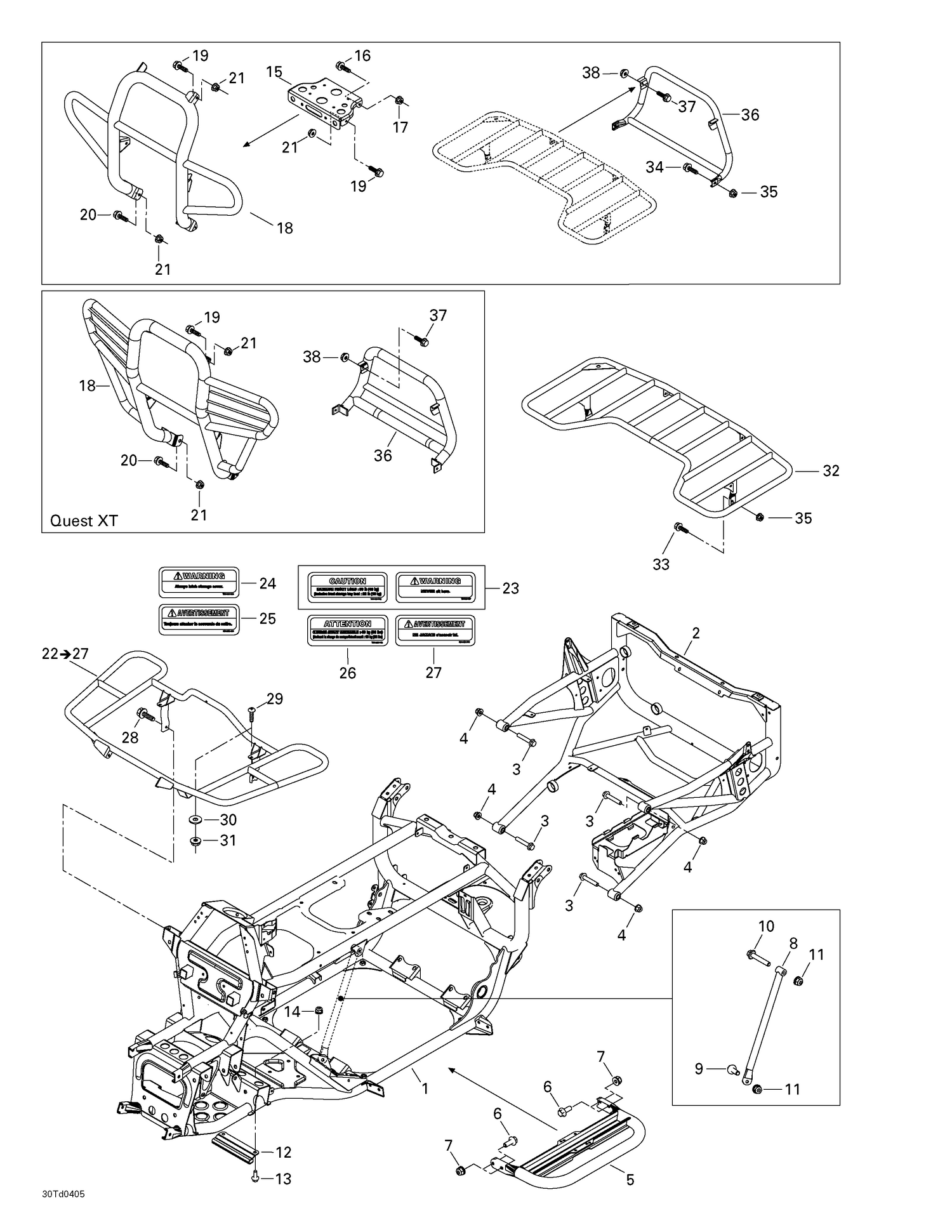

09- Frame And Luggage Racks
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200718 | Frame, Black |
| 2 | 705200546 | Frame Extension, Black |
| 3 | 207605544 | Hex. Flange Screw M10 X 55 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 5 | 705000610 | Footrest, Black |
| 6 | 207682044 | Hex. Flange Screw M8 X 20 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 705200404 | RH Removable Brace |
| 9 | 207682544 | Hex. Flange Screw M8 X 25 |
| 10 | 207685044 | Hex. Flange Screw M8 X 50 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 705200575 | Bracket, Black |
| 13 | 207661644 | Hex. Flange Screw M6 X 16 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 705200196 | WINCH LATCH, BLACK - Call your local BRP dealership |
| 16 | 207682044 | Hex. Flange Screw M8 X 20 |
| 17 | 233281414 | Hex. Flange Elastic Nut M8 |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 28 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 29 | 250000035 | TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 30 | 224060201 | Flat Washer |
| 31 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 32 | 705000784 | Rear luggage rack |
| 33 | 207682044 | Hex. Flange Screw M8 X 20 |
| 34 | 207685044 | Hex. Flange Screw M8 X 50 |
| 35 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 207682046 | Hex. Flange Screw M8 X 20 |
| 705200405 | Croisillon | Amovible Gauche, Noir 705200405 |
| 705200405 | LH | Removable Brace 705200405 |
