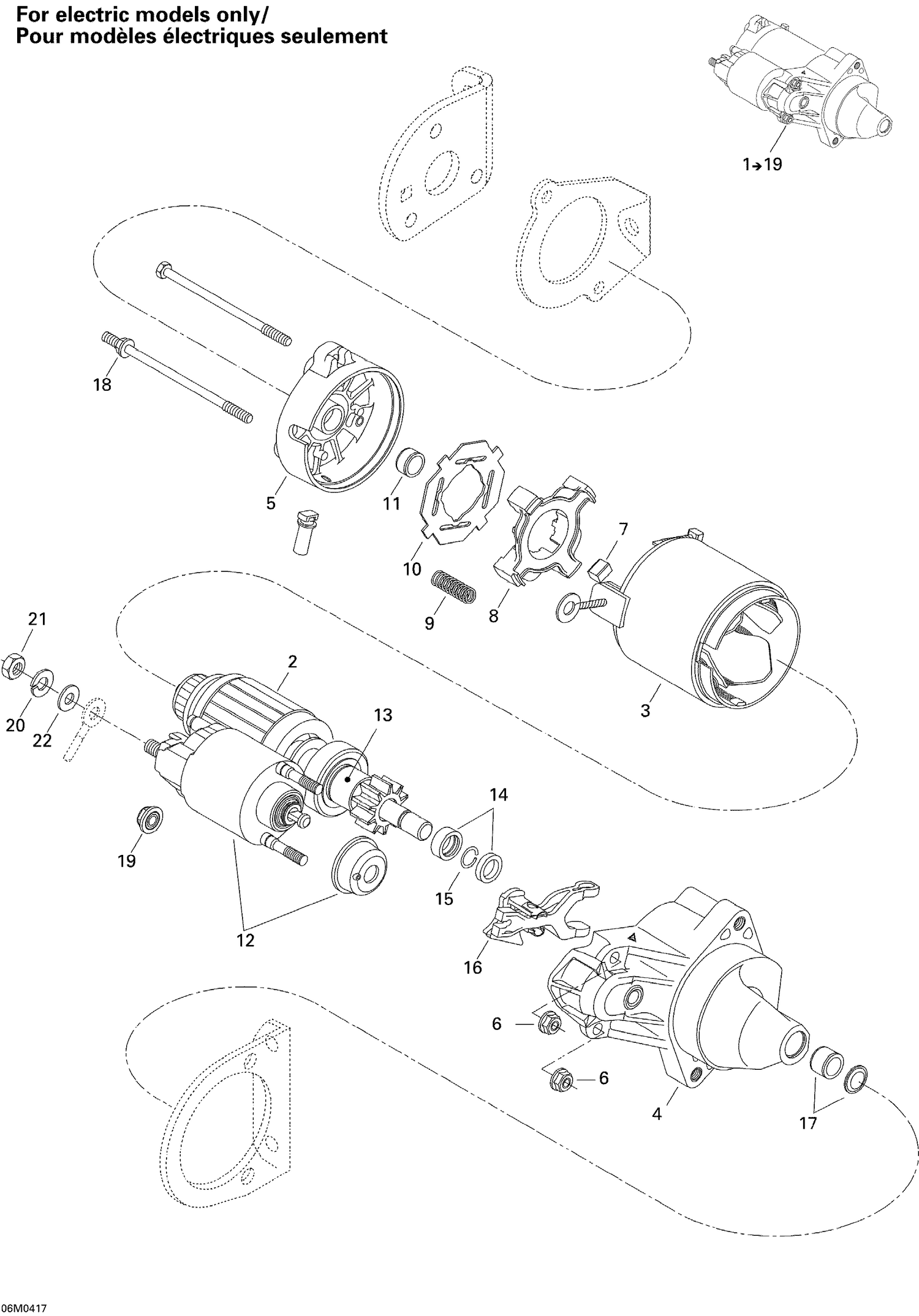

| Ref | Part Number | Description |
|---|
| 2 |
410210200 |
Armature Assy. |
| 3 |
410209500 |
HOUSING STARTER - Call your local BRP dealership |
| 4 |
410210800 |
Housing |
| 5 |
Not |
Available As Spare Part - Housing |
| 6 |
410211200 |
NUT - Call your local BRP dealership |
| 7 |
410209600 |
BRUSH - Call your local BRP dealership |
| 8 |
410209700 |
BRUSH HOLDER - Call your local BRP dealership |
| 9 |
410209800 |
BRUSH SPRING - Call your local BRP dealership |
| 10 |
410209900 |
INSULATOR - Call your local BRP dealership |
| 11 |
410210100 |
BRASS BUSHING - Call your local BRP dealership |
| 12 |
410210300 |
SWITCH ASSY. - Call your local BRP dealership |
| 13 |
410210400 |
STARTER CLUTCH - Call your local BRP dealership |
| 14 |
410212500 |
NUT - Call your local BRP dealership |
| 15 |
410212600 |
CIRCLIP - Call your local BRP dealership |
| 16 |
410210700 |
LEVER - Call your local BRP dealership |
| 17 |
410210900 |
BRASS BUSHING - Call your local BRP dealership |
| 18 |
410212000 |
BOLT - Call your local BRP dealership |
| 19 |
410211100 |
NUT - Call your local BRP dealership |
| 20 |
234181401 |
Lock Washer 8 mm |
| 21 |
M33003 |
NUT - Call your local BRP dealership |
