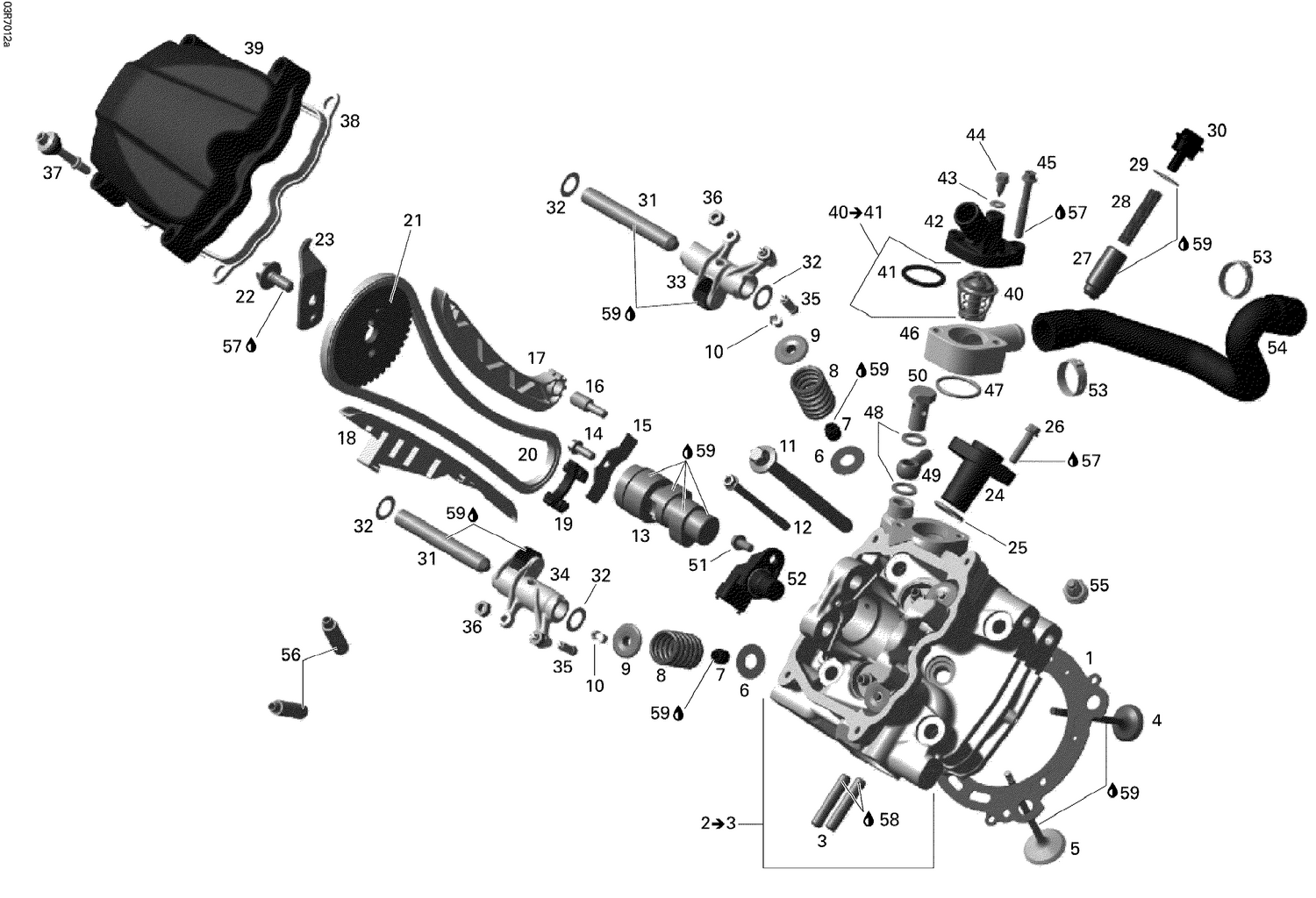

| Ref | Part Number | Description |
|---|
| 1 |
420630195 |
Cylinder Head Gasket |
| 3 |
420941014 |
Stud M8 x 26 |
| 4 |
420254359 |
Intake Valve This part replaces 420254351. |
| 5 |
420253171 |
EXHAUST VALVE, 27 MM This part replaces 420254361. |
| 6 |
420627525 |
Thrust Washer This part replaces 420627770. |
| 7 |
420230515 |
Valve Stem Seal |
| 8 |
420239295 |
Valve Spring |
| 9 |
420254132 |
Valve Spring Retainer |
| 10 |
420254120 |
Cotter Valve |
| 11 |
420641551 |
Torx Screw M10 X 140 This part replaces 420641550. |
| 12 |
420641228 |
Flanged Torx Screw M6 X 85 This part replaces 420440347. |
| 13 |
420620023 |
CAMSHAFT - Call your local BRP dealership |
| 14 |
420641048 |
Flanged Torx Screw M6 X 16 This part replaces 420440167. |
| 15 |
420627743 |
Holding Strip |
| 16 |
420240943 |
BEARING SCREW M6 This part replaces 420240942. |
| 17 |
420436015 |
Chain Tension Guide This part replaces 420236574. |
| 18 |
420236584 |
Chain Guide This part replaces 420236581. |
| 19 |
420236351 |
Chain Guide This part replaces 420236350. |
| 20 |
420297063 |
Silent Chain This part replaces 420297060. |
| 21 |
420254434 |
Camshaft Sprocket This part replaces 420254432. |
| 22 |
420241721 |
Hex Collar Screw M8 X 20 |
| 23 |
420664255 |
Camshaft Gear |
| 24 |
420236510 |
Chain Tensioner Housing |
| 25 |
420430373 |
O-Ring This part replaces 420430370. |
| 26 |
420641238 |
Flanged Torx Screw M6 X 25 This part replaces 420440237. |
| 27 |
420236521 |
Chain Tensioner Plunger This part replaces 420236520. |
| 28 |
420238120 |
Spring |
| 29 |
420250890 |
O-Ring |
| 30 |
420641150 |
Plug Screw |
| 31 |
420229712 |
Pin #12, Small, M6 X 90 This part replaces 420229711. |
| 32 |
420944382 |
Shim |
| 33 |
420254907 |
Rocker Arm Inlet This part replaces 420254406. |
| 34 |
420254911 |
Rocker Arm Exhaust This part replaces 420254416. |
| 35 |
420241337 |
Adjustment Screw M6 X 0.75 This part replaces 420241335. |
| 36 |
420242911 |
Hex. Nut M6 This part replaces 420242910. |
| 37 |
420440568 |
Hex. Distance Screw M6 X 30.5 This part replaces 420440567. |
| 38 |
420630260 |
Gasket |
| 39 |
420610393 |
Valve Cover This part replaces 420610390. |
| 41 |
420650300 |
Thermostat Gasket |
| 42 |
420222696 |
Thermostat Cover This part replaces 420222690. |
| 43 |
420650255 |
Gasket Ring |
| 44 |
420441621 |
Screw M5 X 16 This part replaces 420941950. |
| 45 |
420641198 |
Torx Flanged Screw M6 X 45 This part replaces 420440327. |
| 46 |
420222894 |
Connection Socket This part replaces 420222890. |
| 47 |
420631300 |
O-ring |
| 48 |
420250640 |
Copper Washer A 12X18-CU DIN 7603 |
| 49 |
420822380 |
HOSE NIPPLE - Call your local BRP dealership |
| 50 |
420641545 |
BANJO BOLT - Call your local BRP dealership |
| 51 |
420641048 |
Flanged Torx Screw M6 X 16 This part replaces 420440167. |
| 52 |
420664046 |
Camshaft Position Sensor Ass'y This part replaces 420664041. |
| 53 |
420251578 |
Clamp This part replaces 420251573. |
| 54 |
420822353 |
Water Tube This part replaces 420822350. |
| 55 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 56 |
420254374 |
Valve Guide This part replaces 420254370. |
| 57 |
293800060 |
Loctite 243, 10 ml |
| 58 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
