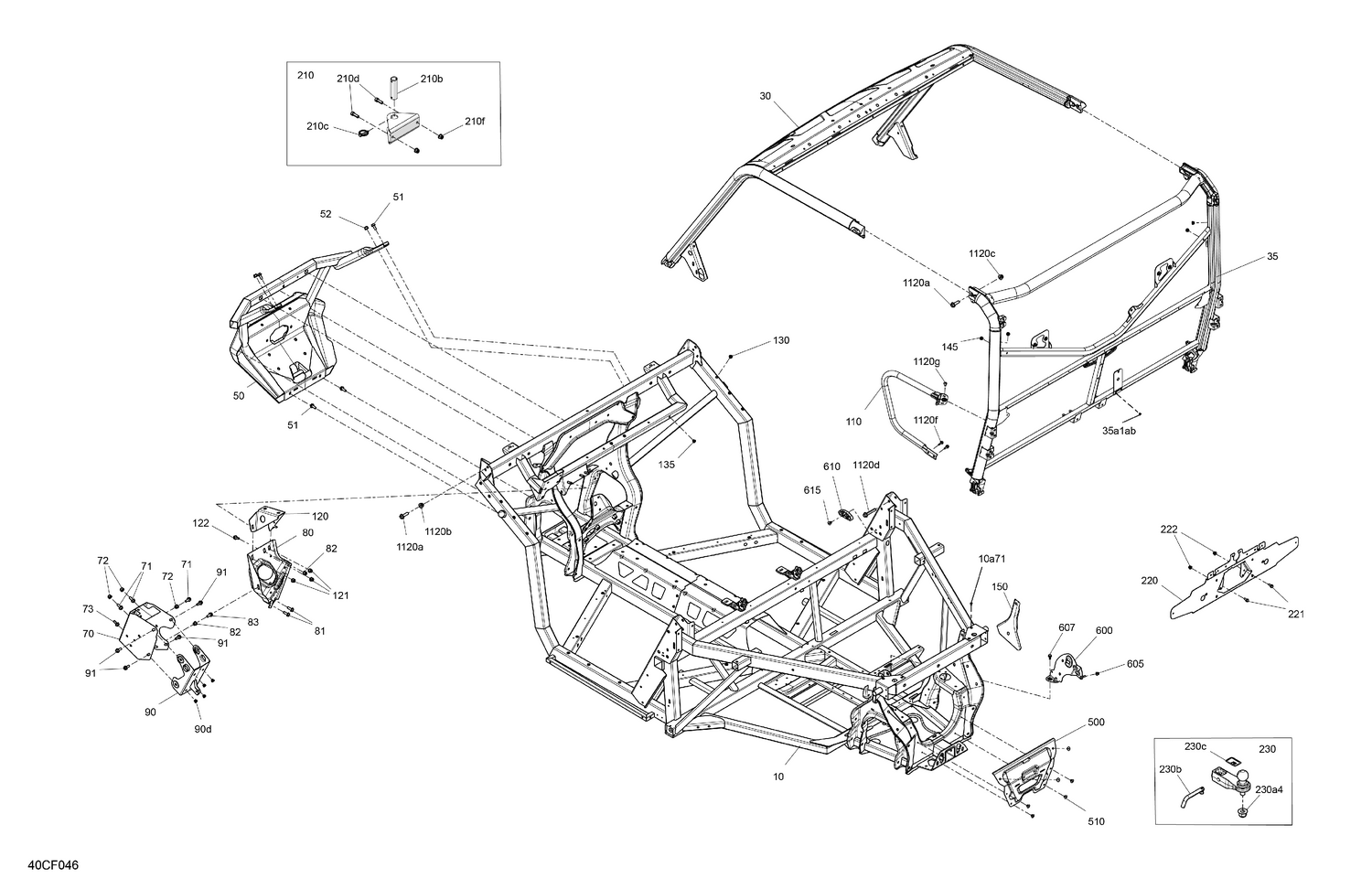

| Ref | Part Number | Description |
|---|
| 10 |
715011188 |
Deep Black, Chassis Kit |
| 10a71 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 30 |
715008424 |
Front Cage Ass'y |
| 35a1ab |
293150293 |
Pop Rivet 3/16 X ,425 |
| 50 |
705207588 |
Deep Black, Front Bumper |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 70 |
705212644 |
Module Support |
| 71 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 73 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 |
705208740 |
Support |
| 81 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 83 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 90d |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 91 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 110 |
705210930 |
Deep Black, RH Guard |
| 120 |
705211549 |
Module Support |
| 121 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 122 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 145 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 150 |
705014849 |
Heat Shield |
| 210b |
705211696 |
Deep Black, Tube |
| 210c |
605456518 |
Pin |
| 210d |
205003044 |
Socket Screw M10 x 30 |
| 210f |
233201414 |
Hex. Flange Elastic Nut M10 |
| 220 |
705014656 |
Licence Plate Support |
| 221 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 222 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 230a4 |
250100104 |
Elastic Flange Nut M20 |
| 230b |
705204490 |
Hitch Pin |
| 230c |
704906897 |
Hitch Approval Decal |
| 500 |
705207753 |
Rear Chassis Reinforcement |
| 510 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 600 |
710009484 |
Voltage Regulator Support |
| 605 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 607 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 |
705208203 |
Spacer |
| 615 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1120a |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1120b |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1120c |
233201466 |
Flange Elastic Nut M10 |
| 1120d |
207606046 |
Hex. Flange Screw M10 X 6 |
| 1120f |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
