Parts Catalog

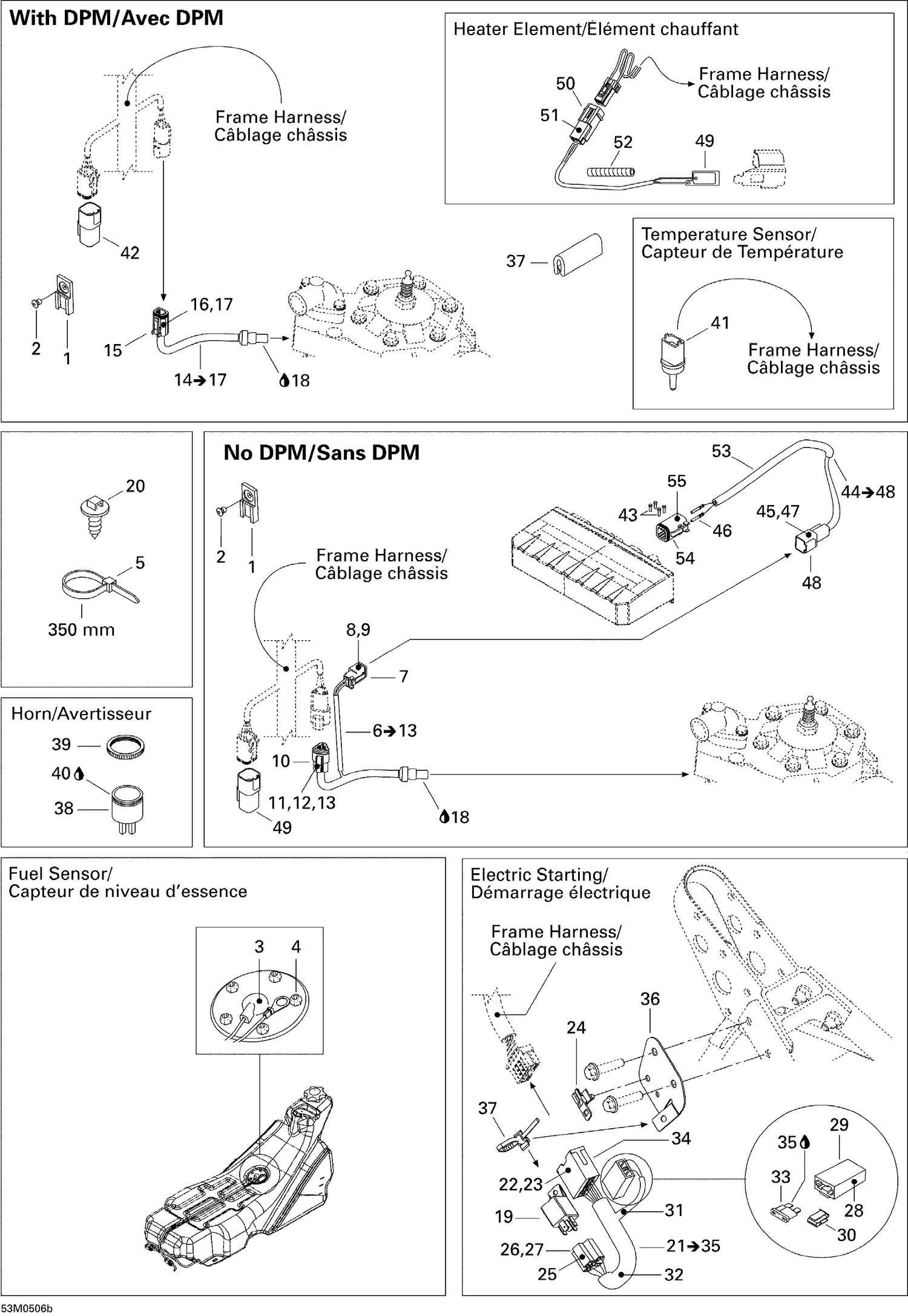

10- Electrical Accessories 2 (800HO)

Parts (43)

Ref	Part Number	Description
1	270000141	Clip This part replaces 515175917.
2	293150037	Avdel Rivet 3/16"
5	293750008	Tie Wrap 368 mm
6	XXX	Not Available As Spare Parts
7	XXX	Not Available As Spare Parts
8	XXX	Not Available As Spare Parts
9	XXX	Not Available As Spare Parts
10	XXX	Not Available As Spare Parts
11	XXX	Not Available As Spare Parts
12	XXX	Not Available As Spare Parts
13	XXX	Not Available As Spare Parts
15	278000739	Male Connector, 4 Circuits
16	278000632	Female Terminal
17	515175677	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
18	219704455	Was 293800018 Loctite 592, 50 ml
19	710010053	Relay This part replaces 410113200.
20	293730040	Mount Dart This part replaces 293730018.
22	515175232	Male Terminal
23	515175273	MALE TERMINAL - Call your local BRP dealership
24	515175283	Housing Support
25	409209900	Female Housing, 5 Circuits
26	561503100	FEMALE TERMINAL - Call your local BRP dealership
27	561503100	FEMALE TERMINAL - Call your local BRP dealership
28	409011600	Female Terminal
29	409004000	Fuse Holder
30	409014200	CLIP - Call your local BRP dealership
31	219704425	Tubing 6 Mm 3000Mm Long
32	219704400	Was 409901800 Tubing (13 mm)
33	278000344	Fuse, 5 Amperes
34	515175720	MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
35	219704453	Was 293550004 Dielectric Grease, 150 g
36	515176020	HARNESS SUPPORT - Call your local BRP dealership
38	515176035	HORN - Call your local BRP dealership
39	414805101	PLASTIC NUT - Call your local BRP dealership
40	296000309	Silicone Sealant 51388, 300 ml
43	XXX	Not Available As Spare Parts
44	XXX	Not Available As Spare Parts
45	XXX	Not Available As Spare Parts
46	XXX	Not Available As Spare Parts
47	XXX	Not Available As Spare Parts
48	XXX	Not Available As Spare Parts
53	XXX	Not Available As Spare Parts
54	XXX	Not Available As Spare Parts
