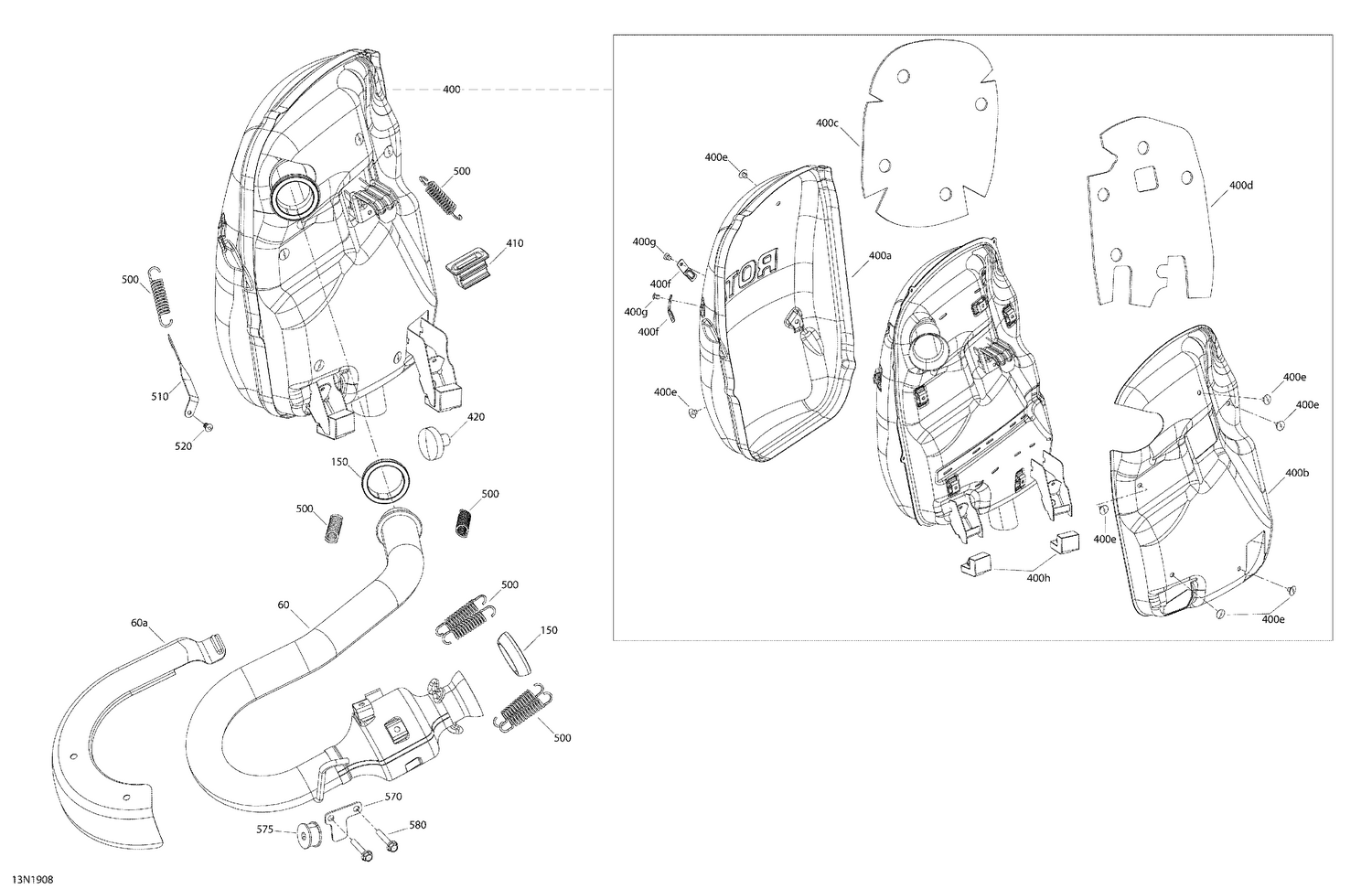

01- Exhaust - 900 ACE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 60a | 514054397 | Exhaust Deflector |
| 60b | 293150173 | Rivet 6,4 mm |
| 60c | 293650036 | Tridon Clamp |
| 150 | 707601033 | Exhaust Gasket |
| 400a | 514055325 | RH Heat Shield |
| 400b | 514055128 | LH HEAT SHIELD - Call your local BRP dealership |
| 400c | 514054769 | RH Insulating Wool |
| 400d | 514054881 | LH Insulating Wool |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054522 | Spring Bracket |
| 400g | 390909200 | Avex Rivet |
| 400h | 514054529 | Lower Stopper |
| 410 | 514054346 | Stopper |
| 420 | 514053654 | Rubber Bumper |
| 500 | 415107100 | Spring |
| 510 | 514055317 | Spring Bracket |
| 520 | 390909100 | Avex Rivet |
| 570 | 514054939 | Support |
| 575 | 707600702 | Anti-Vibration Rubber |
