Home / BRP / JOHNSON / 1980 / 150 / J150TLCSF 1980 / MOTOR COVER

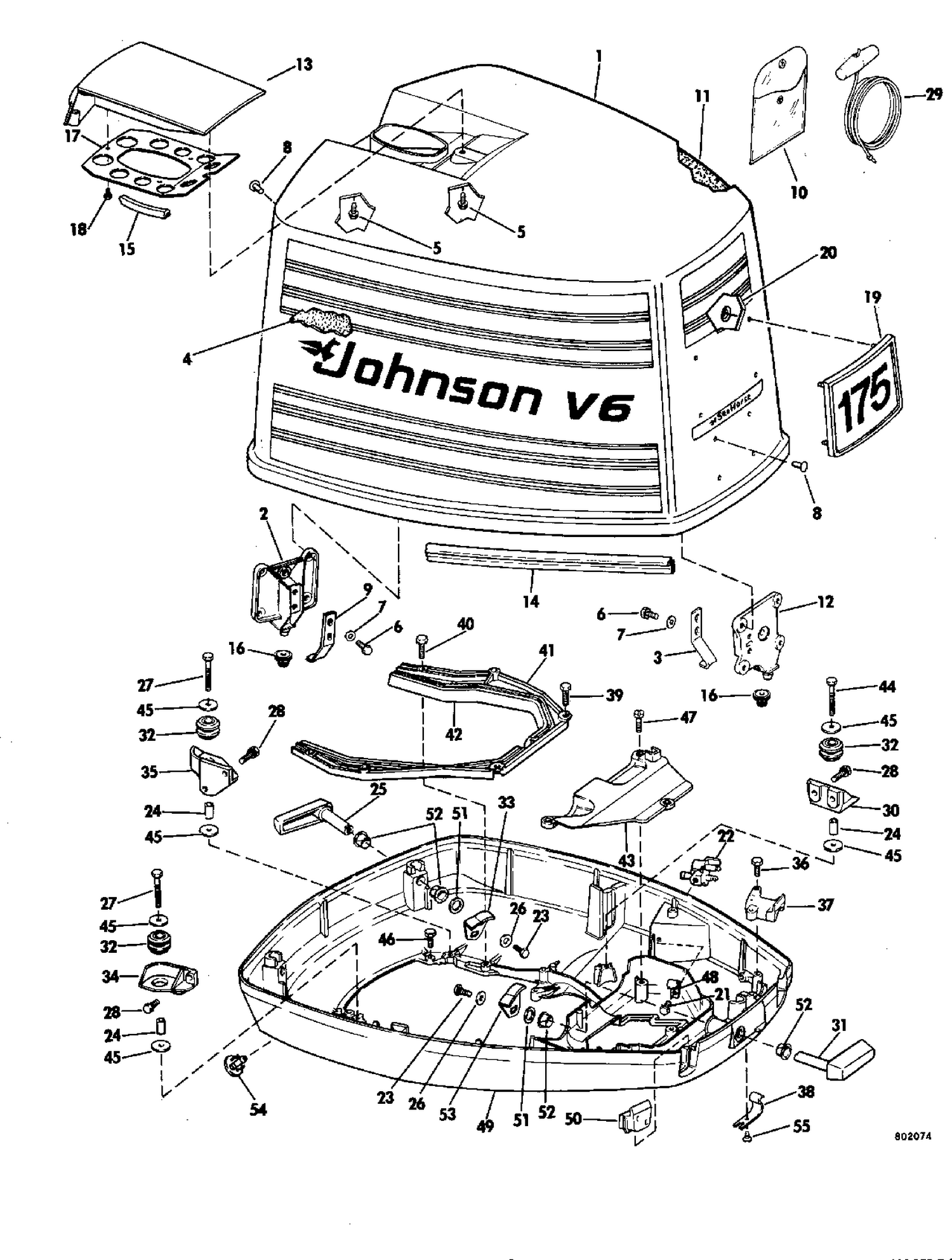

MOTOR COVER

MOTOR COVER

Parts (52)

RefPart NumberDescription
1 0390212 MOTOR COVER ASSY.,150
1 0390213 MOTOR COVER ASSY.,175
1 0390214 MOTOR COVER ASSY.,200
1 0390918 MOTOR COVER ASSY.,235
2 0394976 LOCATING BRACKET, Rear This part replaces 0389972.
3 0323175 HOOK , Motor Cover, Front
4 0325172 SOUND BLANKET, Side
7 0306407 LOCCKWASHER,Cover latch
10 0314494 BAG EMERGENCY STARTER ROPE
11 0321256 SOUND BLANKET, Top
12 0389971 LOCATING BARCKET, Front
14 0328686 SEAL, Engine cover This part replaces 0324413.
17 0206520 AIR INLET BAFFLE
19 0390373 APPLIQUE,Front,150
19 0390374 APPLIQUE,Front,175
19 0390376 APPLIQUE,Front,200
19 0390378 APPLIQUE,Front,235
21 0325857 SCREW, Fuel connector
22 0393334 CONNECTEUR, carburant - mâle This part replaces 0376154.
23 0552062 SCREW, Clamp
24 0302406 SLEEVE
25 0383685 LATCH HANDEL ASSY., Rear
27 0303398 VIS, support This part replaces 0302030.
28 0328695 CLAMP, Engine cable This part replaces 0323480.
29 0378347 CORDE DE LANCEUR
30 0315111 SUPPORT, Front
31 0383641 LATCH HANDEL ASSY., Front
32 0316354 ENGINE COVER SUPPORT GROMMET
33 0323169 HOOK, Lower rear port
34 0315113 SUPORT, Stbd, rear
35 0315112 SUPPORT, Port rear
36 0307151 SCREW
37 0318849 CLAMP, Instrument cable
38 0333739 RETAINER, Fuel hose to cover This part replaces 0318313.
39 0328695 CLAMP, Engine cable This part replaces 0323480.
40 0302288 BOLT
41 0392494 FRAME AND SEAL ASSY This part replaces 0387443.
42 0318258 SEAL Cover
43 0328358 COVER ASSY. Air entrance This part replaces 0326251.
44 0303398 VIS, support This part replaces 0302030.
46 0328695 CLAMP, Engine cable This part replaces 0323480.
47 0328695 CLAMP, Engine cable This part replaces 0323480.
49 0434288 ENGINE COVER, Lower This part replaces 0389591.
50 0320834 GROMMET
53 0323170 HOOK Front and stbd., rear
55 0390372 DECAL SET,150 models with "R" suffix
55 0391623 DECAL SET, 150 models with "F" suffix
0390375 0390375 DECAL SET, 175,models with "A" suffix
0390377 0390377 DECAL SET,200 models with "M" suffix
0390379 0390379 DECAL SET,235 only
0391624 0391624 DECAL SET,175 models with "F" suffix
0391625 0391625 DECAL SET,200 models with "F" suffix
