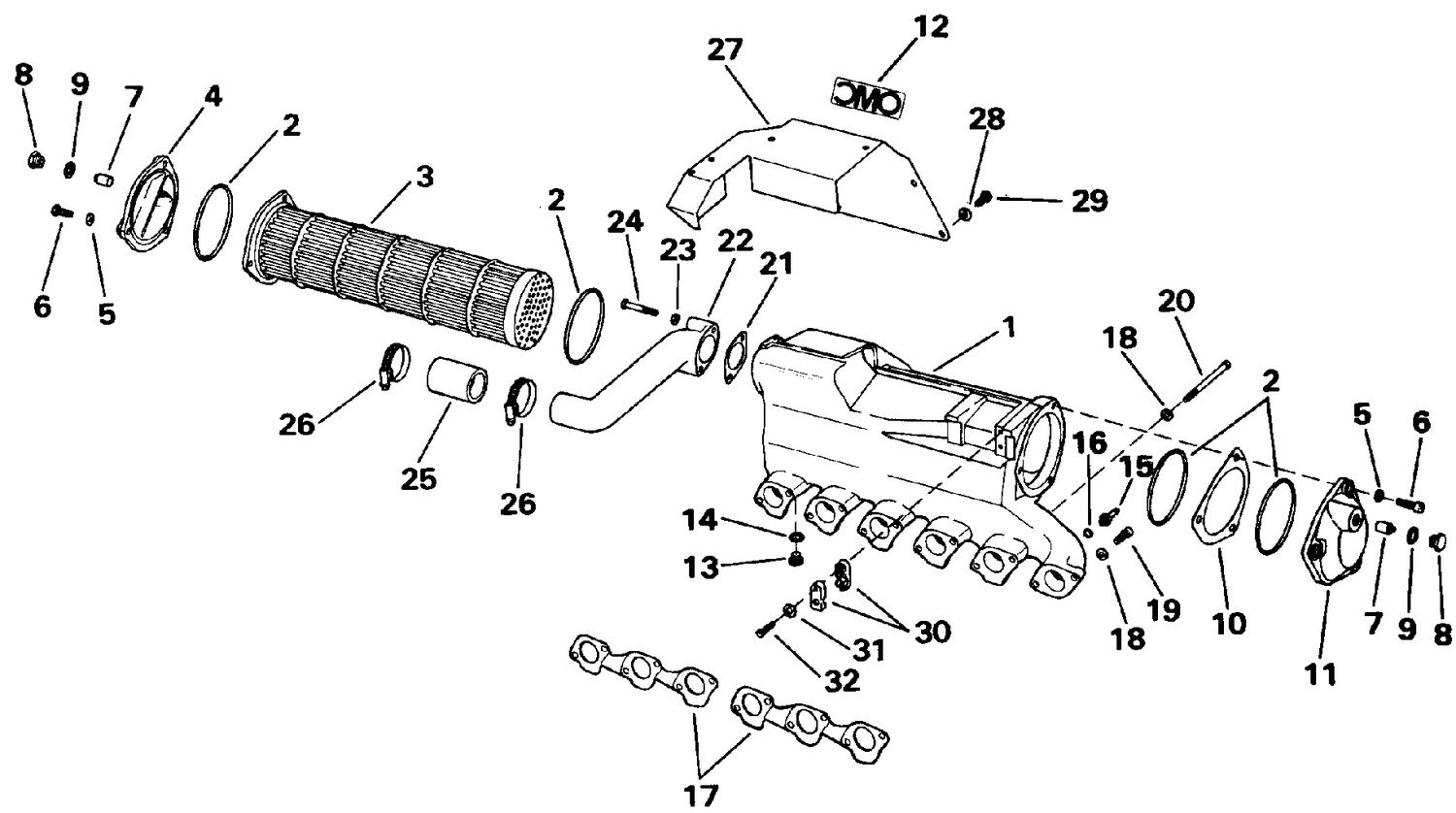

| Ref | Part Number | Description |
|---|
| 1 |
0987385 |
INTERCOOLER HSG. |
| 2 |
0915520 |
SEAL, Heat exchanger, intercooler |
| 3 |
0987386 |
HEAT EXCHANGER, Intercooler |
| 4 |
0915521 |
COVER, Intercooler, rear |
| 5 |
0915501 |
WASHER, Block |
| 6 |
0916027 |
BOLT, Cover, intercooler |
| 7 |
0915523 |
ZINC ANODE |
| 8 |
0915525 |
PLUG, Zinc anode |
| 9 |
0915524 |
SEAL, Plug, zinc anode |
| 10 |
0915526 |
SPACER, Intercooler, front cover |
| 11 |
0915527 |
COVER, Intercooler, front |
| 12 |
0915275 |
DECAL |
| 13 |
0915687 |
PLUG, Intercooler drain |
| 14 |
0915567 |
SEAL, Banjo, fuel line |
| 15 |
0915530 |
HOSE FITTING, Intercooler boost |
| 16 |
0915529 |
SEAL, Banjo, turbo, coolant bleed |
| 17 |
0915531 |
GASKET, Intercooler manifold |
| 18 |
0915501 |
WASHER, Block |
| 19 |
0915502 |
BOLT, Flywheel housing, small |
| 20 |
0915532 |
BOLT, Intercooler, long |
| 21 |
0915533 |
GASKET, Charge piping |
| 22 |
0915534 |
CHARGE PIPING |
| 23 |
0915501 |
WASHER, Block |
| 24 |
0915535 |
BOLT, Charge piping |
| 25 |
0915536 |
HOSE, Charge piping |
| 26 |
0915515 |
CLAMP, Hose, charge piping |
| 27 |
0915537 |
HEAT SHIELD, Intercooler |
| 28 |
0916024 |
WASHER, Heat shield, intercooler |
| 29 |
0915451 |
BOLT, Clamp, pipe to heat exchanger |
| 30 |
3852836 |
ANCHOR BLOCK This part replaces 0913795. |
| 31 |
0915470 |
WASHER, Clamp to heatshield |
| 0987384 |
0987384 |
INTERCOOLER |
