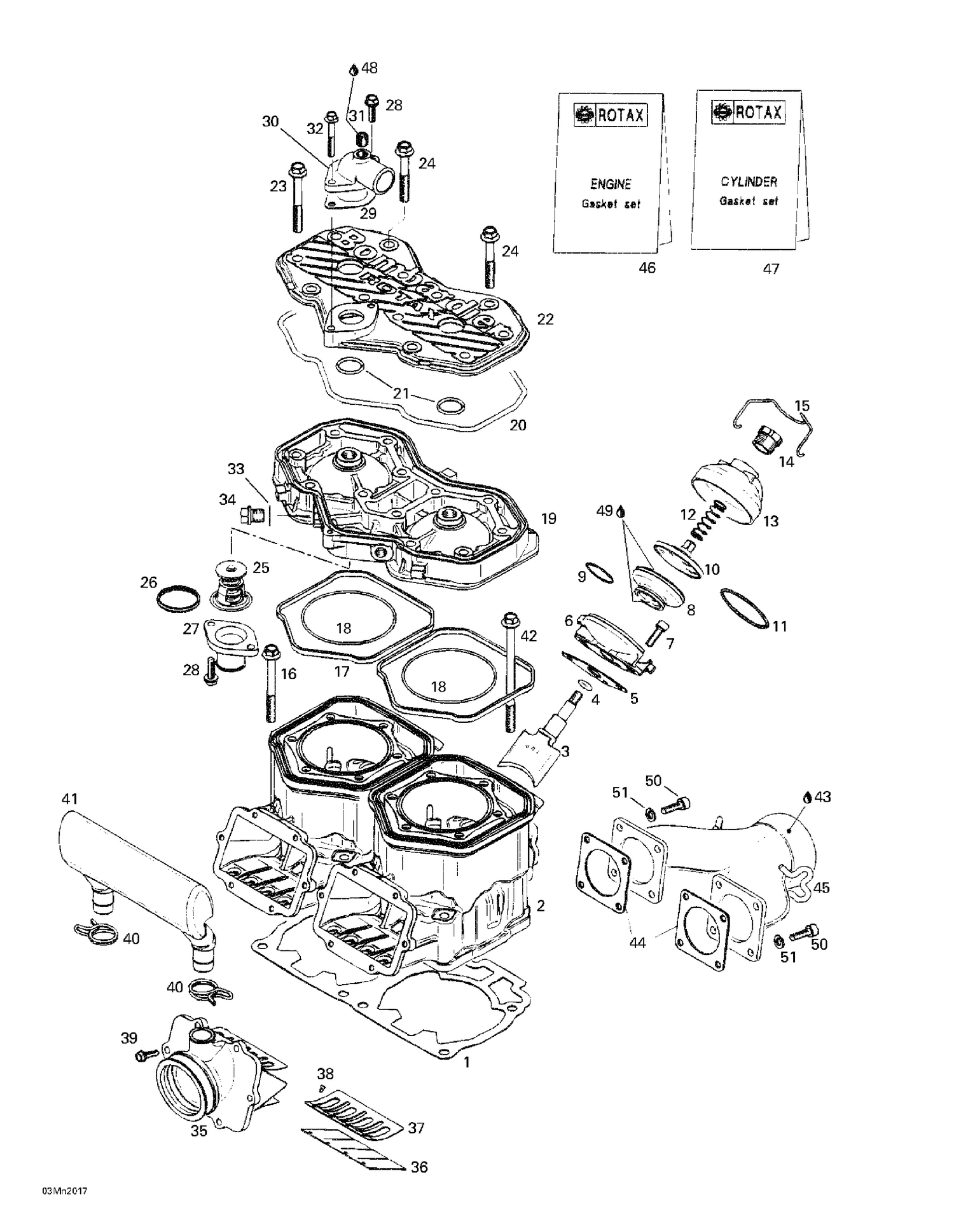

| Ref | Part Number | Description |
|---|
| 3 |
420854330 |
EXHAUST VALVE - Call your local BRP dealership |
| 4 |
420430110 |
O-Ring |
| 5 |
420250239 |
Gasket |
| 6 |
420854265 |
Valve Housing |
| 7 |
205062044 |
Socket Head Screw M6 X 20 |
| 8 |
420260723 |
Exhaust Bellows |
| 9 |
420838255 |
Hose Spring This part replaces 420838253. |
| 10 |
420854449 |
Exhaust Valve This part replaces 420854447. |
| 11 |
420939281 |
Hose Spring This part replaces 290239048. |
| 12 |
420239954 |
Spring This part replaces 420239944. |
| 13 |
420911552 |
Valve Cover This part replaces 420911551. |
| 14 |
420241221 |
Adjuster Screw This part replaces 420241220. |
| 15 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 420838082. |
| 17 |
420931590 |
Rubber Ring |
| 18 |
420931840 |
O-RING - Call your local BRP dealership |
| 19 |
420923455 |
Cylinder Head (Silver) |
| 20 |
420950320 |
O-Ring |
| 21 |
420430782 |
O-Ring |
| 22 |
420923465 |
CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460. |
| 23 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 24 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 25 |
420922519 |
Thermostat This part replaces 420922515. |
| 26 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 27 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 28 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 29 |
420850339 |
Gasket This part replaces 420850338. |
| 30 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 31 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 32 |
420941451 |
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership |
| 33 |
420250016 |
Aluminum Sealing Ring This part replaces 420250015. |
| 34 |
420841924 |
Plug screw This part replaces 420841921. |
| 36 |
420924680 |
Reed Pedal |
| 37 |
420924695 |
Reed Pedal Stop This part replaces 420924692. |
| 38 |
420941215 |
Phillips Screw M3 X 5 |
| 39 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 40 |
420851440 |
CLAMP - Call your local BRP dealership |
| 41 |
420867815 |
Intake Resonator |
| 43 |
293800090 |
Sealant, Loctite, 80 ml This part replaces 413710300. |
| 44 |
420850552 |
Gasket |
| 48 |
293800060 |
Loctite 243, 10 ml |
| 49 |
413707000 |
Dow Corning 111, 150 g |
| 50 |
205062544 |
Socket Head Screw M6 X 25 |
