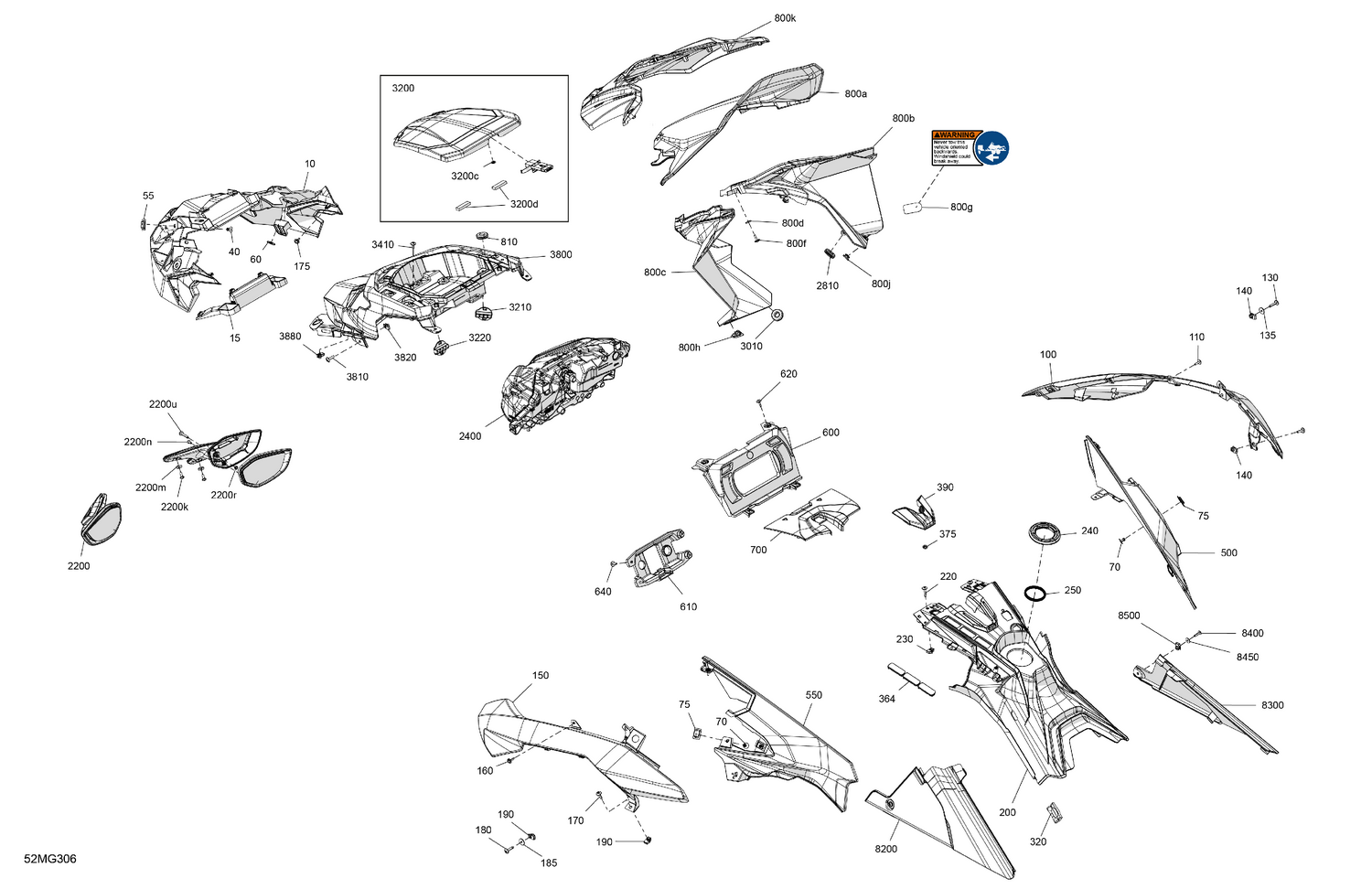

07- Body - Hood
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517308030 | Center Hood |
| 15 | 517308961 | Central Duct |
| 40 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 70 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 75 | 517305109 | Rivet Plate |
| 100 | 517309163 | RH Front Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 517307442 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 150 | 517309164 | LH Front Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 175 | 250000725 | Screw M4 X 16 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 517307442 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517309672 | Rear Console |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517309824 | Round Slotted Nut |
| 250 | 517309450 | Gasket |
| 320 | 517309575 | Weather Strip |
| 364 | 517309586 | Body Cap |
| 375 | 250100163 | Pressure Nut |
| 390 | 517309557 | Connecting Plate |
| 500 | 517309944 | RH Hood |
| 550 | 517310075 | LH Hood |
| 600 | 517307734 | Gauge Support |
| 610 | 515179104 | Gauge Support |
| 620 | 250000889 | Screw M4 X 16 |
| 640 | 250000725 | Screw M4 X 16 |
| 700 | 517308427 | Access Cover |
| 800a | 517309564 | Windshield 600 Mm |
| 800b | 517308791 | RH Wide Air Deflector |
| 800c | 517308792 | LH Wide Air Deflector |
| 800d | 517306524 | Rubber Washer 4 MM |
| 800f | 250000889 | Screw M4 X 16 |
| 800g | 516013311 | Winshield Warning Label |
| 800h | 517308989 | RH Stopper |
| 800j | 517308990 | LH Stopper |
| 800k | 517309951 | Windshield Support Long |
| 810 | 517303756 | Grommet |
| 2200k | 250000742 | Torx Screw M5 X 14 |
| 2200m | 250200024 | Rubber Washer 5 mm |
| 2200n | 250000577 | Torx Truss Screw K40 X 12 |
| 2200r | 232551414 | Elastic Stop Nut M5 |
| 2200u | 250000732 | Torx Screw Nylon |
| 2400 | 517309060 | Headlight Ass'y |
| 2810 | 517303756 | Grommet |
| 3010 | 517303756 | Grommet |
| 3200c | 732610072 | Push Nut |
| 3200d | 517308246 | Joint Seal |
| 3210 | 517308260 | Box Cap |
| 3220 | 517308260 | Box Cap |
| 3410 | 250000889 | Screw M4 X 16 |
| 3800 | 517308377 | Upper Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3880 | 250000958 | Panel Nut M5 X 0.8 |
| 8200 | 517309440 | LH Chassis Trim |
| 8300 | 517309442 | RH Chassis Trim |
| 8400 | 250000715 | Torx Truss Screw M5 X 20 |
| 8450 | 234052670 | Stainless Steel Flat Washer M5 |
