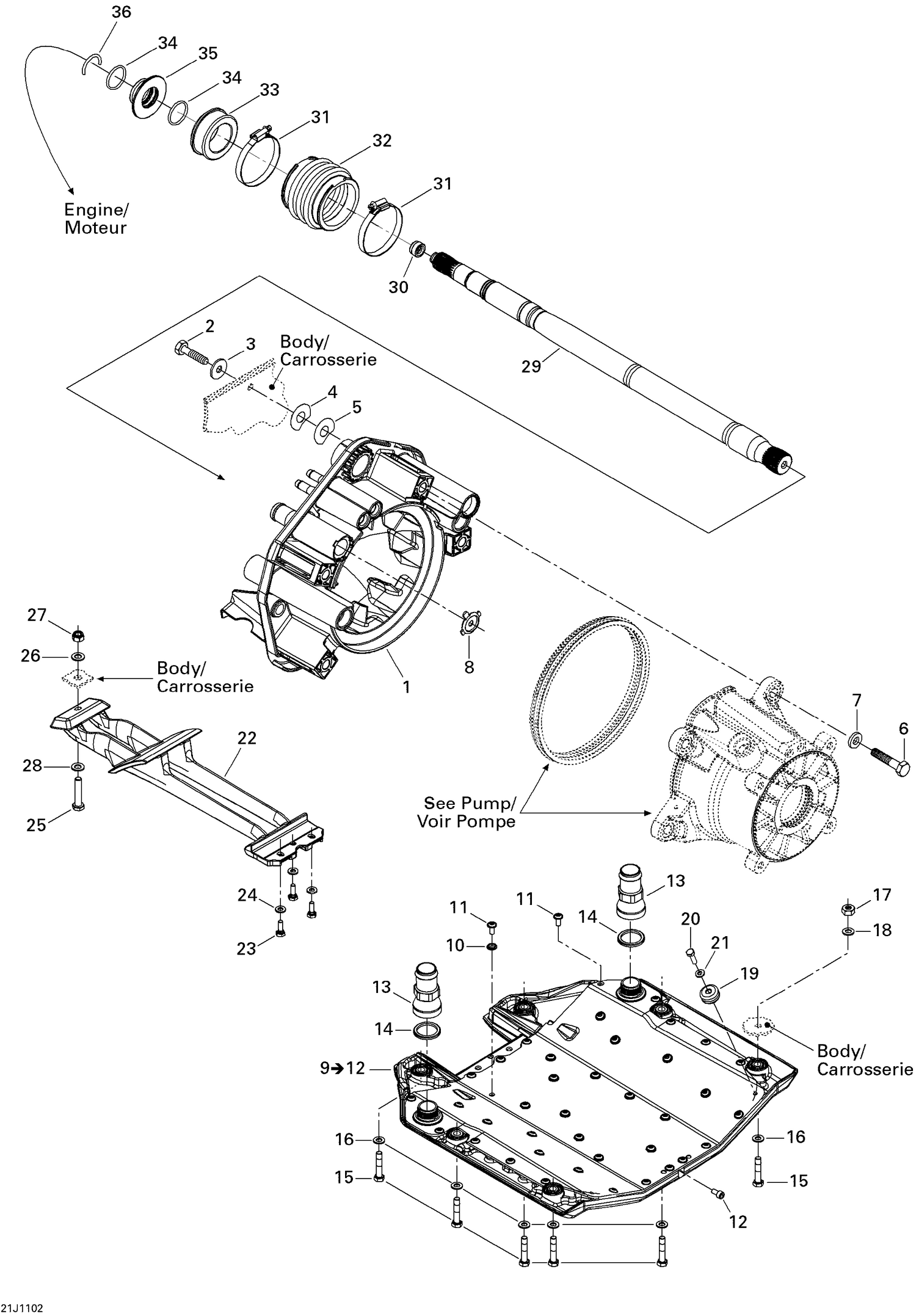

05- Propulsion
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204120384 | PUMP SUPPORT - Call your local BRP dealership |
| 2 | 250000189 | HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership |
| 3 | 234002600 | Flat Washer 10 mm, Stainless |
| 4 | 272000053 | Shim 0.3 mm |
| 5 | 0460011 | NEEDS DESCRIPTION This part replaces 204120067. |
| 6 | 250000188 | HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership |
| 7 | 211200051 | Flat Washer |
| 8 | 271002029 | Reducer, Green This part replaces 271001586. |
| 10 | 250200114 | Sealing Washer This part replaces 250200106. |
| 11 | 250000384 | Torx Screw M6 X 14 |
| 12 | 250500005 | Socket Drain Plug M6 X 12 |
| 13 | 293710111 | Straight Plastic Fitting |
| 14 | 293300121 | O-Ring |
| 15 | 207084060 | Hex. Screw M8 X 40 |
| 16 | 234081600 | Stainless, Flat Washer 8 mm |
| 17 | 232581600 | Hex. Elastic Nut M8 |
| 18 | 234082600 | Flat Washer 8 mm, Stainless |
| 19 | 271001813 | Anode Zinc This part replaces 271001487. |
| 20 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 21 | 234061600 | Stainless Flat Washer M6 |
| 22 | 271001582 | PUMP GRATE - Call your local BRP dealership |
| 23 | 207161660 | Hex. Screw M6 X 16 |
| 24 | 234061600 | Stainless Flat Washer M6 |
| 25 | 207184060 | Hex. Screw M8 X 40 |
| 26 | 234081600 | Stainless, Flat Washer 8 mm |
| 27 | 232581600 | Hex. Elastic Nut M8 |
| 28 | 234081600 | Stainless, Flat Washer 8 mm |
| 29 | 204120309 | Drive Shaft |
| 30 | 272000173 | Drive Shaft Plug |
| 31 | 293650077 | Norma Clamp |
| 32 | 272000183 | Bellows |
| 33 | 295501200 | Carbon Ring Kit This part replaces 272000177. |
| 34 | 293300044 | O-Ring |
| 35 | 295501200 | Carbon Ring Kit This part replaces 272000176. |
