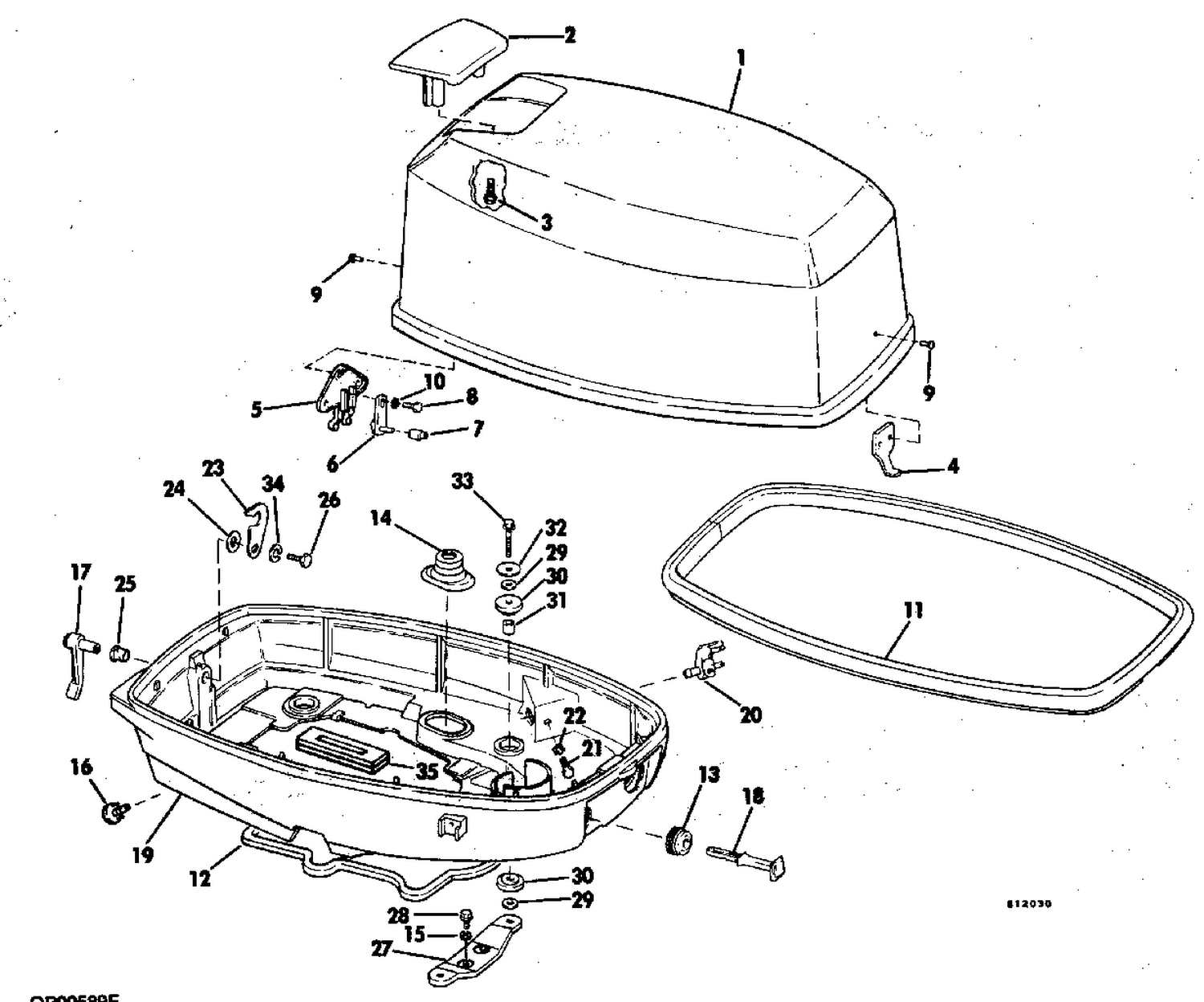

| Ref | Part Number | Description |
|---|
| 1 |
0281637 |
MOTOR COV. ASSY. EVINRUDE |
| 4 |
0320400 |
HOOK, Engine cover |
| 6 |
0384332 |
LIDE & PIN |
| 8 |
0302468 |
SCREW, Ground lead |
| 12 |
0320158 |
SEAL, Housing to cover |
| 13 |
0204457 |
GOMMET, Choke knob |
| 14 |
0304019 |
CROMMET, CONTROL SHAFT |
| 15 |
3854292 |
LOCK WASHER, Screw to hsg. This part replaces 0304145. |
| 16 |
0321885 |
NIPPLE |
| 17 |
0321318 |
HANDLE, Latch |
| 18 |
0321719 |
KNOB, Choke |
| 19 |
0433392 |
ENGINE COVER, Lower This part replaces 0390206. |
| 20 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 21 |
0552062 |
SCREW, Clamp |
| 25 |
0553769 |
BUSHING |
| 26 |
0306487 |
SCREW |
| 27 |
0325868 |
BRACKET, Cove to exh. hsg., front |
| 28 |
0306487 |
SCREW |
| 29 |
0329241 |
RONDELLE This part replaces 0306482. |
| 30 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 31 |
0302406 |
SLEEVE |
| 32 |
0203622 |
WASHER |
| 33 |
0329240 |
SCREW This part replaces 0314451. |
| 34 |
0306407 |
LOCCKWASHER,Cover latch |
| 35 |
0325327 |
GROMMET, Actuator cam |
| 0209015 |
0209015 |
OWNER'S MANUAL, Evinrude |
| 0281638 |
0281638 |
DECAL SET, Evinrude |
